Úvod   Routery   Routerboardy   MikroTik RB5009UPr+S+OUT

MikroTik RouterBOARD RB5009UPr+S+OUT, 4x 1,4 GHz, 7x Gbit PoE LAN, 1x 2,5 Gbit PoE LAN, USB 3.0, SFP+, L5

hodnotit
7 769 CZK 6 421 CZK bez DPH

Skladem K odeslání

Kód: NABMKR1194 PN: RB5009UPr+S+OUT Záruka: 26 months
Výrobce: MIKROTIK
MikroTik RB5009UPr+S+OUT An outdoor version of our best-selling heavy-duty PoE router. Extensive power redundancy for the best price! 7× Gigabit Ethernet ports, 1× 2.5 Gigabit Ethernet, 1× 10G SFP+, 1GB of RAM, 1GB NAND,... více
Počet:
Přidat do košíku

Oblíbené
Porovnat
Tisknout
Poslat známému

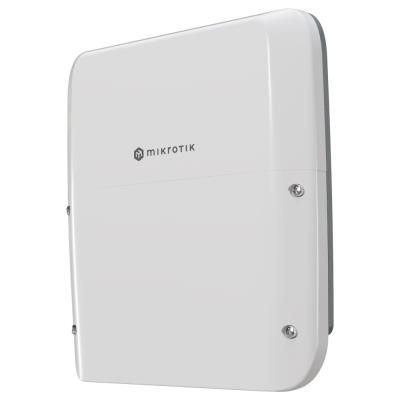

MikroTik RB5009UPr+S+OUT

An outdoor version of our best-selling heavy-duty PoE router. Extensive power redundancy for the best price!
7× Gigabit Ethernet ports, 1× 2.5 Gigabit Ethernet, 1× 10G SFP+, 1GB of RAM, 1GB NAND, modern quad-core CPU, 9 (!) powering options, durable IP67 waterproof enclosure.

As a network administrator, you never know when the next windstorm, lightning, flood, heatwave, or a power outage will strike. But with the right tools you can protect your network from most troubles! Here’s our wishlist for the perfect tool:

  • Easy to deploy
  • Works well in ANY weather
  • Provides extensive power redundancy
  • Can be connected via most common networking interfaces
  • Has a CPU that is strong enough to take full advantage of the most powerful
  • Networking software in the world – RouterOS v7
  • Doesn’t cost a fortune

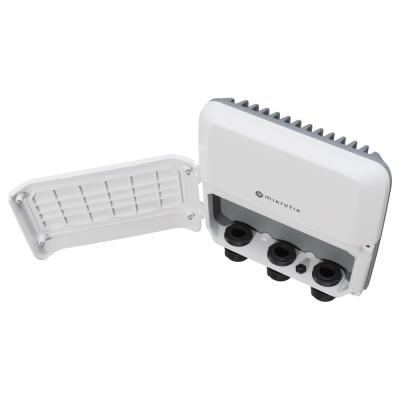

Adding an IP67-rated waterproof enclosure to the RB5009 series allowed us to meet all the requirements! The brand new RB5009UPr+S+OUT is a compact, cost-effective solution that will revolutionize your network tower setups. You’re getting one of the most powerful outdoor networking devices for the best price on the market!

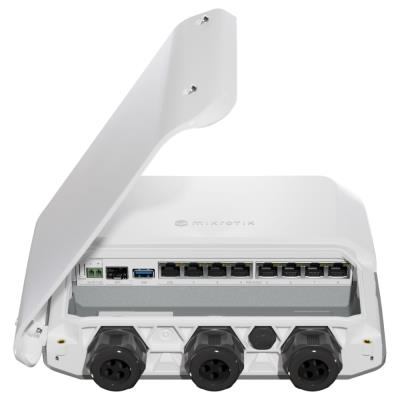

Like the indoor version, this RB5009 has 7× Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, a 10G SFP+ cage, and a full sized USB3 port!

When we say “extensive power redundancy”, we really mean it: the unit offers 9 possible ways of powering. There’s a 2-pin power connector on the front, as well as PoE-in and PoE-out on all eight Ethernet ports. The board can use any of these sources to power itself, choosing the one with the highest voltage when multiple sources are available. RB5009 takes up to 21W to power itself. If you’re using PoE-in, the board will stay on even if 8 of your 9 power sources suddenly go down. Unprecedented redundancy!

All power options support a wide voltage range of 24–57 V. However, you can not mix the voltages.

Each PoE-out port can supply up to 25 W of power. All the ports combined are limited to 130W, which should be enough for most setups. You can specify maximum available power from your power sources manually, if necessary. If you’re using PoE-out to power other devices, you have to provide power via the 2-pin connector to power those.

This product also features single voltage PoE-out – it can either be 802.3at/af compatible OR low-voltage PoE-out. That is determined by the voltage on the 2-pin connector, as no voltage conversion is done on this board.

When it comes to processing power and available use-cases, this router can do it all: PPPoE termination, DHCP to customers, Local Queuing, MPLS Push/Pop/Swap and MPLS Forwarding, VPLS/VXLAN Termination, Hardware bridging, and so much more!

The RB5009 series keep redefining affordable reliability for small, medium, and even large ISPs!

SPECIFICATIONS

Ports: 7× GbE RJ-45 port, 1× 2.5G RJ-45 port, 1× 10G SFP+ slot, 1× USB 3.0 type A
Processor: Marvell Armada ARMv8 Amethyst (1.4 GHz, Quad-Core, model 88F7040)
Memory Size: 1 GB DDR4 RAM + 1 GB NAND
Operating System: RouterOS v7 L5
Power supply: PoE+ 802.3af/at (24-57 V), 2pin terminal (24-57 V)
Maximum power consumption: 150 W (15 W without attachments)
Dimensions: 239 × 222 × 57 mm

Useful links and videos:

Declaration of Conformity + User Manual

Device Setup via Quick Set Guide

Mobile App for Device Control

Resetting Device, Reset Button Functions

RouterOS Recovery using Netinstall Utility

NAT Configuration

Load Balancing Configuration (Traffic Splitting Between Multiple Internet Connections)

Failover Setup (Switching to Backup Link in Case of Failure)

Multiple uplinks using PCC & Load balancing

Static NAT & RouterOS

MikroTips: Netinstall

Brand
Type specification :  Routerboard
Manufacturer :  MIKROTIK
Technical specification
PoE-in :  802.3af/at
PoE-out :  802.3af/at
PoE-out (quantity) :  8
Outdoor use :  yes
Indoor use :  yes
Max. operating temperature (°C) :  70
Min. operating temperature (°C) :  -40
NAND (MB) :  1000
Processor
Number of Cores :  4
Processor :  Marvell 88F7040, 1,4 GHz
Memory
Memory size (MB) :  1000
Display
Display :  no
Communication
3G support :  no
4G/LTE support :  no
Network interfaces
Gigabit LAN :  yes
LAN :  yes
Port Speed :  1 Gb/s + 2,5 Gb/s + 10 Gb/s
Wi-Fi :  no
Inputs and outputs
RJ-45 :  8
Interface :  LAN, SFP+
RS-232 port :  no
SFP+ :  1
Slots :  7x LAN, 1x 2.5G LAN, 1x SFP+
USB 3.0 :  1
Card reader
MicroSD card support :  no
Power supply
Input voltage (V) :  24-57
Max. Voltage (jack) (V) :  57
Max. Voltage (PoE) (V) :  57
Min. Voltage (jack) (V) :  24
Min. Voltage (PoE) (V) :  24
PoE support :  yes
Power consumption - typical (W) :  150
Operating system
License :  L5
Operating system :  RouterOS 7.0
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
Support
SIM slot :  no
Physical properties
Color :  white - grey
Dimensions :  239 × 222 × 57 mm
Additional equipment and features
LED indication :  yes
Certification mark :  CE, EAC, RoHS
