Planet XT-715A konvertor 10G Base-T / SFP+ 10G Base-X

Add recension
3 317 CZK 2 742 CZK without VAT

In stock To send

Code: NETPLA2578 PN: XT-715A Warranty: 26 months
Výrobce: PLANET Technology
PLANET XT-705A The PLANET XT-705A is a high-performance media converter that enables reliable extension of a 10G Ethernet network over long distances using optical transmission. The device supports conversion between a 2.5G... more
Count:
Add to Cart

Favorites
Compare
Print
Send to friend
PLANET XT-705A

The PLANET XT-705A is a high-performance media converter that enables reliable extension of a 10G Ethernet network over long distances using optical transmission. The device supports conversion between a 2.5G/5G/10GBASE-T (RJ45) copper interface and a 10GBASE-X (SFP+) optical interface, ensuring flexibility and compatibility with various network infrastructures. The media converter is ideal for data centers, enterprise networks, campus installations, and Internet Service Providers (ISPs).

The XT-705A supports optical connections up to 300 meters using multi-mode fiber or up to 80 kilometers with single-mode fiber. With high transmission speed, low latency, and a robust design, it is suitable for critical applications requiring reliable and high-speed data transmission.

Key Features:

Media Conversion

  • Conversion between 2.5G/5G/10GBASE-T (RJ45) and 10GBASE-X (SFP+).
  • Auto-negotiation of connection speed.
  • Auto-MDI/MDI-X support for easy connection without crossover cables.

    High Performance and Transmission Efficiency

  • Non-blocking wire-speed packet forwarding.
  • Internal switching capacity of 20 Gbps.
  • Supports 16K jumbo frames for optimized network performance.
  • Full-duplex transmission with IEEE 802.3x flow control to prevent packet loss.

    Wide Range of Transmission Options

  • Multi-mode LC optical fiber – up to 300 m.
  • Single-mode LC optical fiber – up to 80 km.
  • Single-mode WDM (Simplex LC) – up to 70 km.
  • Copper connection – up to 100 meters via Cat 6A/Cat 7 at 10Gbps.

    Low Power Consumption and Compact Design

  • Energy-efficient operation with a maximum power consumption of only 5.3 W.
  • Durable metal chassis for long-lasting performance.
  • Standalone installation or rack-mountable (MC-700, MC-1500).
  • Wall-mount and DIN rail mounting options for flexible placement.

    Easy Diagnostics and Compatibility

  • LED indicators for quick network status diagnostics.
  • Plug & Play installation – no complex configuration required.
  • Compatible with a wide range of SFP+ modules (10GBASE-SR, 10GBASE-LR).

    TECHNICAL SPECIFICATIONS

    Physical Properties:

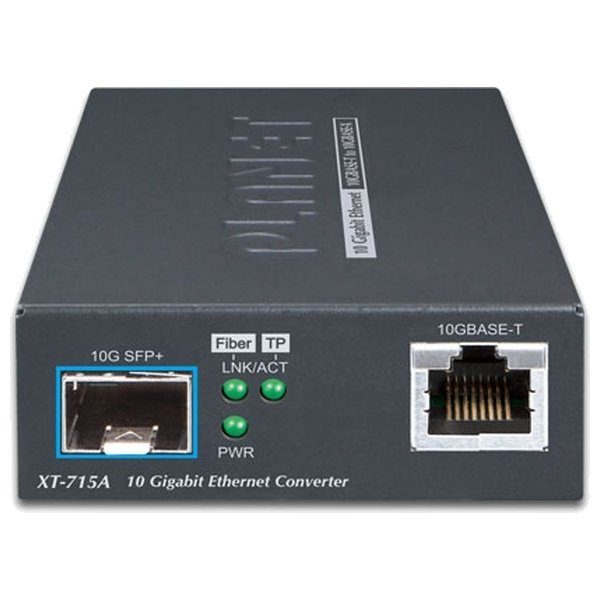

    Ports: 1× RJ45 2.5G/5G/10GBASE-T, 1× SFP+ 10GBASE-X
    Processing Technology: Store-and-forward
    Transmission Support: 16K Jumbo Frame
    Throughput: 20 Gbps switching capacity, full wire-speed forwarding rate
    MAC Address Table: 16K entries
    Design: Standalone, optional wall-mount or DIN rail mount (brackets not included)

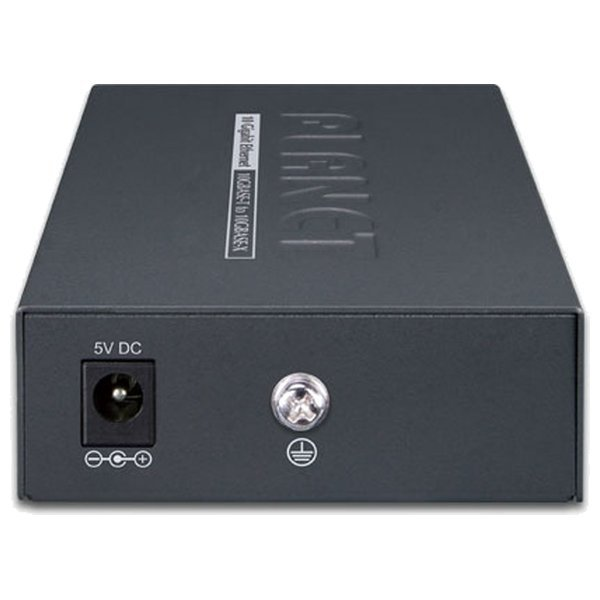

    Power Supply: 5V DC, 2A, max power consumption 5.3W (power adapter included)
    Protection: ESD 4 kV DC contact, 8 kV DC air discharge
    Operating Temperature: 0 to 50°C
    Dimensions: 93.5 × 70 × 26 mm
    Weight: 216 g

    Industrial Properties:

  • Drop resistance (IEC-60068-2-32) from 75 cm on all impact surfaces.
  • Vibration resistance (IEC-60068-2-6).
  • Shock resistance: short-term acceleration of 50g, long-term 4g (IEC-60068-2-27).

    Layer 2 Features:

  • Supports IEEE 802.1Q VLAN transparency (VLAN pass-through).
  • QoS – Traffic classification, supports CoS/802.1p.
  • Supports full-duplex transmission and IEEE 802.3x flow control to prevent packet loss.

    Standards:

  • IEEE 802.3bz, 2.5G/5GBASE-T.
  • IEEE 802.3an, 10GBASE-T.
  • IEEE 802.3ae, 10GBASE-SR/LR.
  • IEEE 802.3x full-duplex flow control.
  • IEEE 802.1Q VLAN tagging.
  • IEEE 802.1p Class of Service.
  • RFC 768 UDP, RFC 791 IP, RFC 792 ICMP, RFC 2068 HTTP.

    • Brand
    Type specification :  Konvertor
    Manufacturer :  PLANET Technology
    Technical specification
    Management :  no
    Konverze :  LAN/SFP
    Průmyslové provedení :  no
    Placement :  samostatně stojící
    Rychlost portů – metalická :  10 Gb/s
    Rychlost portů – optická :  10 Gb/s
    Network interfaces
    Connector type :  SFP+
    Warranty
    Warranty period EU (months) :  26
    Warranty period CRN (months) :  26
    Physical properties
    Color :  černá
    Weight (g) :  216
    Dimensions :  93,5 × 70 × 26 mm
