SOLAX X3-HYBRID-G4-CT

767 CZK 634 CZK without VAT

In stock To send

Code: SOPSLX3008 PN: X3-HYBRID-G4-CT Warranty: 2 year
Výrobce: SOLAX POWER

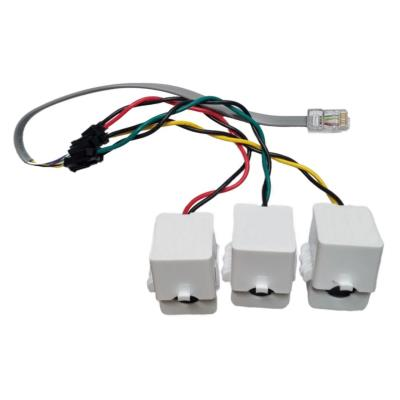

SOLAX X3-HYBRID-G4-CT Measuring Split Core CT Transformers for so-called flow measurement (model CTSA016-100A/33,33mA). They are used where it is necessary to monitor the direction and size of the current in PV network or... more
SOLAX X3-HYBRID-G4-CT

Measuring Split Core CT Transformers for so-called flow measurement (model CTSA016-100A/33,33mA). They are used where it is necessary to monitor the direction and size of the current in PV network or network-PV.

  • For conductor cross-section up to 16 mm2
  • Monitoring the direction and size of the current
  • RJ-45 Connector
  • Suitable for inverters SOLAX, Foxess, Goodwe or Wallbox, etc.

BASIC SPECIFICATIONS

Primary Rated Current: 100 A
Secondary Rated Current: 33.33 mA
Rated Frequency: 50/60 Hz
Connection: 1× RJ-45
Cable Length: 0.4 m
Operating Temperature: -10 to +50 °C
Weight: 250 g






Brand
Type specification :  Electrical accessories up to 1kg
Manufacturer :  SOLAX POWER
Technical specification
Max. operating temperature (°C) :  50
Min. operating temperature (°C) :  -10
Warranty
Warranty period EU (months) :  24
Warranty period CRN (months) :  24
Physical properties
Weight (kg) :  0.25
