Solarmi MC4 connectors, crimp (set Male + Female), 10mm

73 CZK 60 CZK without VAT

In stock To send

Code: SOPGWL0488 PN: MC4-P-10 Warranty: 26 months
Výrobce: XTEND Solarmi
GWL/ELERIX MC4-P-10 A set of solar connectors MC4 (male + female) designed for the installation of solar cables with 10 mm2 conductors. For connector assembly onto the cable, use this installation tool. Advantages of... more

GWL/ELERIX MC4-P-10

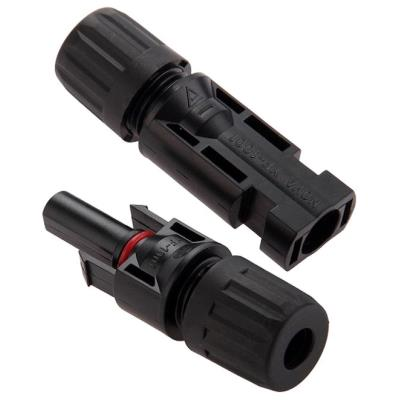

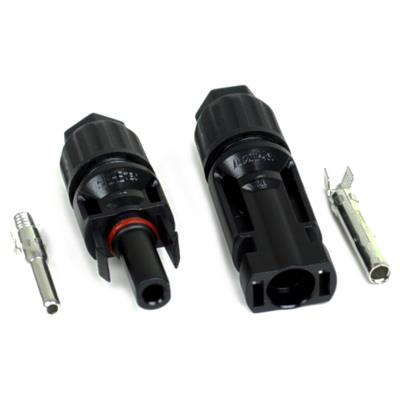

A set of solar connectors MC4 (male + female) designed for the installation of solar cables with 10 mm2 conductors.

For connector assembly onto the cable, use this installation tool.

Advantages of these MC4 connectors:

  • Easy, quick, and efficient installation
  • High mechanical resistance
  • Designed for high currents and voltages (30 A, 1500 DC)
  • Low transition resistance
  • Waterproof and dustproof construction with IP68 rating
  • Non-flammable material
  • Highest quality materials according to UL 94-V0 with a wide temperature range from -40°C to 85°C, weather and UV resistance for long-term outdoor use
  • Tested in TUV and ETL laboratories

SPECIFICATIONS

Connector Type: MC4

Voltage: max. DC 1500 V

Recommended continuous current: 30 A

Contact Resistance: <0,35 mΩ

Conductor Cross-Section: 10 mm2

Safety Class: Class II

Protection: IP68

Flame Resistance: UL94-V0

Insulation Material: M-PPE

Contact Material: Copper alloy + plating

Operating Temperature: -40°C to 85°C

Certifications: TUV, ETL

Brand
Type specification :  Other
Manufacturer :  XTEND Solarmi
Technical specification
Max. operating temperature (°C) :  85
Min. operating temperature (°C) :  -40
Inputs and outputs
Connector :  MC4
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
