Solarmi MC4 connectors, crimp, 2-6 mm (set Male + Female)

59 CZK 48 CZK without VAT
Common price: 63 CZK

In stock To send

Code: SOPGWL0016 PN: MC4-P Warranty: 26 months
Výrobce: XTEND Solarmi
Xtend Solarmi MC4-P Set of MC4 solar connector (male + female). Use this install tool for mounting of the MC4 connectors. Advantages of this solar MC4 connectors: Simple, quick, safe and effective filed assembly ... more
Xtend Solarmi MC4-P

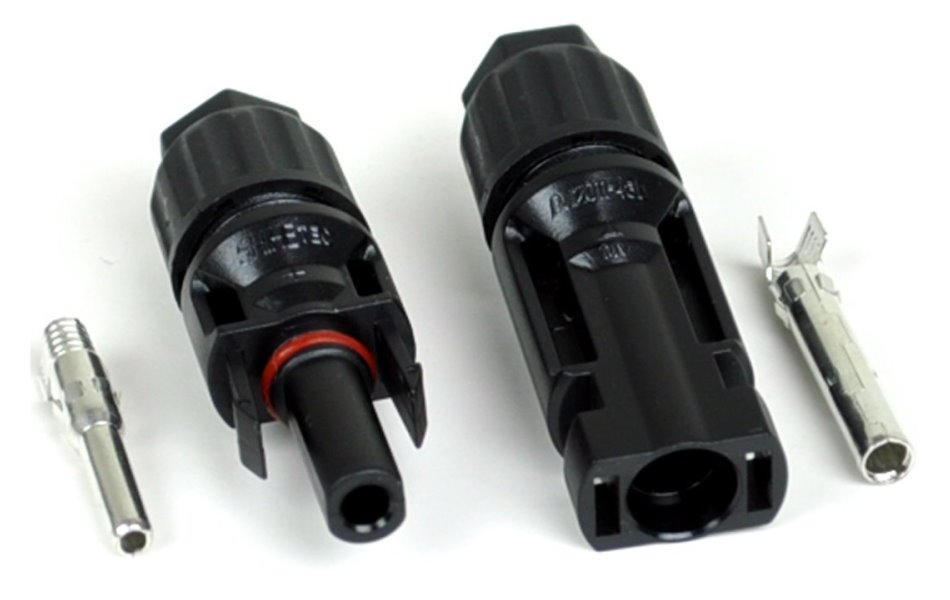

Set of MC4 solar connector (male + female).

Use this install tool for mounting of the MC4 connectors.

Advantages of this solar MC4 connectors:
  • Simple, quick, safe and effective filed assembly
  • Develop independently, innovative design, have independent intellectual property rights, adaptive to MC4 connector directly
  • High mechanical endurance
  • High current and voltage carrying (30 A, 1000 DC)
  • Low transition resistance
  • Innovative sealed, waterproof, and dust-resistant design with an IP67 rating
  • Excellent plastic material, UL 94-V0, wide temperature range (-40 to 85 °C), weather and UV resistant for long-time outdoor application
  • Approved by TUV and ETL

ZÁKLADNÍ SPECIFIKACE

Connector Type: MC4
Rated Voltage: max. DC 1000 V
Rated Current: 16 A
Contact resistance: <0.3mOhm
Cable Standard: 2.5/4/6 mm2 (14/12/10AWG)
Safety Class: Class II
Protection Class: IP65
Flame Retardant Grade: UL94-V0
Insulation Material: PPO
Composite Contact Material: silver-plated copper
Operating Temperature: -40 to +85 °C
Certification: TUV, ETL

Brand
Type specification :  Other
Manufacturer :  XTEND Solarmi
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
