Ubiquiti UISP Fiber XG

2 938 CZK 2 428 CZK without VAT
Common price: 3 135 CZK

Unknown availability

Code: NAAUBT1158 PN: UISP-FIBER-XG Warranty: 26 months
Výrobce: UBIQUITI
Ubiquiti UISP Fiber XG Optical Network Unit capable of delivering up to 10 Gb/s for downlink (2.5 Gb/s for uplink) at a distance of up to 20 km. UISP Fiber XG-PON CPE 1× 2.5G RJ-45 LAN port (100/1000/2500 MbE) with... more

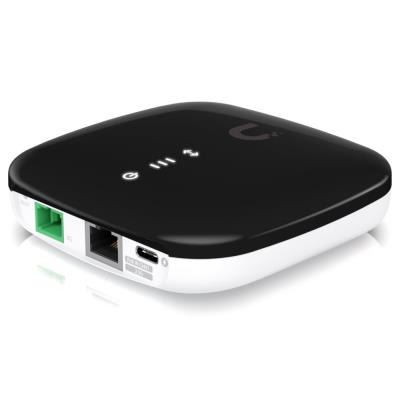

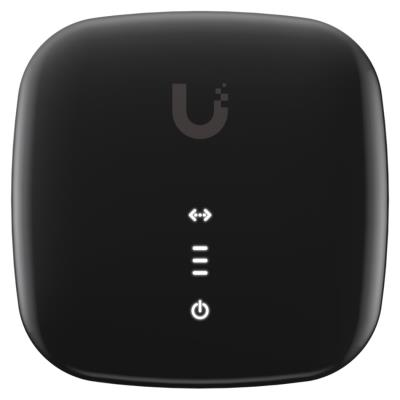

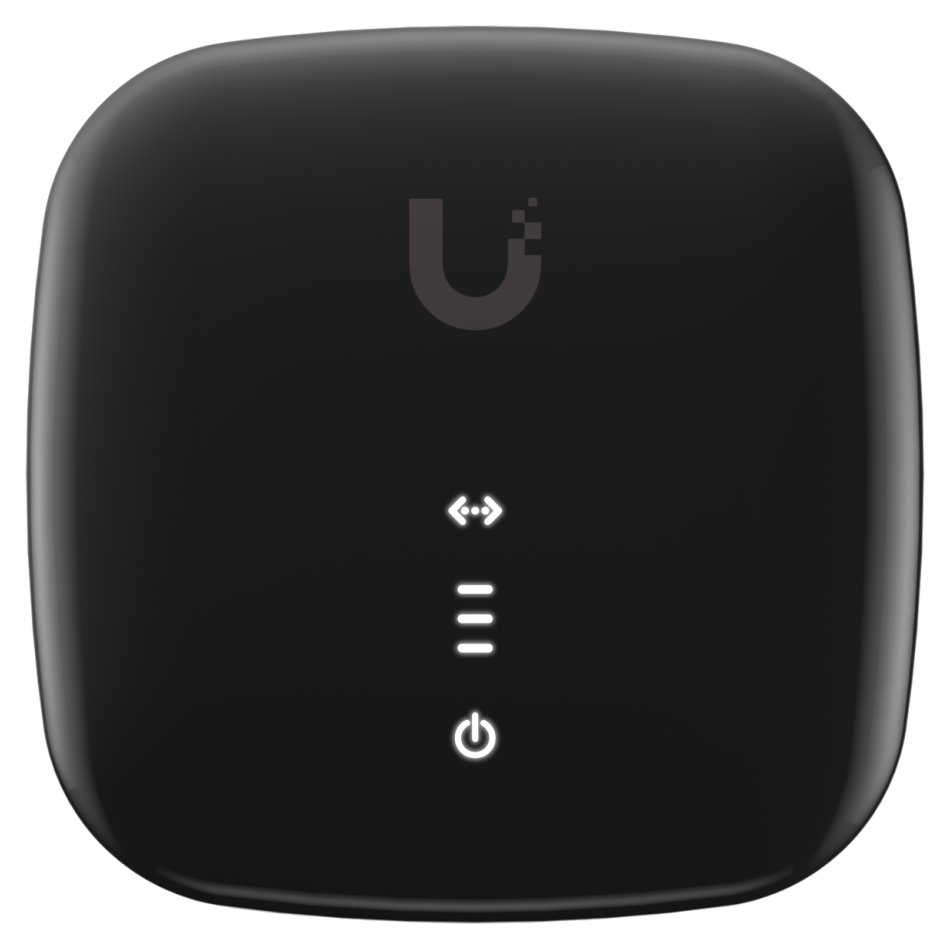

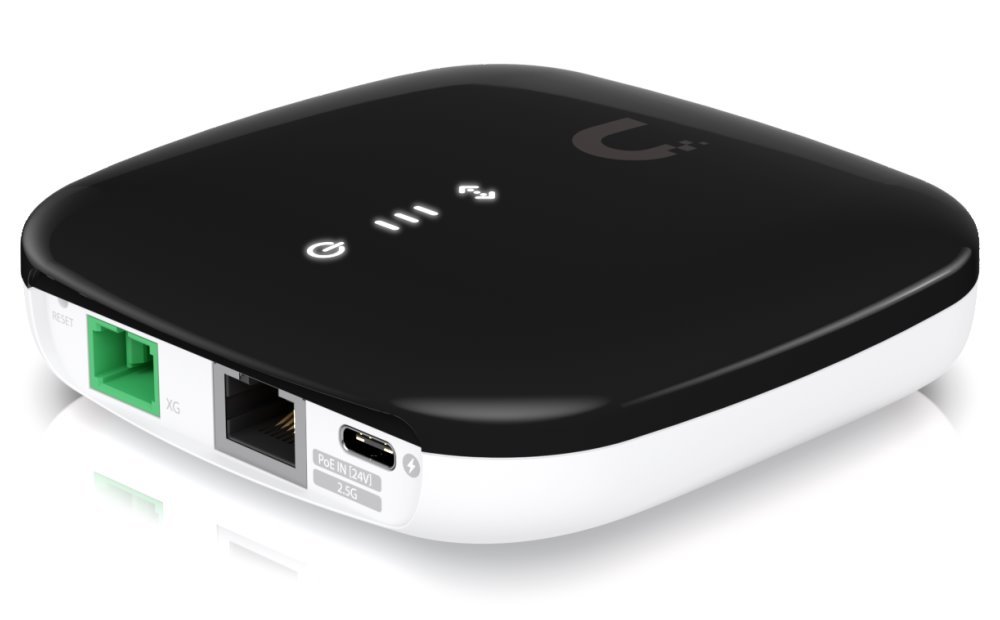

Ubiquiti UISP Fiber XG

Optical Network Unit capable of delivering up to 10 Gb/s for downlink (2.5 Gb/s for uplink) at a distance of up to 20 km.

  • UISP Fiber XG-PON CPE
  • 1× 2.5G RJ-45 LAN port (100/1000/2500 MbE) with passive PoE input support (24 V)
  • 1× XG-PON optical port (SC/APC), ITU-G.987 XGPON WAN standard
  • Normal TX optical module range: 2 to 7 dBm
  • Normal RX optical module range: -9 to -27 dBm
  • Supports Bridge and Router modes

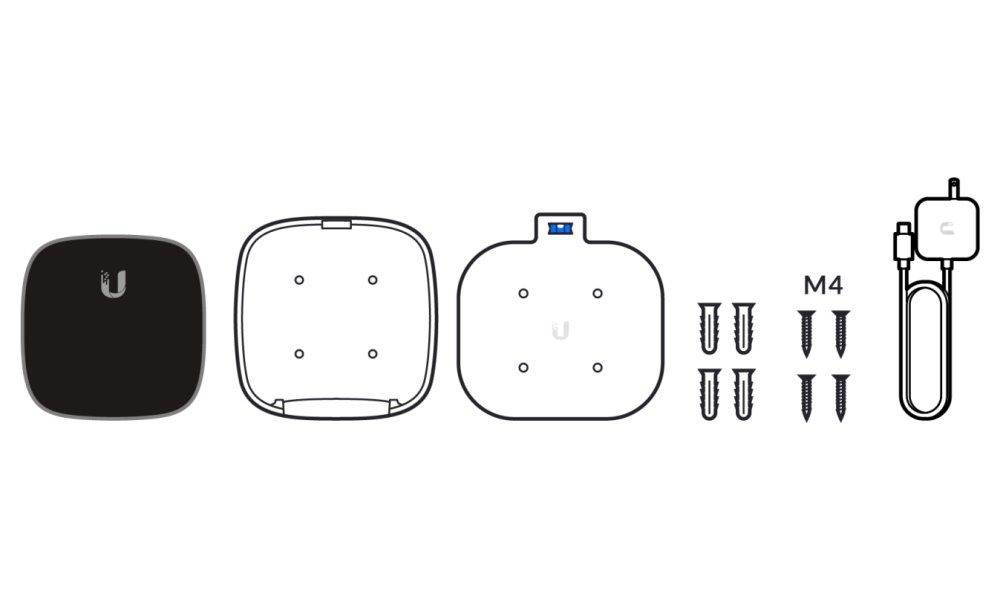

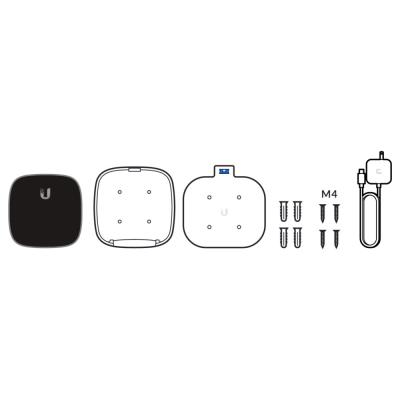

  • Power adapter included in the package
  • Managed through the UISP application (version 1.5.7 or newer)

Note: This device is only compatible with the UISP Fiber XGS OLT device. It cannot be used with OLT devices from other manufacturers.

BASIC SPECIFICATIONS

Interfaces: Ethernet, PON

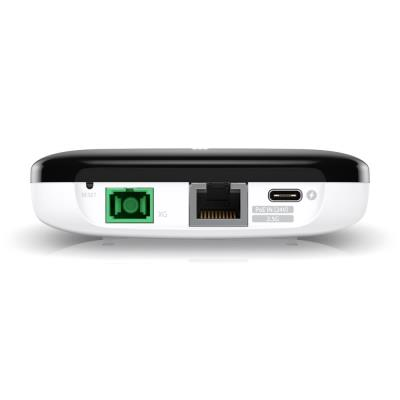

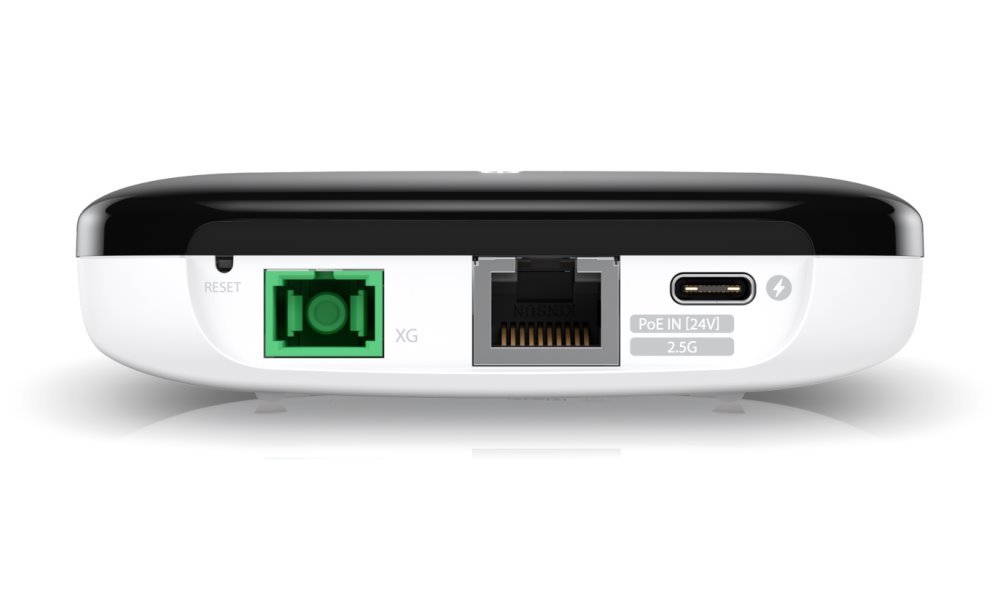

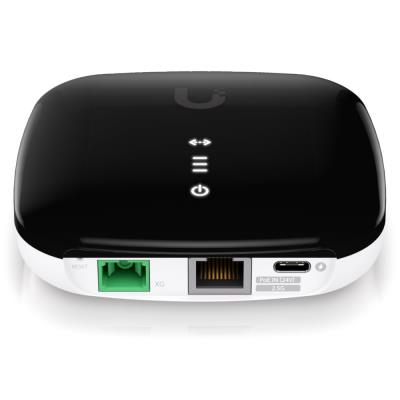

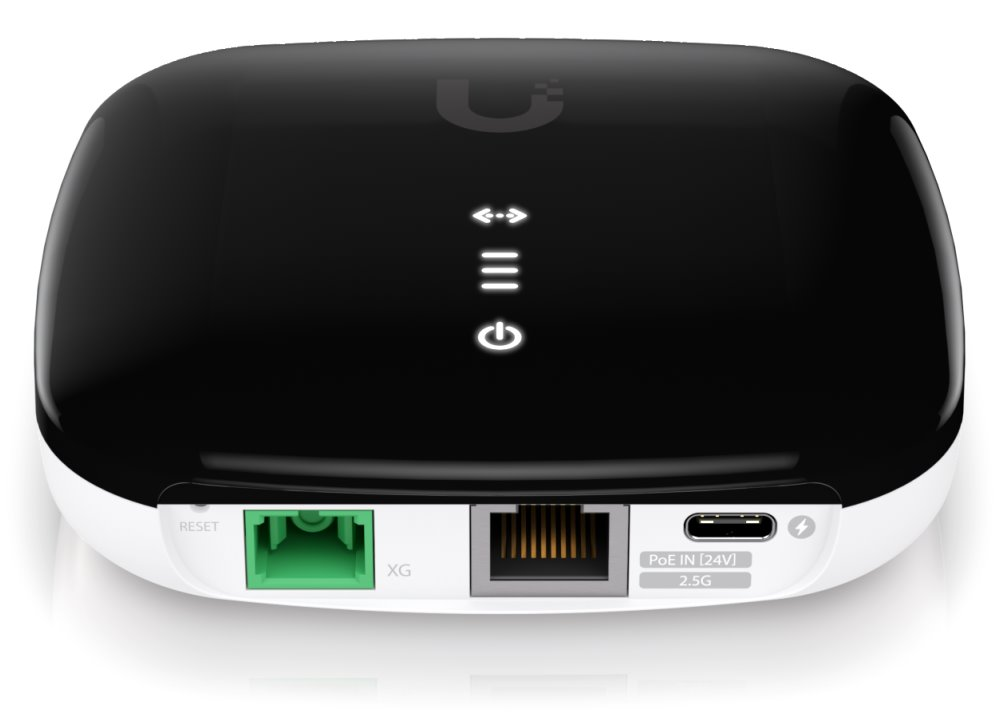

Ports: 1× SC/APC, 1× 2.5G RJ-45, 1× USB-C (power only)
Memory: 256 MB DDR, 32 MB NOR (flash)
Max. Line Rate (non-blocking): downstream 9.95 Gbit/s; upstream 2.44 Gbit/s
Operational Wavelengths: TX 1270 nm, RX 1577 nm
Range: 20 km
Encoding: NRZ (Scrambled NRZ)
Power Supply: External DC 5 V adapter (3 A) or passive PoE (24 V), max. power consumption 6 W
Operating Temperature: -15 to +45 °C
Weight: 220 g
Dimensions: 100 × 100 × 27 mm


Manual (Installation Guide):
https://dl.ui.com/qig/uisp-fiber-xg



Brand
Type specification :  PON - GPON
Manufacturer :  UBIQUITI
Technical specification
Max. operating temperature (°C) :  45
Data Rate (Mbps) :  10000 (downstream), 2500 (upstream)
Min. operating temperature (°C) :  -15
Placement :  desktop
Placement :  wall mounting
Wavelength (nm) :  1577
Wavelength (nm) :  1270
Network interfaces
Port Speed :  2,5 Gb/s + 10 Gb/s
Inputs and outputs
RJ-45 :  1
PON (počet) :  1
Power supply
Input voltage (V) :  24 (PoE)
Input voltage (V) :  5
Power consumption - typical (W) :  6
Power type :  external power adapter
Power type :  PoE passive 24V
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
Security
Default IP :  192.168.1.x
Default IP :  192.168.1.1
Physical properties
Color :  black - white
Depth (mm) :  100
Weight (g) :  220
Weight (kg) :  0.22
Dimensions :  100 × 100 × 27 mm
Width (mm) :  100
Height (mm) :  27
