Teltonika TSW114 industrial switch 5x GE, DIN mount kit

1 157 CZK 956 CZK without VAT

Unknown availability

Code: NARTEL0028 PN: TSW114000000 Warranty: 26 months
Výrobce: TELTONIKA
Teltonika TSW114 TSW114 is an affordable way to simplify your connectivity with its integrated DIN-rail bracket and plug-n-play nature. 5x Gigabit Ethernet ports provide stable, reliable connectivity for high-bandwidth... more
Teltonika TSW114

TSW114 is an affordable way to simplify your connectivity with its integrated DIN-rail bracket and plug-n-play nature.
5x Gigabit Ethernet ports provide stable, reliable connectivity for high-bandwidth solutions with multiple Ethernet devices.

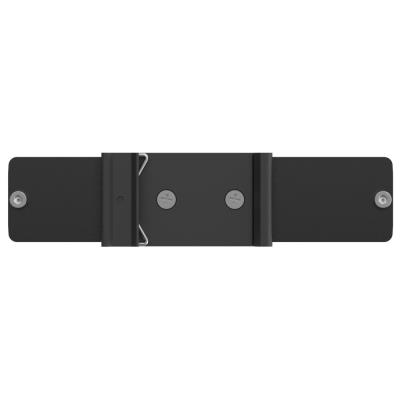

Compact size, front-facing ports, and integrated DIN rail bracket enable easy installation across many industrial environments.
Rugged anodized aluminum housing and a wide power supply voltage range of 9-30 V make this unmanaged switch perfect for industrial solutions.


Learn more on wiki page wiki.teltonika-networks.com/view/TSW114.


SPECIFICATIONS

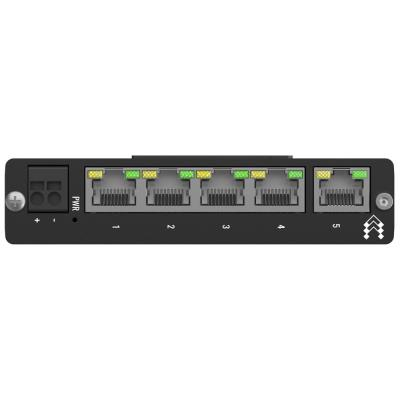

Ports: 5x RJ-45 10/100/1000 Mbps
PoE: yes, passive
Bandwidth (Non-blocking): 10 Gbps
Power: DC 9-30 V (power adapter not included)
Dimensions: 113,1 x 80,5 x 27,4 mm



Brand
Type specification :  Switch
Manufacturer :  TELTONIKA
Technical specification
Management :  no
OSI layer :  L2
Fanless :  yes
Switching capacity (Gbps) :  10
Homologation EN50155 :  no
PoE-in :  passive
PoE-out :  ne
Outdoor use :  no
Max. operating temperature (°C) :  75
Min. operating temperature (°C) :  -40
Placement :  DIN rail mounting
Ingress protection :  IP30
Stackable :  ne
Display
Display :  no
Network interfaces
Gigabit LAN :  yes
LAN :  yes
Port Speed :  1 Gb/s
Inputs and outputs
RJ-45 :  5
RS-232 port :  no
Card reader
MicroSD card support :  no
Power supply
PoE support :  yes
Power type :  external power supply
Input Voltage (V) :  9 - 30 (DC)
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
Physical properties
Color :  black
Weight (g) :  174
Dimensions :  113,1 × 80,5 × 27,4 mm
Weight category :  Lightweight - up to 2 kg
Additional equipment and features
Certification mark :  CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
