TINYCONTROL current sensor up to 100A for LAN Controller LK3 and LK4

308 CZK 255 CZK without VAT

In stock To send

Code: NJSGWL0069 PN: LANKON-331 Warranty: 26 months
Výrobce: TINYCONTROL

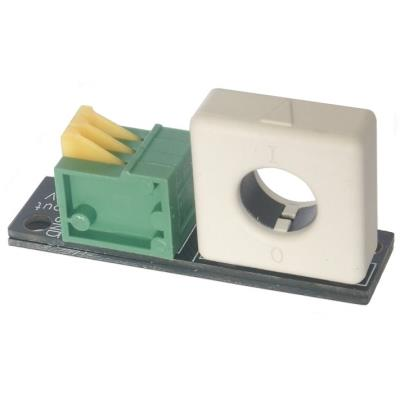

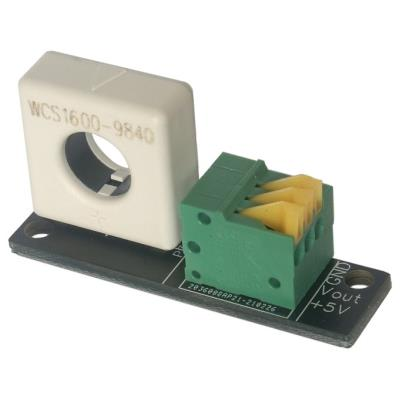

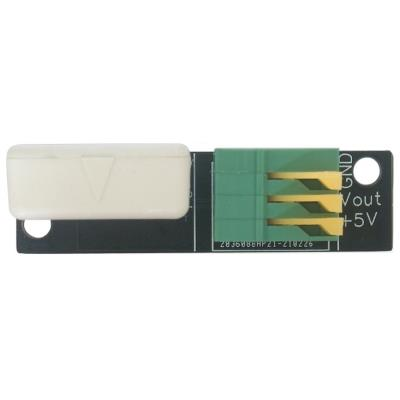

Tinycontrol current sensor up to 100A Non-invasive current sensor (WCS1600) for DC current measurement by indirect method. It is designed for LAN driver v3/3.5/3.6.. Hall effect current sensor for through hole measurement.... more
Tinycontrol current sensor up to 100A

Non-invasive current sensor (WCS1600) for DC current measurement by indirect method. It is designed for LAN driver v3/3.5/3.6..
Hall effect current sensor for through hole measurement. Not need breaking cables and additional operations.

  • In a case of use Lan Controller v3 sensor should be powered 3,3 V from IDC10-1 connector and use INP1-4A input.
  • In a case of use Lan Controller v3.5/3.6 sensor should be powered 3,3 V from IDC10-1 connector and use INP3-4A input or easier use 5 V and measurement inputs INP1-2A.
  • Before using indications should be calibrated in window Cal!

SPECIFICATIONS

Current range: 0-100 A
Diameter conductor through hole: 9 mm
Sensitivity: 22 mV/A
Isolation voltage: 4000 V
Power voltage from Lan Controller: 3,3 V or 5 V

Brand
Type specification :  Network specialties
Manufacturer :  TINYCONTROL
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
