Solarmi VS425-04 relay (installation contactor) 4x 25A 230V AC/DC

900 CZK 744 CZK without VAT

After order for 5 days

Code: ELEGWL0186 PN: VS425-04 Warranty: 26 months
Výrobce: XTEND Solarmi
Xtend Solarmi VS425-04 installation contactor Installation contactor 4x 25 A The VS series contactors are designed for auxiliary and power switching of motors, machines, pumps or luminaires. For switching of electric... more

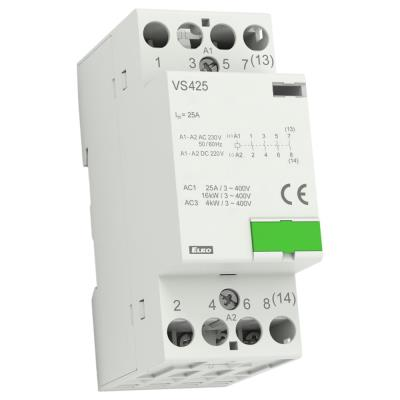

Xtend Solarmi VS425-04 installation contactor

Installation contactor 4x 25 A
The VS series contactors are designed for auxiliary and power switching of motors, machines, pumps or luminaires.

  • For switching of electric circuits, especially for resistave loads and three-phase induction motors.
  • Switches higher loads, especially in other categories like AC-1.
  • Cover IP20, IP40 protection caps of all contactor terminals are shipped to order.
  • Standards: IEC 60947-4-1, IEC 60947-5-1, IEC 61095, EN 60947-4-1, EN 60947-5-1, EN 61095, EN 60947-1

SPECIFICATIONS

Rated insulation voltage (Ui): 440 V
Rated thermo-current lth (in AC): 25 A
Coil control voltage: AC/DC 24 V, 48 V, 110 V, 230 V
Coil permanent/gear supply +/- 10 %: 3.8 VA / 3.8 W (version 04)
Operational temperature: -5 to +55 °C
Weight: 213 g
Dimensions: 85 x 60 x 35 mm (1.4˝ x 3.35˝ x 2.4˝)

Brand
Type specification :  Other
Manufacturer :  XTEND Solarmi
Technical specification
Max. operating temperature (°C) :  55
Min. operating temperature (°C) :  -5
Inputs and outputs
Connector :  terminal
Power supply
Max. Input Current (A) :  25
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
Physical properties
Weight (kg) :  0.213
Dimensions :  85 × 60 × 35 mm
