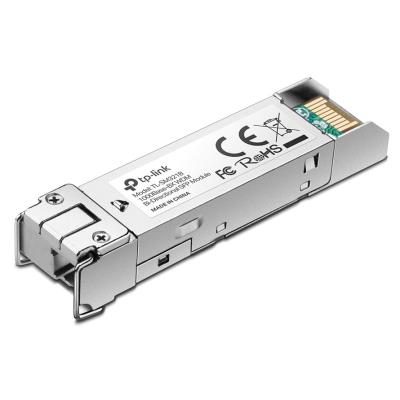

TP-Link TL-SM321B-2 1000Base-BX WDM Bi-Direct SFP 1Gbps 2km/ SM/LC module

399 CZK 330 CZK without VAT

In stock To send

Code: NAOTPL1025 PN: SM321B-2 Warranty: 60 months
Výrobce: TP-LINK
TP-Link TL-SM321B-2 Adopts the latest standard 1000Base-BX Up to 2 km transmission distance in 9/125 µm SMF (Single-Mode Fiber) Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA) Supports Digital... more
TP-Link TL-SM321B-2

  • Adopts the latest standard 1000Base-BX
  • Up to 2 km transmission distance in 9/125 µm SMF (Single-Mode Fiber)
  • Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
  • Supports Digital Diagnostic Monitoring (DDM)
  • Supports Hot Swappable

TP-LINK´s TL-SM321B-2 is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, TL-SM321B-2 uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 µm SMF (Single-Mode Fiber).

Also, TL-SM321B-2 incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.

TP-Link's TL-SM321B-2 is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.

SPECIFICATIONS

Standards and Protocols: IEEE 802.3z, TCP/IP
Wave Length: TX: 1310 nm / RX: 1550 nm
Power Supply: 3,3 V
Cabel: Single-mode Fiber
Fiber Type: 9/125 µm Single-mode
Max. Cable Length: 2 km
Data Rate: 1,25 Gbps
Port Type: LC

Brand
Type specification :  Optical module
Manufacturer :  TP-LINK
Technical specification
Max. link length (km) :  2
Max. operating temperature (°C) :  70
Data Rate (Mbps) :  1250
Min. operating temperature (°C) :  0
Wavelength (nm) :  1310,1550
Network interfaces
Cable distance :  2 km
Standards :  IEEE 802.3z, TCP/IP
SFP module speed :  1,25 Gbps
Module type :  SFP
Connector type :  LC
Inputs and outputs
Connector :  LC
Power supply
Input voltage (V) :  3,3
Warranty
Warranty period EU (months) :  60
Warranty period CRN (months) :  60
Physical properties
Color :  gray
Fiber specification :  9/125um
Fiber type :  singlemode
