In stock To send
RB4011 series - Amazingly powerful routers with 10 Gigabit ports, SFP+ 10 Gbps interface and IPsec hardware acceleration for a great price!

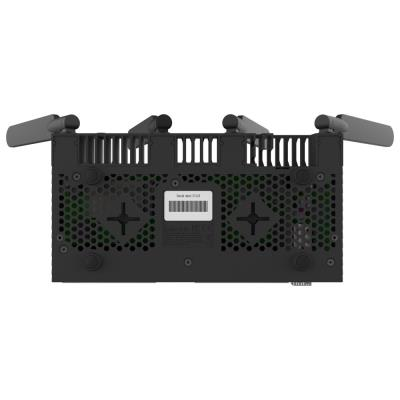

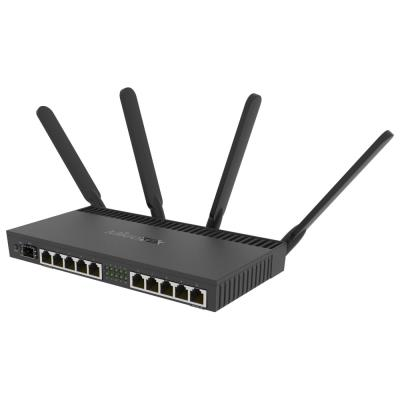

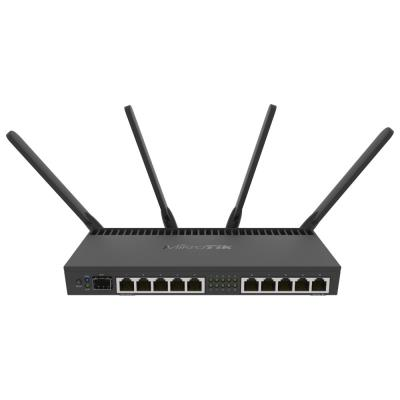

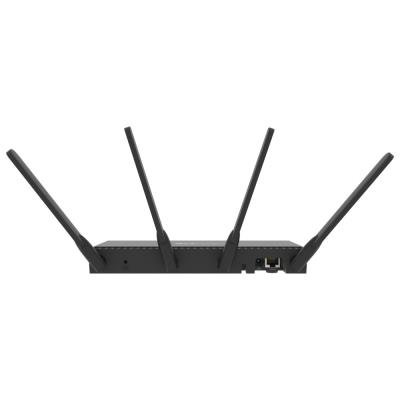

The RB4011 uses a Quad Core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1 GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.
RB4011iGS+5HacQ2HnD-IN (Wi-Fi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5 GHz. For legacy devices, the unit also has a dual chain 2 GHz wireless card installed in miniPCI-e slot.
Specifications
CPU nominal frequency: 1,4 GHz
CPU core count: 4
Size of RAM: 1 GB
Ports: 10x Gigabit RJ-45 LAN, 1x SFP+, 1x RJ45 (console)
Support PoE: yes, passive
Standard: IEEE 802.11a/b/g/n/ac
Wireless frequency: 2,4 GHz / 5 GHz
Antenna: external 4x 3 dBi
Encryption: AES-128/256-CBC + SHA1/256, AES-128-GCM
Dimensions: 228 x 120 x 30 mm
Useful links and videos:
Declaration of Conformity + User Manual
Device Setup via Quick Set Guide
Resetting Device, Reset Button Functions
RouterOS Recovery using Netinstall Utility
Load Balancing Configuration (Traffic Splitting Between Multiple Internet Connections)
Failover Setup (Switching to Backup Link in Case of Failure)
Multiple uplinks using PCC & Load balancing
Static NAT & RouterOS
MikroTips: Netinstall
Brand | |
Type specification : | Routerboard |
Manufacturer : | MIKROTIK |
Technical specification | |
Sensitivity (dBm) : | - 100 (1 mbps) to - 72 (MCS9) dBm |
DHCP : | yes |
Firewall : | yes |
Maximum Power (W) : | 44 |
IPv6 support : | yes, full |
PoE-in : | passive |
PoE-out : | passive |
PoE-out (quantity) : | 1 |
Outdoor use : | no |
Indoor use : | yes |
Max. operating temperature (°C) : | 60 |
Data Rate (Mbps) : | 1733 |
Min. operating temperature (°C) : | -20 |
Power control : | yes |
Placement : | desktop |
NAND (MB) : | 512 |
Gain (dBi) : | 3 (2,4GHz), 3 (5GHz) |
Processor | |
Number of Cores : | 4 |
Processor : | Alpine AL21400, 1,4 GHz |
Memory | |
Memory size (MB) : | 1000 |
Chipset | |
Chipset : | Atheros QCA9984 |
Communication | |
3G support : | no |
4G/LTE support : | no |
Network interfaces | |
Wi-Fi frequency : | 2400 MHz/5000 MHz |
Gigabit LAN : | yes |
LAN : | yes |
Max. output power (dBm) : | 33 |
Standards : | 802.11a/b/g/n/ac |
Operation mode : | AP, Client, WDS, Bridge, WISP, Repeater |
AP mode : | yes |
Bridge mode : | yes |
Client mode : | yes |
Repeater mode : | yes |
Router mode : | yes |
Port Speed : | 1 Gb/s |
Standard Wi-Fi : | 802.11a/b/g/n/ac |
Encryption : | WEP, WPA, WPA2, 802.1X, MAC Address Filtering |
Wi-Fi : | yes |
WEP security : | yes |
WPA security : | yes |
WPA2 security : | yes |
WPA3 security : | no |
Antenna | |
Antenna type : | fixed |
Inputs and outputs | |
RJ-45 : | 10 |
Interface : | LAN, SFP+ |
RS-232 port : | no |
SFP+ : | 1 |
Slots : | 1x miniPCI-e |
Power supply | |
Input voltage (V) : | 12 - 57 |
Max. Voltage (jack) (V) : | 57 |
Max. Voltage (PoE) (V) : | 57 |
Min. Voltage (jack) (V) : | 12 |
Min. Voltage (PoE) (V) : | 12 |
PoE support : | yes |
Power consumption - typical (W) : | 23 |
Operating system | |
License : | L5 |
Operating system : | MikroTik RouterOS |
Warranty | |
Warranty period EU (months) : | 26 |
Warranty period CRN (months) : | 26 |
Support | |
SIM slot : | no |
Security | |
Default username : | admin |
Physical properties | |
Color : | black |
Depth (mm) : | 120 |
Weight (kg) : | 1.18 |
Dimensions : | 228 × 120 × 30 mm |
Width (mm) : | 228 |
Height (mm) : | 30 |
Additional equipment and features | |
LED indication : | yes |
