Ubiquiti Sector Horn antenna 60°, 16 dBi, MIMO 2x2 (5 GHz)

2 013 CZK 1 664 CZK without VAT

In stock To send

Code: NATUBT0008 PN: Horn-5-60 Warranty: 26 months
Výrobce: UBIQUITI
Ubiquiti Horn 5-60 With flexible sectorization for optional antenna beamwidths, the horn antennas are interchangeable and improve beam-shaping for specific deployment and environment needs. Sector horn antennas are... more
Ubiquiti Horn 5-60

With flexible sectorization for optional antenna beamwidths, the horn antennas are interchangeable and improve beam-shaping for specific deployment and environment needs. Sector horn antennas are designed to increase co-location performance without sacrificing gain.



Asymmetrical horn antennas have naturally attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

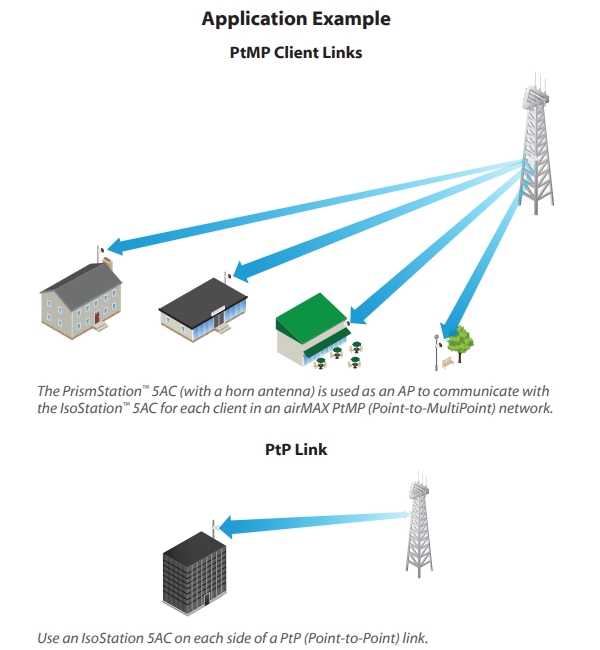

The horn antennas can be used with the following radios:

  • airFiber LTU AF-LTU
  • IsoStation IS-5AC
  • IsoStation IS-M5
  • PrismStation PS-5AC

SPECIFICATION

Gain: 16 dBi

Frequency: 5,15 - 5,85 GHz

Dimensions: 173,3 x 170,9 x 161,6 mm

Weight: 0,72 kg

Brand
Type specification :  Wi-Fi antenna
Manufacturer :  UBIQUITI
Technical specification
Polarization :  horizontal and vertical
PSV :  <2
Angle of radiation - H. (°) :  60
Angle of radiation - V. (°) :  30
Gain (dBi) :  16
Network interfaces
Wi-Fi frequency :  5150 - 5850 MHz
Antenna
Radiation :  sector
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
Physical properties
Color :  white
Depth (mm) :  170.9
Weight (kg) :  0.72
Dimensions :  173,3 × 170,9 × 161,6 mm
Width (mm) :  173.3
Height (mm) :  161.6
Pedestal and mount
Wall Mount :  no
Pole mount :  yes
Additional equipment and features
Certification mark :  CE, FCC, IC
