Planet GTP-805A RJ45/SFP Converter, 1Gbps, 802.3at PoE Injector

2 740 CZK 2 264 CZK without VAT

It will be in stock 10.4.2026

Code: NETPLA1985 PN: GTP-805A Warranty: 26 months
Výrobce: PLANET Technology
 (Planet Technology)
11F, No. 96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
sales@planet.com.tw
www.planet.com.tw
PLANET GTP-805A PoE injector IEEE 802.3at and Gigabit Ethernet optical converter, 10/100/1000Base-T - miniGBIC (SFP) switch, full duplex, 1k MAC addresses. The device is not only a converter between transmission media,... more

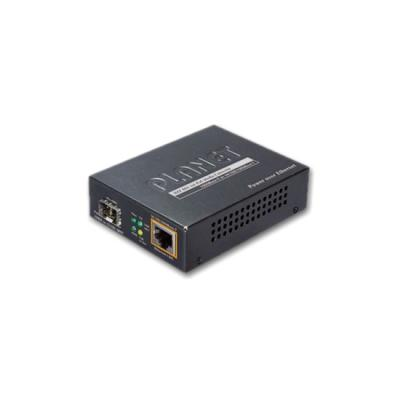

PLANET GTP-805A

PoE injector IEEE 802.3at and Gigabit Ethernet optical converter, 10/100/1000Base-T - miniGBIC (SFP) switch, full duplex, 1k MAC addresses.

The device is not only a converter between transmission media, but also serves as a PoE injector, integrating three basic functions:

  • transmission media conversion according to miniGBIC module to 10/100/1000Base-T
  • Power over Ethernet injector with IEEE 802.3at / IEEE 802.3af standards support
  • 30W injector output power

The network device is an ideal choice for service providers, office and corporate environments, or for expanding network infrastructure with Wi-Fi technology, whose access points can be powered directly using the converters. The use of GTP-80x converters is particularly suitable for implementation and installation of IP camera systems, including cameras powered via PoE.
The IEEE 802.3at standard included in GTP-80x uses 52 V DC voltage in Ethernet cabling, which allows the use of standard Ethernet UTP cabling between GTP-80x and IEEE 802.3at compatible device (PD - Powered Device) or PoE splitter (e.g. POE-161S). The maximum distance for using PoE power over Ethernet cable is up to 100 m.
The converter technology uses a "store-forward" mechanism, which should actively prevent transmission losses using IEEE 802.3x. LFP (Link Fault Pass Through function) can alert the network admin to device failure, the alarm function can be controlled via DIP switch.

BASIC SPECIFICATIONS

Physical properties:

Ports: 1× RJ-45 10/100/1000BASE-T, 1× SFP miniGBIC
Transmission support: JumboFrame 9KB
Design: indoor
OAM support: no
Power supply: 52 V DC adapter
Protection: no
Operating temperature: 0 to 50 °C
Dimensions: 94 × 70 × 26 mm
Weight: 210 g
Rack mountable: no

POE function:

Total power budget: 30 W, IEEE 802.3af, IEEE 802.3at
Number of injectors: 1× up to 30 W
Power type: Mid-span
Advanced features:

  • automatic powered device detection




    Info

    Application

    Manual

    Complete converter overview

    Other downloads

  • Brand
    Type specification :  Konvertor
    Manufacturer :  PLANET Technology
    Technical specification
    Conversion :  LAN/SFP
    Management :  no
    Standard :  802.3af
    Standard :  802.3at
    Outdoor use :  no
    Placement :  desktop
    Port speed – metallic :  1 Gb/s
    Network interfaces
    Number of PoE ports :  1
    Connector type :  SFP
    Warranty
    Warranty period EU (months) :  26
    Warranty period CRN (months) :  26
