EPEVER Tracer1210AN G3 MPPT Solar Regulator 10A, 12/24V, Input 100V

1 458 CZK 1 205 CZK without VAT
Common price: 1 506 CZK

Unknown availability

Code: SOPEPE0024 PN: Tracer1210AN G3 Warranty: 26 months
Výrobce: EPEVER
 (EPEVER Technologies Europe B.V.)
Poortweg 4A, 2612 PA Delft, Nizozemsko
info@epever.com
www.epever.eu
EPEVER Tracer1210AN G3 Advanced MPPT solar charge controller with maximum efficiency of 98% and lithium battery support. The Tracer-AN G3 series represents a new... more

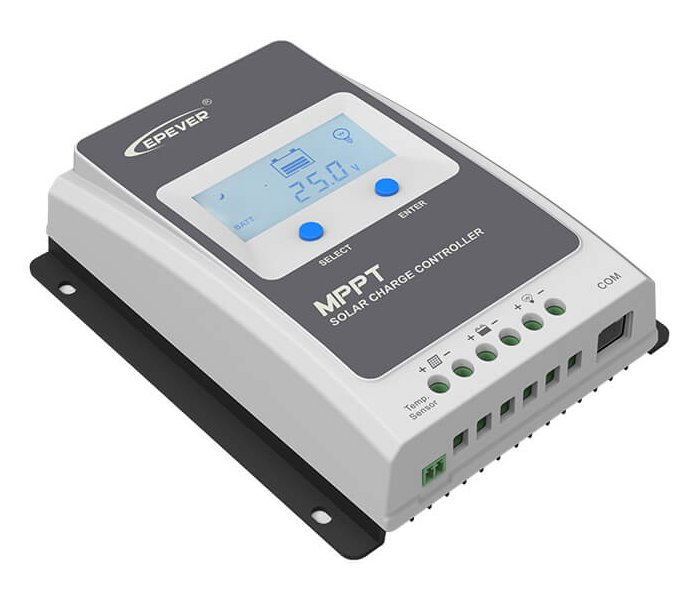

EPEVER Tracer1210AN G3

Advanced MPPT solar charge controller with maximum efficiency of 98% and lithium battery support.

The Tracer-AN G3 series represents a new generation of MPPT solar charge controllers from EPEVER. The controller uses adaptive 3-stage charging that maximizes energy utilization from photovoltaic panels and extends battery life. The device features a constant voltage output function that ensures comprehensive compatibility with various types of lithium batteries.

Thanks to extremely low self-consumption ≤ 10 mA, it significantly extends system standby operation time. The controller is suitable for caravans, residential systems, and outdoor monitoring. Under certain conditions, the system can power loads directly without a battery.

  • Maximum DC/DC conversion efficiency of 98% with advanced MPPT technology
  • Adaptive 3-stage charging with battery temperature compensation
  • Support for multiple battery types including lithium with parameter settings
  • LCD display for setting and monitoring battery parameters
  • Constant voltage output function for universal compatibility
  • Comprehensive electronic protection against overload and short circuit
  • RS-485 communication interface with optional 4G or Wi-Fi module support
  • Extremely low self-consumption ≤ 10 mA for long standby mode

Advanced charging and protection
The controller uses battery temperature compensation and stable self-activation function for optimal charging. The system offers multiple load operating modes and comprehensive protection against overload, short circuit, and overheating.

Flexible settings and monitoring
Parameters can be set via LCD display, PC software, mobile app, or remote meter. Communication is via RS-485 interface with 5 V DC voltage and current up to 200 mA (RJ-45).

Environmental durability
The device is designed for operation in a temperature range of -25 °C to +45 °C at full load. Storage temperature is -20 °C to +70 °C. IP30 rating ensures basic protection against ingress of solid particles.

BASIC SPECIFICATIONS

Electrical parameters

Rated battery voltage: 12/24 VDC (automatic detection)
Rated charging/discharging current: 10 A
Operating voltage range: 8–31 V
Max. PV open circuit voltage: 100 V (at minimum operating ambient temperature); 92 V (at 25 °C)
MPPT voltage range: (battery voltage +2 V)–72V
Rated charging power: 130 W/12 V, 260 W/24 V
DC/DC conversion efficiency: max. 98 %
MPPT tracking efficiency: >99.5 %
Static losses: ≤8 mA (12 V), ≤5 mA (24 V)
Voltage drop during discharge: ≤0.23 V
Temperature compensation: -3 mV/°C/2 V (default)
Grounding: common negative pole
Communication: RS-485 (5 VDC/200 mA, RJ-45)

Mechanical and environmental parameters

Dimensions: 172 × 139 × 44 mm
Mounting dimensions: 124 × 130 mm
Mounting hole diameter: ⌀5 mm
Recommended wire gauge: 12 AWG (4 mm²)
Weight: 0.57 kg
Protection rating: IP30
Operating temperature: -25 to +45 °C (100% load)
Storage temperature: -20 to +70 °C
Relative humidity: <95 % (non-condensing)
LCD backlight: default 60 s, range 0–999 s (0 = backlight permanently on)

Brand
Type specification :  Regulator
Manufacturer :  EPEVER
Technical specification
Maximum Power (W) :  260
Max. operating temperature (°C) :  45
Min. operating temperature (°C) :  -25
Technology :  MPPT
Inputs and outputs
Connector :  svorkovnice
Power supply
Rated Voltage (V) :  12/24
Max. input voltage (V) :  100
Max. output current (A) :  10
Physical properties
Depth (mm) :  44
Weight (kg) :  0.57
Width (mm) :  139
Height (mm) :  172
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
