DELL vSAN Ready Node R7725/ 16x NVMe/ 2x Epyc 9135/ 512GB/ 4x 3.84TB NVMe/ 2x 1100W/ BOSS/ iDRAC Ent./ 3Y PS/ ProDeploy

2 422 281 CZK 2 001 885 CZK without VAT

After order for 2 weeks

Code: SVD203680 PN: vSAN-RN-R7725-CTO Warranty: 36 months
Výrobce: DELL
 (Dell Products)
Raheen Business Park, Limerick, Ireland
Technical_Support@dell.com
www.dell.com
Dell PowerEdge R7725 vSAN Ready Node Powerful 2U rack server optimized for VMware vSAN infrastructure with AMD EPYC 9135 processors. Dell PowerEdge... more

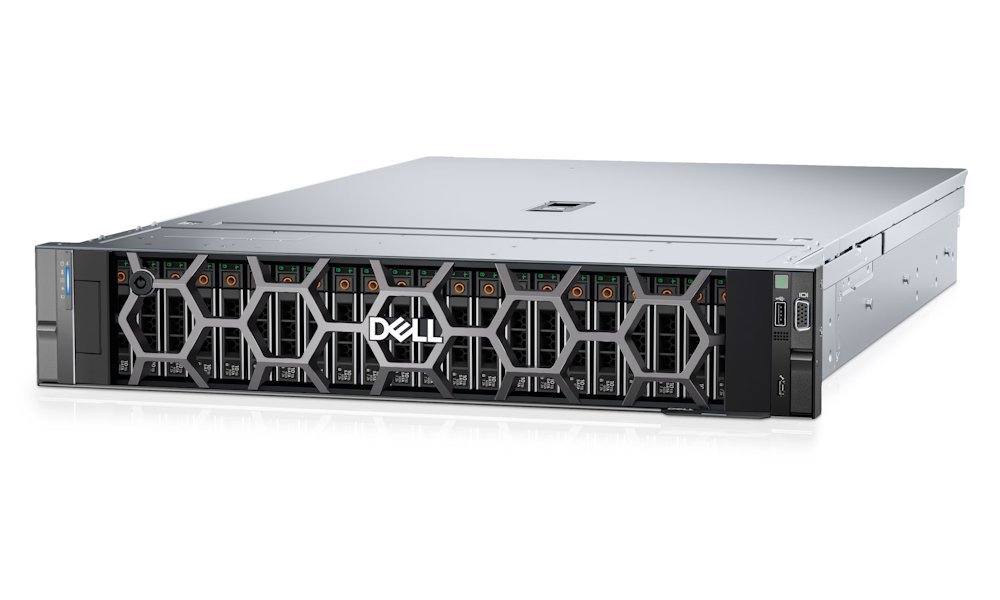

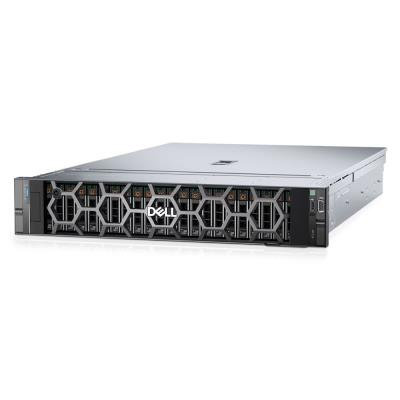

Dell PowerEdge R7725 vSAN Ready Node

Powerful 2U rack server optimized for VMware vSAN infrastructure with AMD EPYC 9135 processors.

Dell PowerEdge R7725 vSAN Ready Node is a preconfigured server system designed specifically for VMware vSAN virtualized environments. The server is equipped with dual 16-core AMD EPYC 9135 processors running at 3.65 GHz and 512 GB of DDR5 memory at 6400 MT/s, providing sufficient performance for demanding data operations.

The system includes 4 high-speed NVMe SSD drives with 3.84 TB capacity designed for vSAN data storage. The server features advanced connectivity including 25GbE and 100GbE network adapters, ensuring fast communication within the vSAN cluster and with the surrounding infrastructure.

  • Dual AMD EPYC 9135 processors with 16 cores/32 threads and 64 MB cache, 3.65 GHz frequency
  • Total of 512 GB DDR5 memory (16× 32 GB RDIMM) with 6400 MT/s speed
  • 4 NVMe SSD drives with 3.84 TB capacity for vSAN data storage
  • Redundant 1500W power supplies with Titanium certification for maximum energy efficiency
  • Advanced network connectivity with 25GbE and 100GbE adapters for high-speed communication
  • BOSS-N1 controller with dual 480 GB M.2 SSDs in RAID 1 configuration for booting
  • iDRAC Enterprise for comprehensive remote server management
  • Pre-installed ProDeploy service for VMware vSAN ensuring professional implementation

Optimized for VMware vSAN
The server is preconfigured and tested specifically for VMware vSAN hyperconverged infrastructure, which significantly simplifies deployment and minimizes implementation risks. VMware certification ensures full compatibility and optimal performance in vSAN environments.

Advanced management and security
Integrated iDRAC Enterprise provides comprehensive remote management, monitoring, and automation capabilities. The system includes advanced security features including Silicon Root of Trust, Secure Boot, and TPM 2.0 for data and infrastructure protection.

Flexible scalability
With 8 PCIe Gen5 slots and support for up to 16 NVMe drives, the R7725 server offers future expansion options according to changing needs. The configuration includes two OCP 3.0 slots for flexible network connectivity.

BASIC SPECIFICATIONS

Processors: 2× AMD EPYC 9135 (3.65 GHz, 16 cores/32 threads, 64 MB cache, TDP 200W)
Memory: 512 GB DDR5 (16× 32 GB RDIMM, 6400 MT/s, dual rank)
Storage: 4× 3.84 TB NVMe SSD (E3.S Gen5), BOSS-N1 with 2× 480 GB M.2 SSD in RAID 1
Network connectivity: Broadcom 57504 25GbE SFP28 (4 ports), Intel E610-XAT4 10GbE BASE-T (4 ports), Broadcom 57508 100GbE QSFP56 (2 ports)
Expansion slots: 8× PCIe Gen5, 2× OCP 3.0
Power supply: 2× 1500W Titanium (redundant, hot-plug)
Management: iDRAC10 Enterprise with OpenManage Enterprise Advance Plus
Dimensions: 2U rack server with sliding rails
Support: ProSupport with next business day service for 36 months
Implementation: ProDeploy PowerEdge R Series and ProDeploy Addon VMware vSAN

EN
Brand
Type specification :  Server
Manufacturer :  DELL
Processor
Processor Base Frequency (GHz) :  3,65
Max Turbo Frequency (GHz) :  4,3
CPU model :  9135
Socket :  SP5
Number of Cores :  16
Počet patic procesorů :  2
Počet procesorů :  2
TDP (W) :  200
CPU type :  AMD EPYC
Memory
RAM Speed (MHz) :  6400
RAM Capacity (GB) :  512
Number of memory slots :  24
Number of available memory slots :  8
Memory Kit :  16× 32 GB
Memory Module Type :  DDR5
Chipset
Chipset :  AMD SoC
Graphics card
GPU Core :  bez grafického jádra
HDD II. kapacita (GB) :  3840
HDD III. kapacita (GB) :  3840
HDD IV. kapacita (GB) :  3840
HDD capacity (GB) :  3840
Kapacita osazených disků (GB) :  15360
Počet diskových pozic :  16
SSD technology :  yes
Communication
Bluetooth :  no
LAN :  yes
LAN Standard :  10 Gb/s
Wi-Fi :  no
Inputs and outputs
RJ-45 :  4
Serial port :  1
SFP28 (počet) :  4
USB 2.0 (front) :  1
USB 3.1 (rear) :  2
USB-C :  1
VGA :  1
Card reader
Memory Card reader :  no
Bus
PCI Express X16 :  8
Case
Formát Rack :  2U
Case Size :  rack 19"
Power supply
Max. power supply wattage (W) :  1100
Operating system
Operating system (pre-installed) :  bez operačního systému
Operating System :  no
Security
Kensington Security Slot :  no
Physical properties
Color :  černá - stříbrná
Weight (kg) :  28.74
Material :  kov, plast
Dimensions :  802,4 × 482 × 86,8 mm
Warranty
Warranty period EU (months) :  36
Warranty period CRN (months) :  36
