Victron Venus GX Central communication unit for intuitive control and monitoring of all components of Victron energy systems. The Venus GX represents... more
Count:
Add to Cart

Favorites
Compare
Print
Send to friend

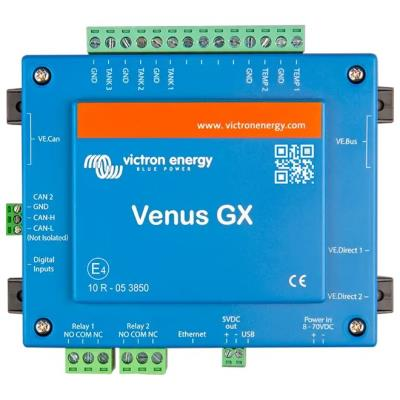

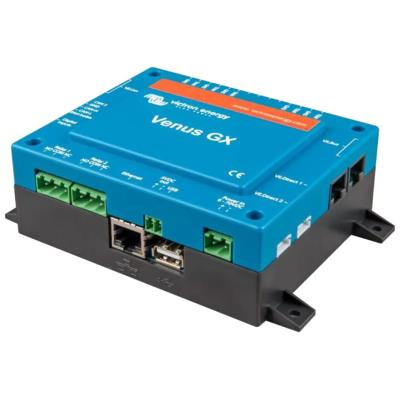

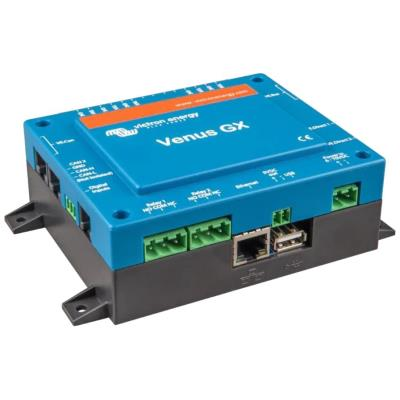

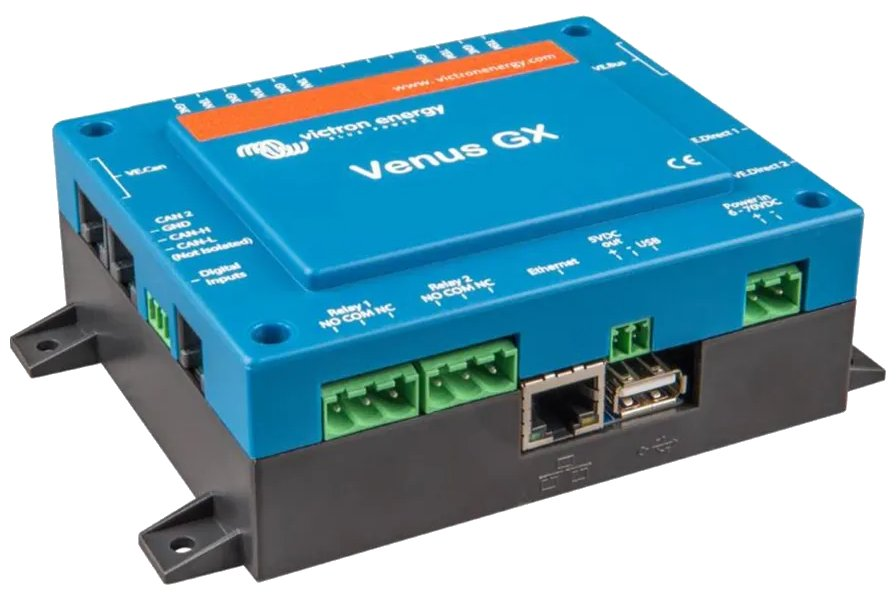

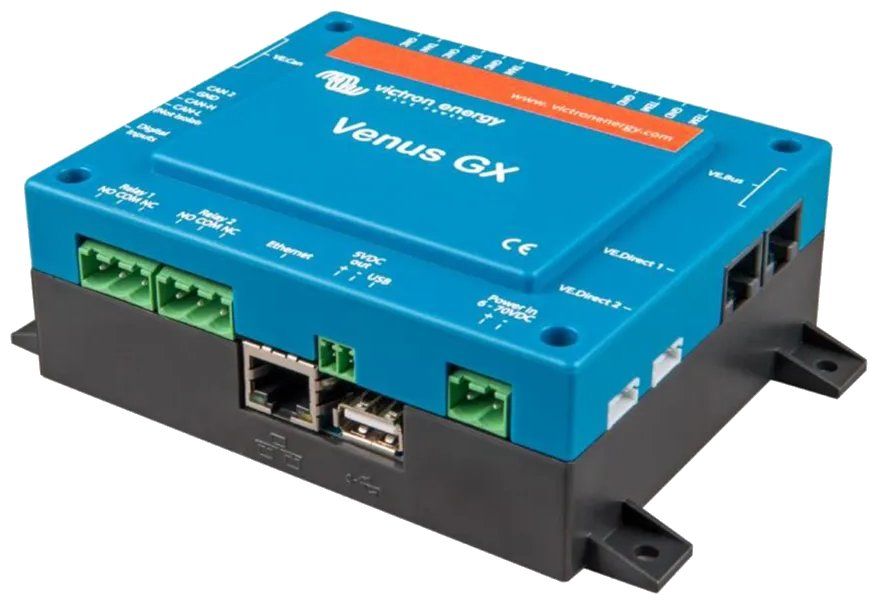

Victron Venus GX

Central communication unit for intuitive control and monitoring of all components of Victron energy systems.

The Venus GX represents the heart of every modern energy system, connecting and managing countless Victron devices including inverters, chargers, MPPT controllers, BMV battery monitors and many others. The device provides a complete system overview through the Remote Console and the free VRM Online Portal.

As an Energy Manager in ESS systems (Energy Storage System), the Venus GX optimizes the energy flow between solar panels, batteries, and the grid. The advanced automatic generator start system can be customized based on state of charge, voltage, load, and other parameters, including quiet hours.

  • Universal compatibility with a wide range of Victron products including Multi, Quattro, MPPT controllers, and BMV monitors
  • Remote monitoring and control via the free VRM Online Portal with offline data storage for up to 48 hours
  • Advanced automatic generator start system with fully customizable parameters
  • Energy Manager function for ESS optimization with intelligent energy flow control
  • Wide connectivity options: 2× VE.Direct, 2× VE.Can, VE.Bus, Ethernet, Wi-Fi, and USB ports
  • Input for 3 tanks supporting European (0–180 ?) and American (240–30 ?) sensors
  • Modbus-TCP gateway for third-party system integration and JSON API for advanced applications
  • Automatic firmware updates via the internet and support for 12 languages including Czech

Advanced data services
Venus GX automatically sends all data to the VRM portal when connected to the internet. In case of a connection outage, it stores data internally for up to 48 hours. Using a microSD card or USB, the capacity can be extended and data later uploaded or analyzed in the VictronConnect app.

Flexible internet connectivity
The unit connects to the internet via Ethernet cable or Wi-Fi. For mobile applications, an external GPRS or 3G router can be used, as the Venus GX does not have an integrated cellular modem.

Tank and location monitoring
A GPS module can be connected to the USB port for location tracking on the VRM portal map. Three analog inputs allow connection of resistive tank sensors configured for European or American standards.

BASIC SPECIFICATIONS

Supply voltage: 8–70 V DC
Current consumption: 210 mA @ 12 V, 110 mA @ 24 V, 60 mA @ 48 V
Communication ports: 2× VE.Direct (isolated), 2× VE.Can RJ45, 2× VE.Bus RJ45, 2× USB Host
Network interfaces: Ethernet 10/100/1000 MB RJ45 (isolated), Wi-Fi Access Point, Wi-Fi Client
Inputs/outputs: potential-free contact NO/COM/NC (6 A 250 VAC/30 VDC), 3× tank input, 2× temperature input
Dimensions: 45 × 143 × 96 mm
Operating temperature: -20 to +50 °C
Operating system: Venus OS (embedded Linux)
Certifications: EN 60950-1, EMC EN 61000-6-3, EN 55014-1

Brand
Type specification :  Electrical accessories up to 1kg
Manufacturer :  VICTRON
Technical specification
Max. operating temperature (°C) :  50
Min. operating temperature (°C) :  -20
Power supply
Rated Voltage (V) :  8 - 70
Operating system
Supported Operating Systems :  Venus OS
Physical properties
Depth (mm) :  96
Dimensions :
Width (mm) :  143
Height (mm) :  45
Additional equipment and features
Certification mark :  CE
