Home   Monitoring and Control   Victron GX IO-Extender 150

Victron GX IO-Extender 150

Add recension
3 211 CZK 2 654 CZK without VAT
Common price: 3 469 CZK

In stock To send

Code: SOPVIC0055 PN: BPP900800150 Warranty: 60 months
Výrobce: VICTRON
 (Victron Energy B.V.)
De Paal 35, 1351 JG Almere, Nizozemsko
lpopescu@victronenergy.com
www.victronenergy.cz
Victron GX IO-Extender 150 The GX IO-Extender 150 enhances the input and output (I/O) capabilities of a... more
Count:
Add to Cart

Favorites
Compare
Print
Send to friend

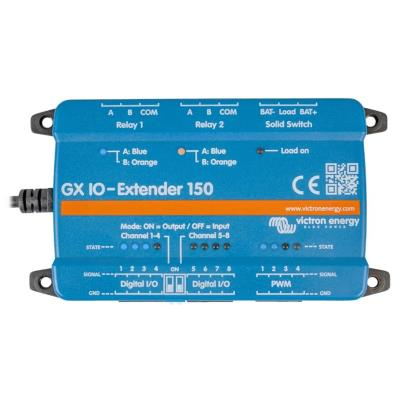

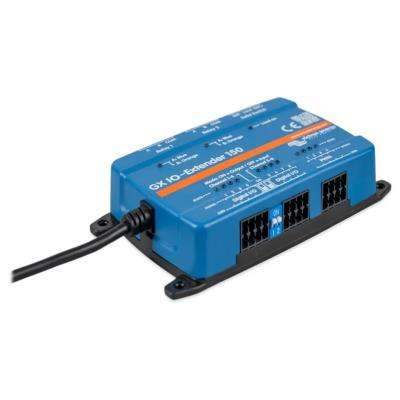

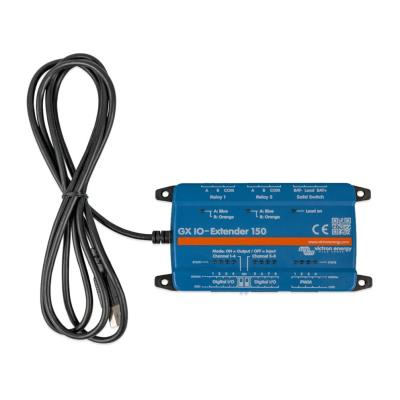

Victron GX IO-Extender 150

The GX IO-Extender 150 enhances the input and output (I/O) capabilities of a GX device, enabling seamless integration with additional sensors, controls, and external devices. It connects via USB, which also serves as its power source, providing a simple and efficient expansion solution. The device can be controlled using Node-RED on the GX device as well as the Switch pane in the user interface.

  • 8 digital I/Os, configurable as 8 inputs, 8 outputs or 4 inputs + 4 outputs
  • PWM output for precise control applications
  • Two latching relays for low-power switching
  • A solid-state relay (SSR) for high-speed switching of DC loads that can be resistive, capacitive or inductive (such as the coil of a high-power contactor)
  • Pluggable spring terminals for fast and secure connections
  • Configurable via Node-RED for easy automation and custom logic

BASIC SPECIFICATIONS

Supply voltage: USB (5 V)
Power consumption: max. 1 W (<100 mW when idle)
PWM outputs: 4 channels, 5 V, 8 bits @ 1,5625 kHz
Latching relay: 2×, DC: 3 A @ 30 V, AC: 2 A @ 60 V
Moutning: DIN rail, wall mount
Dimensions: 123 × 67 × 23 mm
Weight: 0,17 kg

Brand
Type specification :  Electrical accessories up to 1kg
Manufacturer :  VICTRON
Technical specification
Max. operating temperature (°C) :  50
Min. operating temperature (°C) :  -20
Power supply
Input Voltage (V) :  5
Warranty
Warranty period EU (months) :  60
Warranty period CRN (months) :  60
Physical properties
Weight (kg) :  0.17
Dimensions :  123 × 67 × 23 mm
Height (mm) :  123
Width (mm) :  67
Depth (mm) :  23
