Geti GCA003 Charger for Pb and LiFePO4 batteries (12V/20A, 24V/10A)

Add recension
1 370 CZK 1 132 CZK without VAT

After order for 5 days

Code: ELESMI0014 PN: GCA003 Warranty: 24 months
Výrobce: XTEND Solarmi
 (100MEGA Distribution s.r.o.)
Železná 7, 619 00 Brno, Česká Republika
info@100mega.cz
www.100mega.cz
Solarmi GETI GCA003 Universal processor-controlled charger for 12V and 24V lead-acid and LiFePO4 batteries with a capacity of 6–300 Ah. The intelligent charger GETI GCA003... more
Count:
Add to Cart

Favorites
Compare
Print
Send to friend

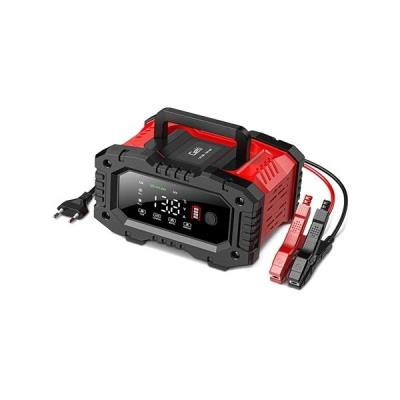

Solarmi GETI GCA003

Universal processor-controlled charger for 12V and 24V lead-acid and LiFePO4 batteries with a capacity of 6–300 Ah.

The intelligent charger GETI GCA003 is designed for efficient charging of 12V and 24V lead-acid or LiFePO4 batteries with a capacity of 6–300 Ah (12V) or 6–150 Ah (24V). Thanks to automatic battery condition diagnostics, it selects the appropriate charging voltage and starts the optimal charging process. The charger features 7 charging modes, including special programs for AGM, LiFePO4, automotive, and motorcycle batteries.

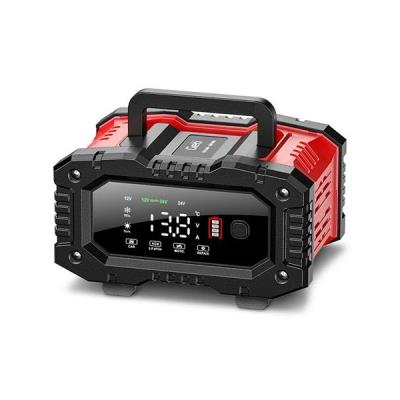

After charging is complete, the device switches to maintenance mode, which prevents battery damage from overcharging and keeps it fully charged and ready for use. The charger is equipped with a large and clear LCD display that shows charging status, voltage, current, and other important parameters.

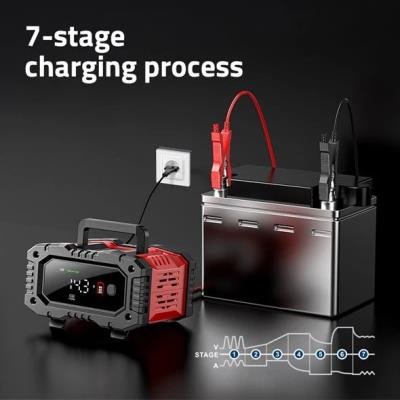

  • Seven-stage automatic charging process controlled by a processor for efficient charging

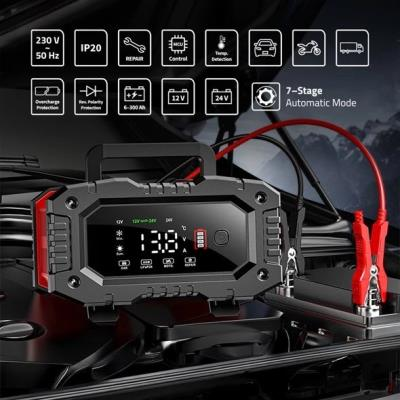

  • Total of 7 charging modes: 12V AGM+ (LiFePO4), 24V AGM+ (LiFePO4), 12V car, 24V car, 12V motorcycle, 24V motorcycle, recovery mode

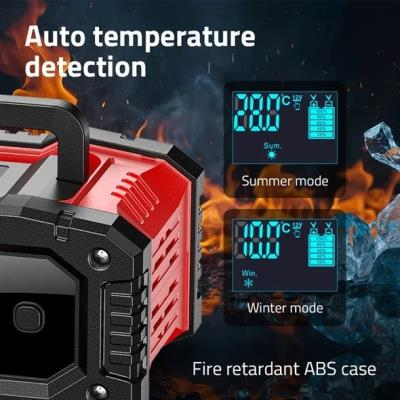

  • Charging voltage automatically adapts to temperature, preventing overcharging or undercharging
  • Can charge even heavily discharged or significantly sulfated batteries
  • Comprehensive protection against short circuit, overload, reverse polarity, and overheating
  • Restores battery capacity with automatic charging termination and maintenance mode
  • Allows permanent connection to the battery being charged without the risk of damage

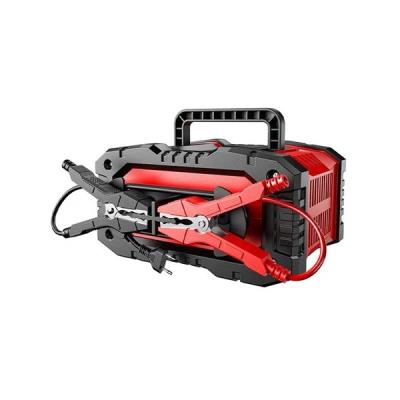

  • Intuitive control panel and easy battery connection via crocodile clips
  • Output current of 20A for 12V batteries and 10A for 24V batteries

Universal use
The charger is suitable for use with various types of vehicles, including cars, motorcycles, boats, and other means of transport using 12V and 24V batteries. With selectable battery type, it is compatible with traditional lead-acid, AGM, and modern LiFePO4 batteries.

Advanced features
The charger can restore battery capacity and charge even deeply discharged batteries with voltage from 5V. It automatically adjusts the charging voltage based on temperature to prevent battery damage. Once charging is complete, it switches to maintenance mode to keep the battery in optimal condition.

Easy operation

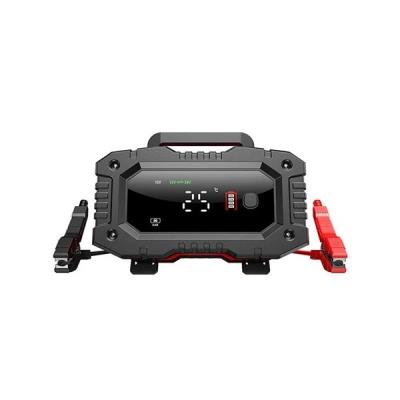

The large and clear LCD display provides a complete overview of charging status, voltage, current, and other important parameters. The intuitive control panel allows easy selection of charging mode. Connecting to the battery is easy thanks to the 1.2 m long charging cable with crocodile clips.

BASIC SPECIFICATIONS

Input voltage: 100–240 V AC, 50/60 Hz, 300 W
Output voltage: 12 V / 24 V (automatic)
Output current: 12 V / 20 A and 24 V / 10 A
Suitable battery capacity:
12 V: 6–300 Ah
24 V: 6–150 Ah
No-load output voltage: 13.8 V
Minimum start voltage: > 5 V
Power consumption under load: max. 300 W
Power consumption without load: 3.5 W

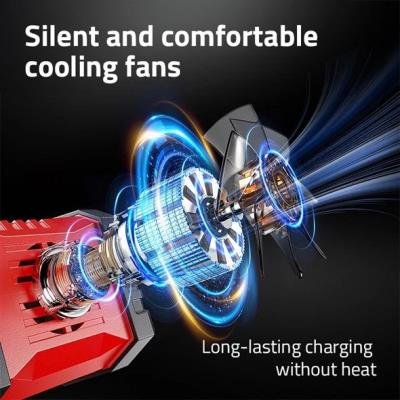

Cooling: fan
Charging cable length: 1.2 m
Power cable length: 1.2 m
Dimensions: 192 × 165 × 102 mm
Weight: 955 g
Protection rating: IP20

Brand
Type specification :  Electrical accessories up to 1kg
Manufacturer :  XTEND Solarmi
Warranty
Warranty period EU (months) :  24
Warranty period CRN (months) :  24
Usage and purpose
Type of accessories :  nabíječka
Physical properties
Dimensions :  192 × 165 × 102 mm
