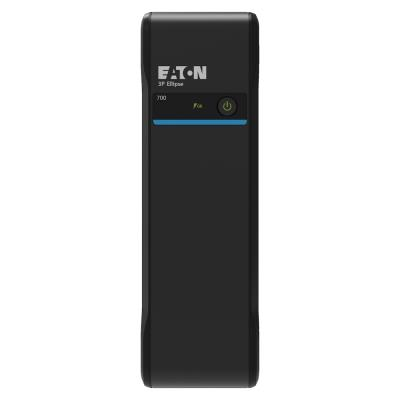

EATON UPS 3P Ellipse 3P700I, IEC, 700VA, 420W, 1/1 phaze, tower

3 195 CZK 2 641 CZK without VAT

In stock To send

Code: UPSE1514 PN: 3P700I Warranty: 36 months hardware / 24 months battery
Výrobce: EATON
EATON UPS 3P Ellipse 3P700I Compact backup power supply for secure protection of your devices at home and in the office. EATON 3P Ellipse 3P700I is a... more

EATON UPS 3P Ellipse 3P700I

Compact backup power supply for secure protection of your devices at home and in the office.

EATON 3P Ellipse 3P700I is a modern standby UPS with 700 VA/420 W power output that provides reliable protection for your devices against power outages and voltage fluctuations. This model offers a typical backup time of 22 minutes for a single PC, giving you enough time to safely save your data and properly shut down your equipment during a power outage.

The UPS is equipped with 3 IEC battery-backed outlets with surge protection and one outlet with surge protection only. Thanks to the built-in surge protection compliant with the strict IEC 61643-11 standard (Uoc=6000V, Up<1500V), your devices are protected from damage caused by electrical spikes.

  • 700 VA/420 W power output for reliable backup of home and office equipment
  • Standby technology with 230 V output voltage (adjustable to 220/230/240 V)
  • Input voltage 220-240 V~ (nominal), range 184-264 V~ (adjustable to 160-284 V~)

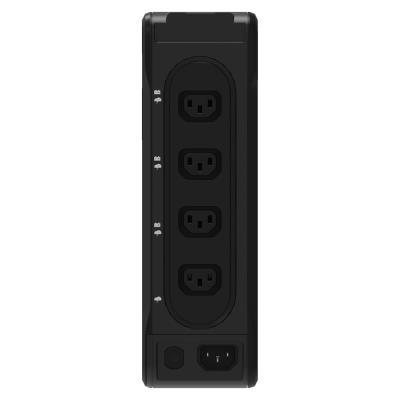

  • 3 IEC outlets with surge protection and backup power + 1 outlet with surge protection only
  • Typical backup time of 22 minutes for 1 PC and 8 minutes for 2 PCs
  • Silent operation with noise level below 25 dBA
  • Compact dimensions 235 × 263 × 81 mm and low weight of 3.7 kg
  • Replaceable battery with deep discharge protection and cold start function
  • Automatic restart when power is restored

Flexible design for any space
The 3P Ellipse UPS offers versatile placement options - it can be used horizontally, vertically, or with optional mounting kits, you can attach it to a wall (ELWALL kit) or install it in a 19" rack (ELRACK kit).

Silent fan-free operation
Thanks to its fan-free design, the UPS ensures silent operation with noise levels below 25 dBA, making it ideal for use in home and office environments where quiet is important.

Reliable surge protection
Built-in surge protection compliant with IEC 61643-11 standard protects your equipment from damage caused by electrical spikes and network instability.

Easy battery management
The UPS features a replaceable battery with functions such as cold start, battery test, and deep discharge protection, which extends battery life and ensures reliable operation.

BASIC SPECIFICATIONS

Power: 700 VA/420 W
Technology: standby (offline)
Input voltage: 220-240 V~ (nominal), range 184-264 V~
Output voltage: 230 V (adjustable to 220/230/240 V)
Input frequency: 50/60 Hz (working range 46-65 Hz)
Input protection: 10A resettable circuit breaker
Surge protection: compliant with IEC 61643-11 standard, Uoc=6000V, Up<1500V
Connections: 3 IEC outlets with battery and surge protection + 1 outlet with surge protection
Backup time: 22 min for 1 PC, 8 min for 2 PCs
Battery management: constant battery recharge, cold start, battery test, deep discharge protection, replaceable battery
Operating temperature: 0 to 40 °C
Noise level: <25 dBA
Dimensions (D × H × W): 235 × 263 × 81 mm
Weight: 3.7 kg
Warranty: 3 years on electronics and 2 years on battery
Certifications: IEC 62040-1, IEC 62040-2 C2, IEC 62040-3, IEC 61643-11, RoHS, REACH

Brand
Type specification :  Backup Power Supply (5 kg - 15 kg)
Manufacturer :  EATON
Inputs and outputs
Connector IEC-320-C13 :  4
Connector IEC-320-C14 :  1
USB 2.0 :  2
Power supply
Max. power supply wattage (W) :  420
Warranty
Warranty period EU (months) :  36
Warranty period CRN (months) :  36
Physical properties
Color :  černá
Weight (kg) :  3.7
Dimensions :  235 × 263 × 81 mm
