EATON UPS 3P Ellipse 3P700F, FR, 700VA, 420W, 1/1 phaze, tower

3 195 CZK 2 641 CZK without VAT

In stock To send

Code: UPSE1513 PN: 3P700F Warranty: 36 months hardware / 24 months battery
Výrobce: EATON
EATON UPS 3P Ellipse 3P700F Compact backup power supply for reliable protection of home and office equipment. EATON UPS 3P Ellipse 3P700F is a modern backup... more

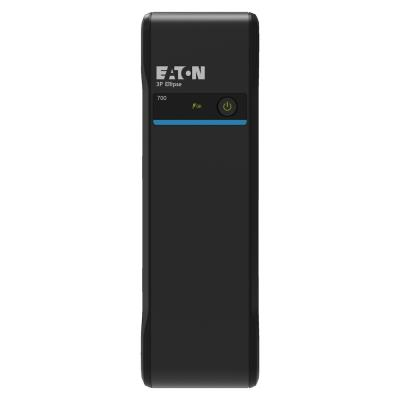

EATON UPS 3P Ellipse 3P700F

Compact backup power supply for reliable protection of home and office equipment.

EATON UPS 3P Ellipse 3P700F is a modern backup power supply with a power rating of 700 VA/420 W, providing reliable protection for your electronic devices against power outages and voltage fluctuations. This model uses Standby technology and offers a typical backup time of up to 22 minutes for a single computer or 8 minutes for two computers.

The unit is equipped with 3 outlets with surge protection and backup power and 1 outlet with surge protection only in the French standard (FR). Thanks to its elegant and compact design, the unit fits into any environment - you can place it horizontally, vertically, or with optional accessories, mount it on a wall or in a rack.

  • 700 VA/420 W power for reliable backup power
  • 12% more power than previous Ellipse ECO models
  • Typical backup time of 22 minutes for one PC, 8 minutes for two PCs
  • Surge protection compliant with IEC 61643-11 standard
  • Silent operation with noise level less than 25 dBA
  • Flexible placement - horizontal, vertical, wall-mounted or rack-mounted
  • Adjustable output voltage 220/230/240 V
  • French standard outlets (FR) without the need for additional adapters
  • Replaceable battery with deep discharge protection
  • Operating temperature 0 to 40 °C

Surge protection
The unit provides advanced surge protection compliant with IEC 61643-11 standard with parameters Uoc=6000V, Up≤1500V, ensuring the safety of your connected devices even during thunderstorms and power grid fluctuations.

Easy usability
Thanks to the French standard outlets (FR), you can connect your equipment directly to the UPS without the need for additional adapters, which is a unique feature in a market dominated by IEC outlets.

Silent operation
Enjoy a silent user experience thanks to the fan-less design with noise level less than 25 dBA, which is ideal for both home and office environments.

Versatile placement
With optional ELRACK and ELWALL accessories, you can mount the UPS in a 19" rack (2U) or on a wall, providing maximum flexibility in device placement.

BASIC SPECIFICATIONS

Power: 700 VA/420 W
Technology: Standby
Input voltage: 220-240 V~ (nominal); 184-264 V~ adjustable to 160-284 V~
Output voltage: 230 V (adjustable to 220 V/230 V/240 V)
Input frequency: 50/60 Hz (working range 46 - 65 Hz)
Input protection: 10A resettable circuit breaker

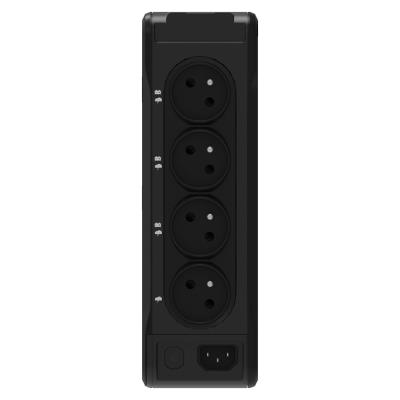

Connections: 3 outlets with surge protection and backup power + 1 outlet with surge protection (FR)
Typical backup time: 22 minutes for 1 PC, 8 minutes for 2 PCs
Battery management: constant battery recharge, cold start, battery test, deep discharge protection, replaceable battery
Operating temperature: 0 to 40 °C
Noise level: < 25 dBA
Dimensions (D × H × W): 235 × 263 × 81 mm
Weight: 3.7 kg
Warranty: 3 years on electronics and 2 years on battery
Part number: 3P700F

Brand
Type specification :  Backup Power Supply (5 kg - 15 kg)
Manufacturer :  EATON
Inputs and outputs
Connector IEC-320-C14 :  1
Connector FR :  4
USB 2.0 :  2
Power supply
Max. power supply wattage (W) :  420
Warranty
Warranty period EU (months) :  36
Warranty period CRN (months) :  36
Physical properties
Color :  černá
Weight (kg) :  3.7
Dimensions :  235 × 263 × 81 mm
