DELL PowerEdge R760XA/8x2.5"/2xXeon 5416S/256GB/2x480GB SSD/2x2800W/iDRAC Ent./ 4x nVidia Ampere A16 64GB/ 3Y PS NBD

2 387 114 CZK 1 972 821 CZK without VAT

After order for 2 weeks

Code: SVD203600 PN: R760XA-CTO Warranty: 36 months
Výrobce: DELL
Dell PowerEdge R760xa Powerful 2U rack server designed for demanding GPU applications and AI/ML workload acceleration. Dell PowerEdge R760xa represents... more

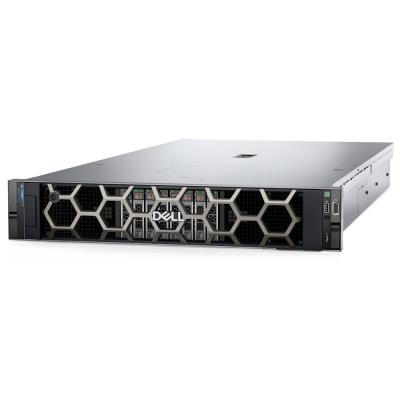

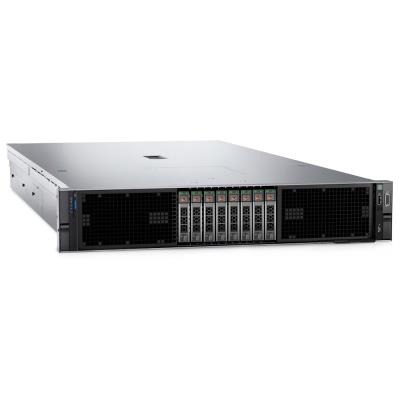

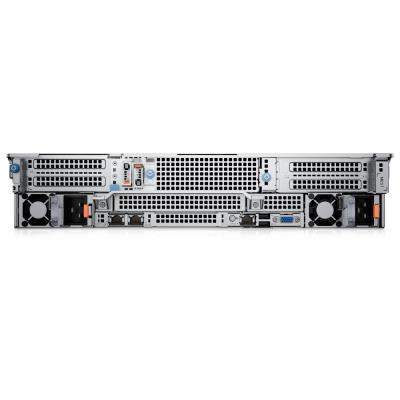

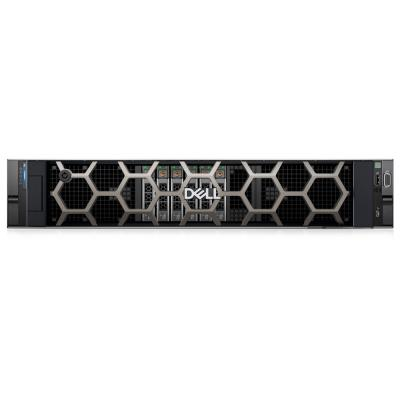

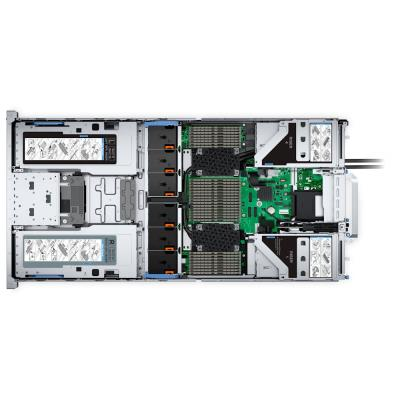

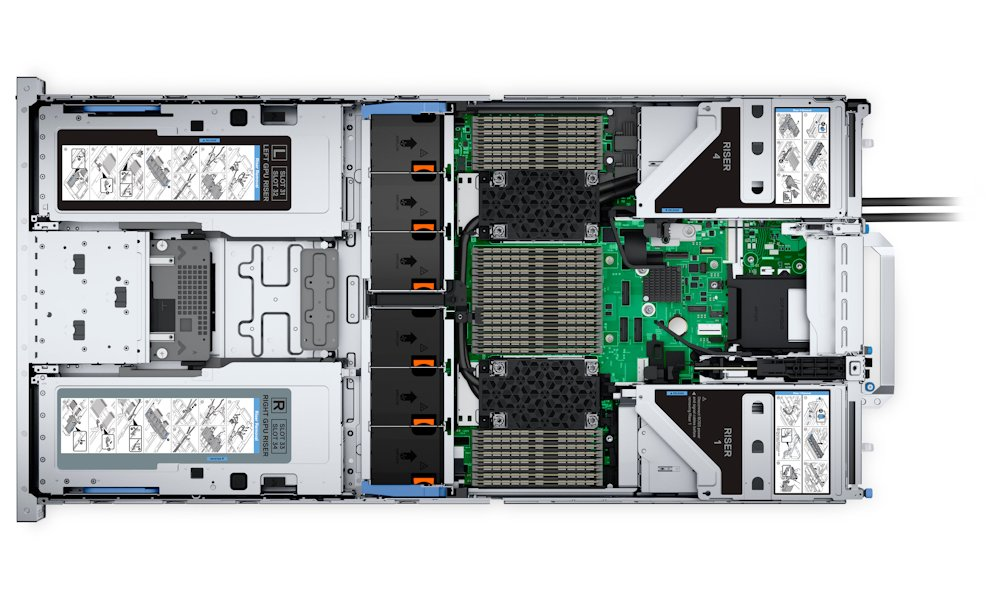

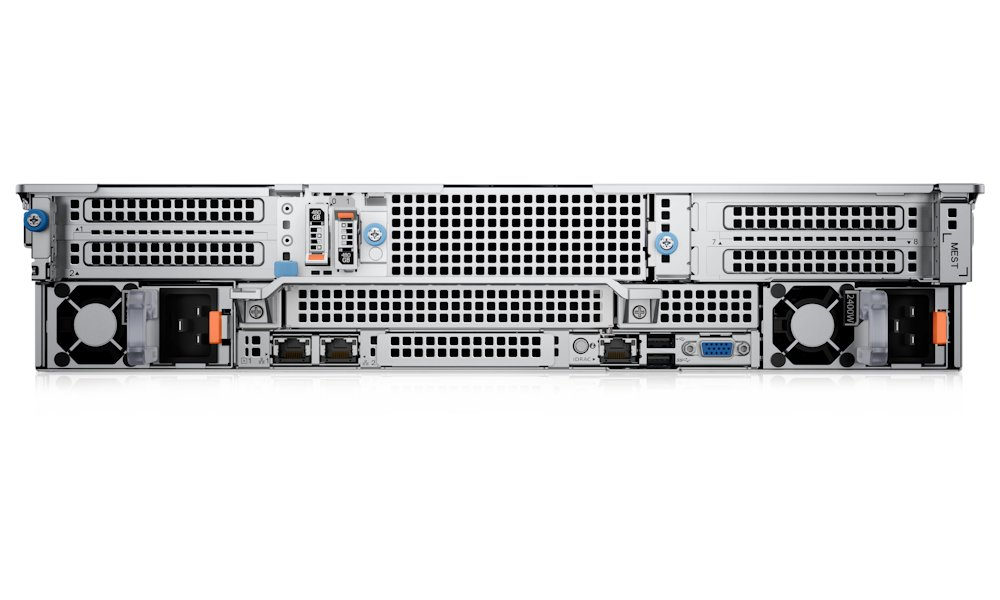

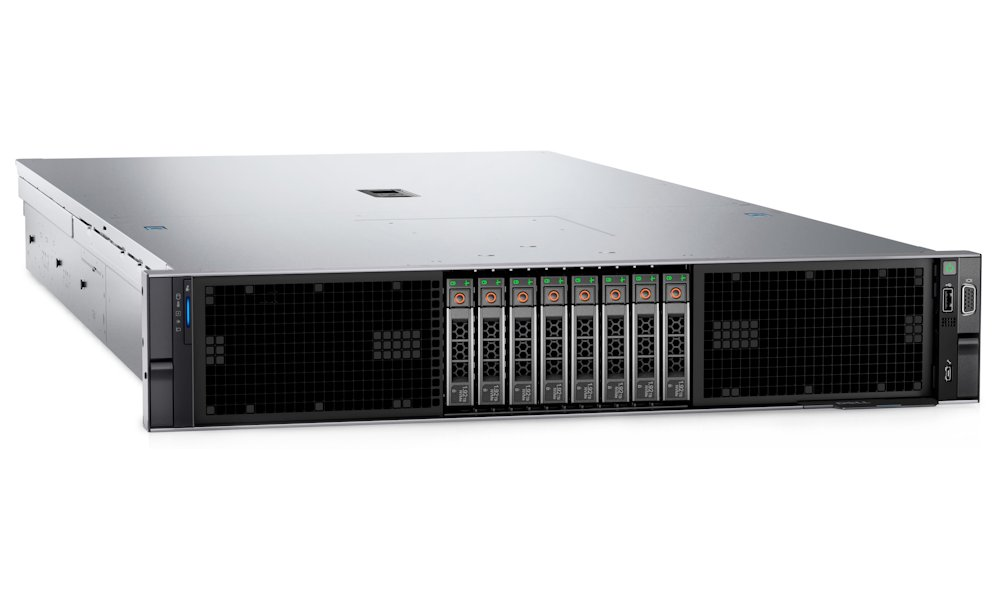

Dell PowerEdge R760xa

Powerful 2U rack server designed for demanding GPU applications and AI/ML workload acceleration.

Dell PowerEdge R760xa represents a high-performance server designed for maximum acceleration performance across a wide range of customer needs. This purpose-built system supports up to two Intel Xeon Gold 5416S processors with 16 cores and 32 threads, providing massive computing power for the most demanding tasks.

The server is equipped with eight 32GB RDIMM memory modules running at 5600 MT/s and two 480GB SSDs in RAID 1 configuration. The main advantage of this server is support for up to four powerful NVIDIA Ampere A16 GPUs, each providing 64 GB of memory and ideal for virtualization, VDI graphics, and AI/ML applications.

  • Two powerful Intel Xeon Gold 5416S processors with 16 cores and 32 threads
  • 256 GB of DDR5 memory at 5600 MT/s for high data throughput
  • Support for up to 4 powerful NVIDIA Ampere A16 GPUs with a total of 256 GB memory
  • Redundant 2800W power supplies with Titanium certification for maximum efficiency
  • Advanced PERC H965i controller for optimal storage performance
  • Highly reliable storage with two 480GB SSDs in RAID 1 configuration
  • iDRAC9 Enterprise with 16GB memory for advanced remote management
  • Integrated Broadcom 5720 network adapter with four 1GbE ports

Innovation in scalability for demanding workloads
PowerEdge R760xa maximizes your workload performance with flexible support for a wide range of GPUs in a dual-socket/2U air-cooled server. It accelerates applications from AI training and inferencing to digital twins and demanding user collaboration environments.

Accelerated I/O throughput
Deployment of the latest technologies including DDR5, PCIe Gen 5, and E3.S NVMe SSDs pushes the boundaries of data flow and computing possibilities. The server supports up to 32 DDR5 memory DIMM slots, up to eight drives, and PCIe Gen 5 expansion slots.

Cyber Resilient Architecture
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors boot resilience, while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.

BASIC SPECIFICATIONS

Processors: 2× Intel Xeon Gold 5416S 2G (16 cores/32 threads, 16GT/s, 30M cache, 150W)
Memory: 8× 32GB RDIMM, 5600MT/s, dual rank (total 256 GB)
Storage: 2× 480GB SSD SATA Read Intensive 6Gbps in RAID 1
GPU accelerators: 4× NVIDIA Ampere A16, 64GB, 250W
Network interface: Broadcom 5720 Quad Port 1GbE BASE-T, OCP NIC 3.0
Power supply: 2× redundant hot-plug 2800W Titanium (200-240Vac)
System management: iDRAC9 Enterprise 16G
Dimensions: 86.8 × 482 × 946.73 mm (height × width × depth)
Form factor: 2U rack server with ReadyRails sliding rails
Service: ProSupport and Next Business Day Onsite Service, 36 months

Brand
Type specification :  Server
Manufacturer :  DELL
Processor
CPU type :  Intel® Xeon®
CPU model :  Gold 5416S
Processor Base Frequency (GHz) :  2.0
Max Turbo Frequency (GHz) :  4,0
Number of Cores :  16
Socket :  4677
Počet patic procesorů :  2
TDP (W) :  150
Počet procesorů :  2
Memory
Memory Module Type :  DDR5
RAM Speed (MHz) :  5600
Number of memory slots :  32
Number of available memory slots :  24
Memory Kit :  8× 32 GB
RAM Capacity (GB) :  256
Graphics card
GPU Core :  NVIDIA A16
Graphics Card Memory Type :  GDDR6
Graphics memory (GB) :  64
GPU type :  dedikovaná
HDD capacity (GB) :  480
HDD size :  3,5"
SSD technology :  yes
HDD II. kapacita (GB) :  480
Kapacita osazených disků (GB) :  960
Počet diskových pozic :  8
Communication
Bluetooth :  no
LAN :  yes
Wi-Fi :  no
Inputs and outputs
RJ-45 :  3
Serial port :  1
USB 2.0 (front) :  1
USB 2.0 (rear) :  1
USB 3.0 (rear) :  1
VGA :  2
Card reader
Memory Card reader :  no
Bus
PCI Express X16 :  12
Case
Formát Rack :  2U
Case Size :  rack 19"
Power supply
Max. power supply wattage (W) :  2800
Operating system
Operating System :  no
Warranty
Warranty period EU (months) :  36
Warranty period CRN (months) :  36
Security
Kensington Security Slot :  no
Physical properties
Color :  černá - stříbrná
Dimensions :  946,73 × 482 × 86,8 mm
