DELL Edge Gateway 5200/ i7-9700TE/ 32GB/ 512GB SSD/ Win IoT/ 3Y PS on-site

148 256 CZK 122 525 CZK without VAT

After order for 2 weeks

Code: PCD18720 PN: Edge-5200-CTO Warranty: 36 months
Výrobce: DELL
Dell EMC Edge Gateway 5200 Powerful industrial gateway with Intel Core i7 processor for edge data processing. Dell EMC Edge Gateway 5200 represents a... more

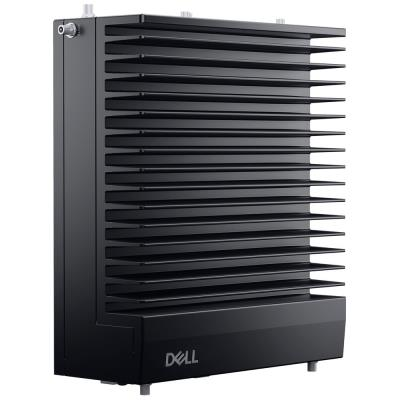

Dell EMC Edge Gateway 5200

Powerful industrial gateway with Intel Core i7 processor for edge data processing.

Dell EMC Edge Gateway 5200 represents a robust solution for collecting, consolidating, and analyzing data from edge devices. Equipped with 9th generation Intel Core i7-9700TE processor and 32 GB DDR4 memory, it provides sufficient performance for processing demanding tasks directly at the network edge, enabling immediate response to critical events and saving bandwidth.

The device is designed for continuous operation in challenging conditions and meets military standards MIL-STD-810G for shock and vibration resistance. With Windows 10 IoT Enterprise operating system and 512GB SSD drive, it offers a reliable platform for industrial applications and OT/IT environment integration without infrastructure interruption.

The gateway features rich connectivity including 3 gigabit Ethernet ports, serial interfaces, and various USB ports, allowing connection to a wide range of sensors and industrial devices. Security is ensured by the integrated TPM 2.0 module for sensitive data protection.

  • Powerful 8-core Intel Core i7-9700TE processor with frequency up to 3.8 GHz
  • 32 GB DDR4 memory and 512 GB SSD storage for fast data processing
  • Robust design with operating temperature from 0 to 60 °C for demanding environments
  • Rich connectivity including 3× Intel GbE, 2× DisplayPort, DVI-D, and VGA
  • Support for up to three independent displays for comprehensive monitoring
  • Digital I/O with 8 input and 8 output channels
  • Security features with TPM 2.0 module for data protection
  • Compact fanless design with dimensions 211 × 240 × 86 mm
  • ProSupport with Next Business Day On-Site Service for 36 months

Ready for demanding environments
Dell EMC Edge Gateway 5200 is tested to MIL-810G standards and withstands temperatures from 0 to 60 °C (with airflow 0.6 m/s). Its fanless design ensures reliable 24/7/365 operation without the risk of moving parts failure.

Bridging OT/IT worlds
The gateway enables connection between traditional industrial systems and modern sensors to the internet, accelerating data collection and processing at the network edge. With support for standard protocols, it ensures compatibility with a wide range of sensor networks and control systems.

Security first
The integrated TPM 2.0 module provides hardware-based security for protecting sensitive data and credentials. The device is designed with cybersecurity resilience in line with Dell Technologies' comprehensive security portfolio.

BASIC SPECIFICATIONS

Processor: Intel Core i7-9700TE (up to 3.8 GHz, 8 cores)
Memory: 32 GB DDR4
Storage: 512 GB SSD
Operating system: Windows 10 IoT Enterprise LTSC 2019
Graphics outputs: 2× DisplayPort++, DVI-D, VGA (support for three independent displays)
Network interface: 3× Intel GbE (2× i210 + i219LM PHY)
Serial ports: COM1/2: RS-232/422/485, COM3/4: RS-232
USB ports: 6× external (2× USB 3.1 Gen2, 1× USB 3.1 Gen1, 3× USB 2.0), 1× internal USB 2.0
Digital I/O: 8 input and 8 output channels
Expansion slots: 1× full size PCIe, 1× M.2 socket, 2× nanoSIM slot
Audio: line-out, mic-in
Security: TPM 2.0
Operating temperature: 0 to 60 °C (with airflow 0.6 m/s)
Durability: MIL-STD-810G certification for vibration and shock
Power supply: 12–24 V (±10% tolerance)
Dimensions: 211 × 240 × 86 mm
Weight: 4.7 kg
Service: ProSupport and Next Business Day On-Site Service for 36 months

Brand
Type specification :  Počítač
Manufacturer :  DELL
Processor
CPU type :  Intel® Core™ i7
CPU model :  9700TE
Processor Base Frequency (GHz) :  1.8
Max Turbo Frequency (GHz) :  3,8
Number of Cores :  8
Socket :  1151
TDP (W) :  35
Memory
Memory Module Type :  DDR4
Memory Kit :  1× 32 GB
RAM Capacity (GB) :  32
Chipset
Chipset :  Intel C246
Graphics card
GPU Core :  Intel UHD 630
GPU type :  integrovaná
System disc
HDD Size (drive 1) :  M.2
Solid State Drive (SSD) (drive 1) :  yes
HDD Capacity (GB) (drive 1) :  512
Multimedia
Built-in speaker :  no
Built-in microphone :  no
Communication
Bluetooth :  yes
Bluetooth version :  5.2
LAN :  yes
LAN Standard :  Gigabit
Wi-Fi Standard :  802.11be
Wi-Fi :  yes
Inputs and outputs
Analog audio input/output :  2
DisplayPort :  2
DVI-D :  1
RJ-45 :  3
Serial port :  2
USB 2.0 (front) :  3
USB 3.0 (front) :  1
USB 3.1 (front) :  2
VGA :  1
Card reader
Memory Card reader :  no
Power supply
Max. power supply wattage (W) :  180
Operating system
Operating system (pre-installed) :  Windows 10 IoT Enterprise
Operating System :  yes
Warranty
Warranty period EU (months) :  36
Warranty period CRN (months) :  36
Physical properties
Color :  černá
Weight (kg) :  4.7
Dimensions :  211 × 240 × 86 mm
Pedestal and mount
VESA :  no
