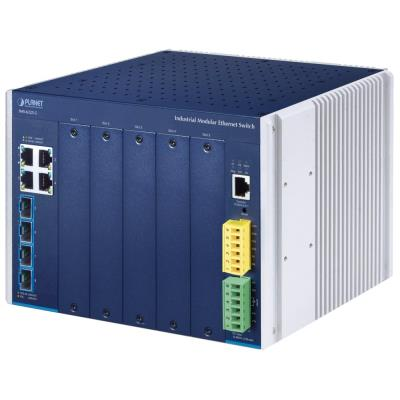

Planet IMS-6325-5 průmyslový L3 modulární switch, 4x1G, 5 slotů pro přídavné moduly IMS, IP30, -40~75°C, Dual 12~48VDC

90 040 CZK 74 413 CZK without VAT

Unknown availability

Code: NETPLA2588 PN: IMS-6325-5 Warranty: 60 months
Výrobce: PLANET Technology
Planet IMS-6325-5 průmyslový L3 modulární switch, 4x1G, 5 slotů pro přídavné moduly IMS, IP30, -40~75°C, Dual 12~48VDC
Brand
Type specification :  Switch
Manufacturer :  PLANET Technology
Technical specification
Management :  yes
OSI layer :  L3 dynamic
Fanless :  yes
IGMP :  yes
Switching capacity (Gbps) :  88
IPv6 support :  ano
Podpora MODBUS :  yes
Homologation EN50155 :  no
PoE-in :  ne
PoE-out :  ne
Outdoor use :  no
Max. operating temperature (°C) :  75
Min. operating temperature (°C) :  -40
Placement :  DIN lišta
Placement :  na zeď
Switch throughput (Mpps) :  95,2
Ingress protection :  IP30
Stackable :  ne
Display
Display :  no
Network interfaces
Gigabit LAN :  yes
LAN :  yes
Port Speed :  1 Gb/s + 10 Gb/s
Inputs and outputs
Total number of ports :  9
RJ-45 :  4
Interface :  LAN, SFP+
RJ-45 konzole/management (počet) :  1
RS-232 port :  yes
SFP+ :  4
Card reader
MicroSD card support :  no
Power supply
PoE support :  no
Power type :  duální
Power type :  redundantní
Input Voltage (V) :  12 - 48 (DC)
Warranty
Warranty period EU (months) :  60
Warranty period CRN (months) :  60
Physical properties
Color :  modrá - stříbrná
Weight (g) :  3590
Dimensions :  217 × 152 × 135 mm
Additional equipment and features
Certification mark :  FCC, CE
