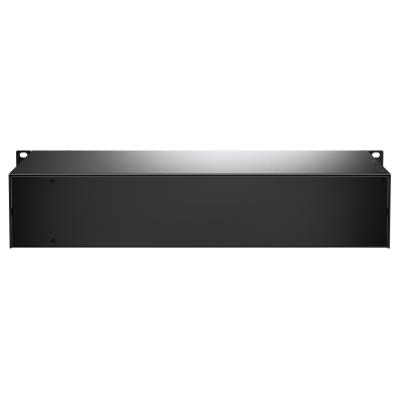

TP-Link DS-P8000-X2 - DeltaStream Chassis-X2 OLT, up to 32x GPON, 6x10G SFP+, 1x GLAN

Add recension
149 990 CZK 123 959 CZK without VAT

Unknown availability

Code: NAPTPL1164 PN: DS-P8000-X2 Warranty: 60 months
Výrobce: TP-LINK
TP-Link DS-P8000-X2 The Optical Line Terminal OLT is the central unit for building a GPON network. It contains two control units and two slots for service boards (e.g. DS-LGPA-16 and DS-LGPA-08), which can offer up to 32... more
Count:
Add to Cart

Favorites
Compare
Print
Send to friend
TP-Link DS-P8000-X2

The Optical Line Terminal OLT is the central unit for building a GPON network. It contains two control units and two slots for service boards (e.g. DS-LGPA-16 and DS-LGPA-08), which can offer up to 32 GPON ports or 32× XGS-PON & GPON combined ports. It supports a splitting ratio of 1 : 128 for GPON services and 1 : 256 for XGS-PON. It supports redundant power supply AC 100–240 V and DC -38.4–57.6 V.

  • 32× PON ports: 2× service boards support up to 32 GPON ports or 32× XGS-PON & GPON combined ports.
  • High scalability: Supports a splitting ratio of up to 1 : 128 for GPON and 1 : 256 for XGS-PON, allowing connection of a large number of users.
  • High reliability: Two main control units ensure automatic service switching without interruption.
  • High-speed uplink ports: Offers six 10G SFP+ ports (one for each control unit) for high-capacity network connections.
  • Dual power supplies: Operator-level reliability with replaceable AC+DC power supply.
  • L2 & advanced L3 features: Meets a variety of commercial needs.
  • Centralized management: Supports management via DeltaStream PON Management System (DPMS), SNMP, CLI, and web interface.

GPON attributes:
Max. splitting ratio: 1 : 128 for GPON
Max. splitting ratio: 1 : 256 for XGS-PON
Transmission distance: 20 km
Data transfer rate for GPON: Downstream: 2.5 Gb/s, Upstream: 1.25 Gb/s
Data transfer rate for XGS-PON: Downstream: 9.953 Gb/s, Upstream: 9.953 Gb/s
Wavelength for GPON: Tx - 1490 nm, Rx - 1310 nm

The package includes 2× power cables (AC + DC), mounting brackets, screws, rubber feet, and a console cable.

SPECIFICATIONS

Interface: 2× service board slots, 2× control units (6× 10G SFP+, 1× GbE RJ-45, 1× RJ-45 management port, 1× console port RJ-45, 1× alarm port)
Power: dual, AC 100–240 V (50/60 Hz), DC -38.4–57.6 V
Power consumption: max. 262 W
Operating temperature: 0 to +50 °C
Dimensions: 443 × 271.3 × 88 mm

Brand
Type specification :  PON - GPON
Manufacturer :  TP-LINK
Technical specification
Wavelength (nm) :  1490/1310
Network interfaces
Port Speed :  10 Gb/s
Inputs and outputs
RJ-45 :  2
SFP+ :  12
Power supply
Input voltage (V) :  100-240 (AC)
Input voltage (V) :  -38,4–57,6 (DC)
Power type :  dual
Power type :  internal power supply
Warranty
Warranty period EU (months) :  60
Warranty period CRN (months) :  60
Physical properties
Color :  black
Depth (mm) :  271.3
Dimensions :  443 × 271,3 × 88 mm
Width (mm) :  443
Height (mm) :  88
