Unknown availability

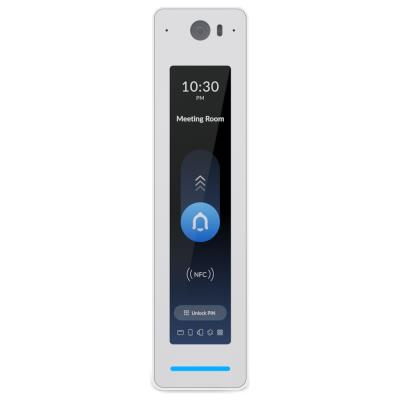

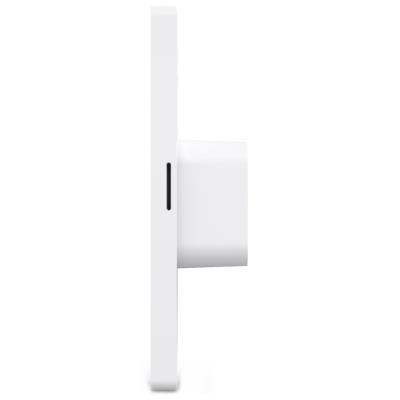

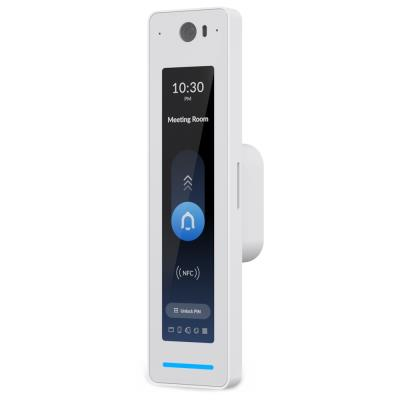

Third-generation, indoor/outdoor NFC reader and intercom with Apple Touch Pass support.
The UniFi Network app enables the configuration and management of UniFi devices. It is pre-installed on UniFi OS Consoles (such as UniFi Dream Machine, Dream Router, Dream Wall, Express, Cloud Gateway Ultra, etc.). Alternatively, you can use the free UniFi Network Server software, which is available for installation on your own computer or server (Windows, macOS, Linux). The UniFi Network Server software is continuously improved, and it is recommended to always use the latest version, which can be downloaded from the Ubiquiti website in the Download section. Learn more about this product at Ubiquiti training.
SPECIFICATIONS

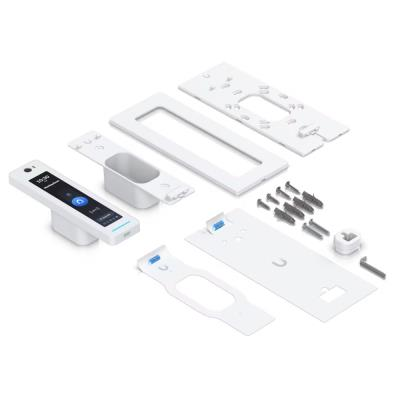

Mounting: Wall mount (Included), Gangbox mount (Included)

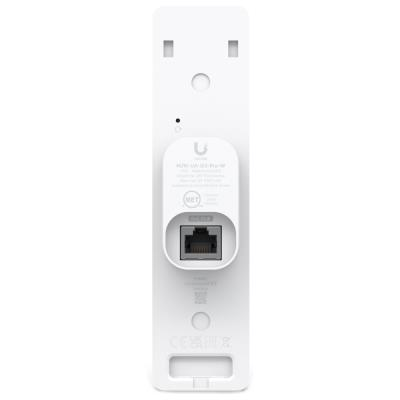

Interface: 1× GbE RJ-45, Bluetooth 4.2, NFC (13.56 MHz, MIFARE)
Standards: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
Technologies:
Manual (Installation Guide):
dl.ui.com/qig/ua-g3-pro-w
Brand | |
Type specification : | Reader |
Manufacturer : | UBIQUITI |
Technical specification | |
Outdoor use : | yes |
Max. operating temperature (°C) : | 45 |
Min. operating temperature (°C) : | -10 |
Placement : | Wall mount |
Control | |
Communication interface : | LAN |
Numeric keypad : | no |
Autonomous : | no |
Inputs and outputs | |
Interface : | LAN, Bluetooth, NFC |
Power supply | |
Input voltage (V) : | 48 (PoE) |
PoE support : | yes |
Power consumption - typical (W) : | 6 |
Warranty | |
Warranty period EU (months) : | 26 |
Warranty period CRN (months) : | 26 |
Security | |
Smart Card Reader : | yes |
RFID standard : | 13,56 MHz |
Fingerprint Reader : | no |
Physical properties | |
Color : | white |
Weight (g) : | 136 |
Dimensions : | 160 × 40,55 × 40,4 mm |
Additional equipment and features | |
Certification mark : | CE, FCC, IC |
