Ubiquiti 100G PSM4 Single-Mode Optical Module

5 303 CZK 4 383 CZK without VAT

Unknown availability

Code: NAOUBT1053 PN: UACC-OM-QSFP28-PSM4 Warranty: 26 months
Výrobce: UBIQUITI
Ubiquiti UACC-OM-QSFP28-PSM4 QSFP28 transceiver that supports 100G connections up to 2 km using single-mode fiber with an MPO-12 APC connector. Max data rate: 100 Gbps Compatible with QSFP28 and QSFP+ interfaces MPO... more

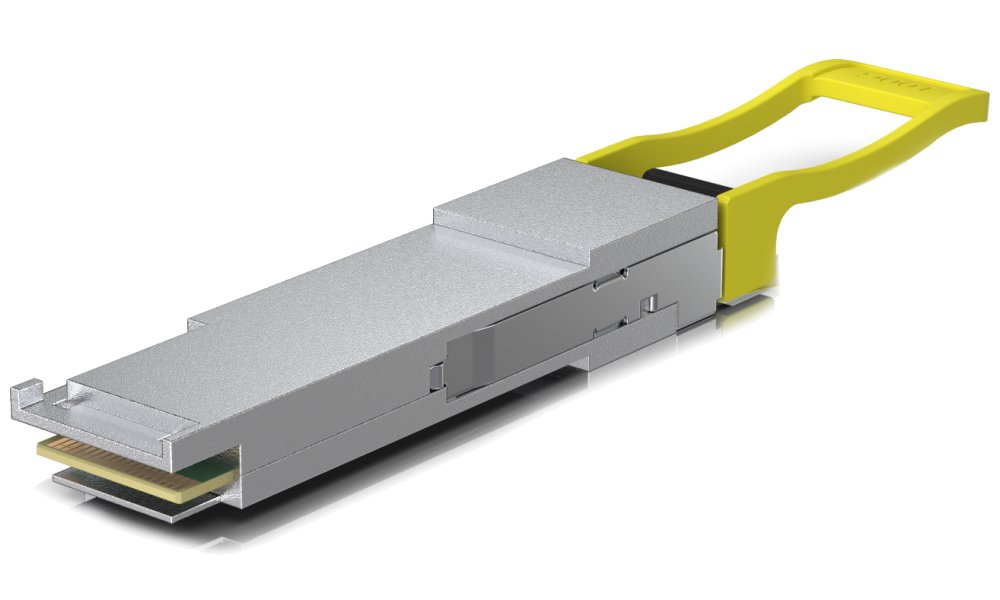

Ubiquiti UACC-OM-QSFP28-PSM4

QSFP28 transceiver that supports 100G connections up to 2 km using single-mode fiber with an MPO-12 APC connector.

  • Max data rate: 100 Gbps
  • Compatible with QSFP28 and QSFP+ interfaces
  • MPO-12 Type B APC connector
  • Supports single-mode fiber connections up to 2 km*

*Requires OS2 single-mode fiber. Transmission distance is limited to 500 m with OS1 single-mode fiber. Fiber cable is not included.

Technical Specification

Supported media: Single-mode fiber
Connector type: MPO 1x12
TX wavelength: 1310 nm
RX wavelength: 1310 nm
Data rate: 100 Gbps
Max. power consumption: 3.5W
Cable distance: 2 km
Ambient operating temperature: 0 to 70° C (32 to 158° F)

Brand
Type specification :  Optical module
Manufacturer :  UBIQUITI
Technical specification
Max. operating temperature (°C) :  70
Min. operating temperature (°C) :  0
Network interfaces
Cable distance :  2 km
SFP module compatibility :  Ubiquiti
SFP module speed :  100 Gbps
Port Speed :  100 Gb/s
Module type :  QSFP28
Connector type :  MPO
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
Physical properties
Fiber type :  singlemode
