TP-Link XZ005-G6 GPON, 1x 2,5GLAN

1 199 CZK 991 CZK without VAT

In stock To send

Code: NARTPL1198 PN: XZ005-G6 Warranty: 36 months
Výrobce: TP-LINK
TP-Link XZ005-G6 The TP-Link XZ005-G6 is a GPON terminal with XPON support, offering a dual-mode EPON + GPON configuration for enhanced flexibility in internet access via optical fiber. This device is ideal for Fiber to the... more
TP-Link XZ005-G6

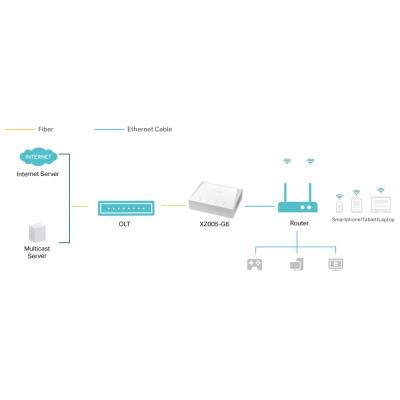

The TP-Link XZ005-G6 is a GPON terminal with XPON support, offering a dual-mode EPON + GPON configuration for enhanced flexibility in internet access via optical fiber. This device is ideal for Fiber to the Home (FTTH) solutions. Equipped with one PON port and one 2.5-Gigabit Ethernet port, it provides high-speed routing to ensure smooth VoIP calls and HD video streaming. Additionally, it supports the OMCI protocol, enabling easier activation, configuration, and remote management.

  • High-Speed GPON Access: Delivers multi-gigabit internet access at speeds of up to 2.5 Gbps downstream and 1.25 Gbps upstream.
  • XPON Support: Dual EPON + GPON mode offers greater flexibility for internet access via optical fiber.
  • 2.5G Wired Connectivity: A 2.5 GbE LAN port enables fast network sharing and reliable connections.
  • Long Service Life: Features an intelligent power-saving method.
  • Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management.

BASIC SPECIFICATIONS

IEEE Standards: IEEE 802.3, 802.3u, 802.1p, 802.1Q
GPON Standards: ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4
Data Transfer Rate (Optical):
GPON: 2.488 Gbps (downstream), 1.244 Gbps (upstream)
EPON: 1.25 Gbps (downstream), 1.25 Gbps (upstream)
Wavelength: 1310 nm (upstream), 1490 nm (downstream)
Range: 20 km

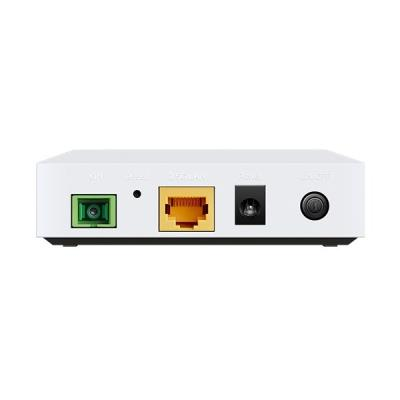

Ports: 1× 2.5Gbit RJ-45 LAN, 1× PON (SC/APC)
Security: AES encryption, VLAN packet filtering
Power Supply: DC 9 V / 0.6 A (power adapter included)
PoE Support: No
Dimensions: 95 × 75 × 29.3 mm

Brand
Type specification :  PON - GPON
Manufacturer :  TP-LINK
Technical specification
Wavelength (nm) :  1490/1310
Network interfaces
Port Speed :  2,5 Gb/s
Inputs and outputs
RJ-45 :  1
PON (počet) :  1
Power supply
Input voltage (V) :  9 (DC)
Power type :  external power adapter
Warranty
Warranty period EU (months) :  36
Warranty period CRN (months) :  36
Physical properties
Color :  white
Depth (mm) :  75
Dimensions :  95 × 75 × 29,3 mm
Width (mm) :  95
Height (mm) :  29.3
