Solarmi Connection cable 2 m solar MC4 M/F (4mm/25A)

161 CZK 133 CZK without VAT
Common price: 167 CZK

In stock To send

Code: SOPSMI0029 PN: S2FM/4/MC4 Warranty: 26 months
Výrobce: XTEND Solarmi
GWL S2FM/4/MC4 Cable for connecting solar panels, controllers, etc. The cable has a length of 2 m and crimped MC4 connectors (male and female). The recommended maximum current (load) is 25 A and resistance up to 1000 V (DC)... more
GWL S2FM/4/MC4

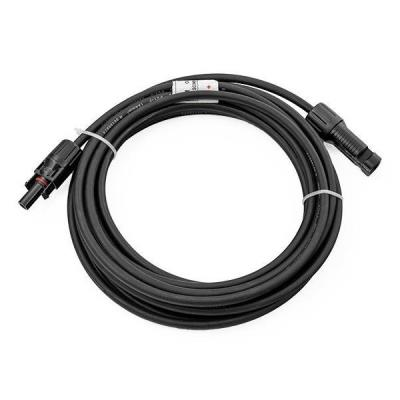

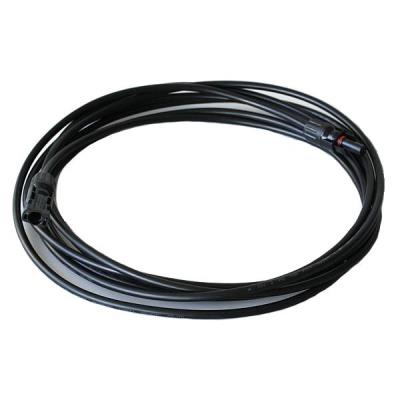

Cable for connecting solar panels, controllers, etc. The cable has a length of 2 m and crimped MC4 connectors (male and female). The recommended maximum current (load) is 25 A and resistance up to 1000 V (DC). This is a flexible interconnect cable designed for solar applications.

SPECIFICATIONS

Connectors: 2× MC4 (male/female)
Cable length: 2 m
Maximum voltage: DC 1000 V
Contact resistance: < 0,3 m/ohm
Safety Class: Class II
Ingress protection class: IP65
Temperature range: -40 to +85 °C
Wire cross-section: 4 mm2
Recommended max. current: 25 A

Brand
Type specification :  Cable
Manufacturer :  XTEND Solarmi
Technical specification
Max. operating temperature (°C) :  85
Min. operating temperature (°C) :  -40
Inputs and outputs
Connector :  MC4
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
Physical properties
Cable length (m) :  2
