Unknown availability

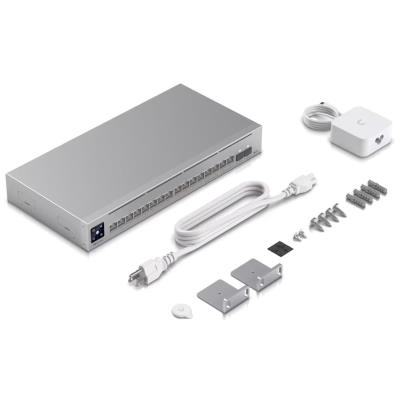

UniFi Switch (USW-Pro-Max-16) is ideal for small and medium-sized businesses that require a reliable L3 managed switch in a professional design without fans and flexible mounting options for wall, desk, or rack installation (requires optional accessories).

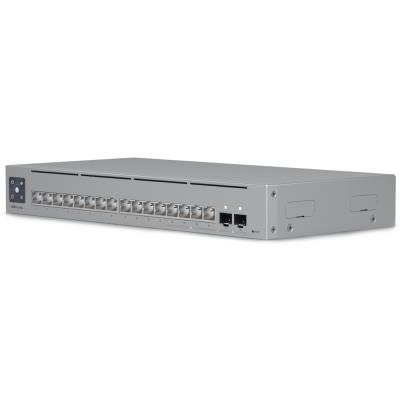

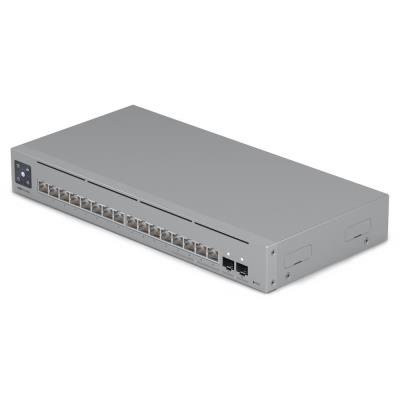

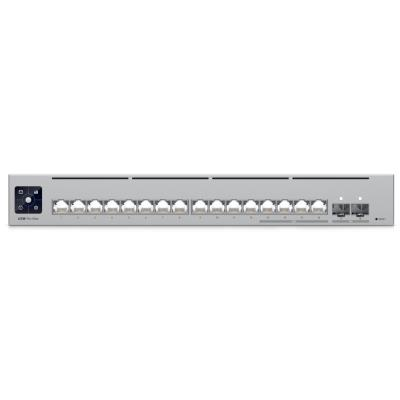

Build your network with the Ubiquiti Networks UniFi Switch series. The UniFi Switch Pro Max 16 is a high-performance, multigigabit switch from Ubiquiti's UniFi series, featuring a 1.3" touch LCM display for easy control.

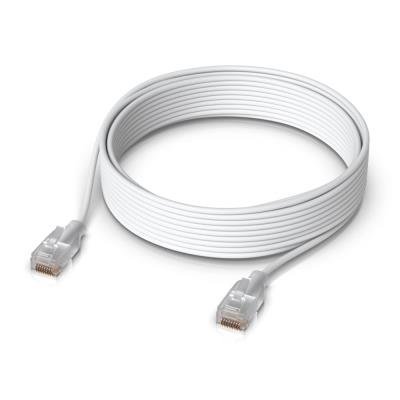

One of the greatest advantages of this switch is the Etherlighting ports, which indicate port location, speed/link, and native VLAN/network (for optimal brightness, use UniFi Etherlighting cables).
The UniFi Network application allows configuration and management of UniFi devices. It comes pre-installed on UniFi OS Consoles (UniFi Dream Machine, Dream Router, Dream Wall, Express, Cloud Gateway Ultra, etc.). Alternatively, the free UniFi Network Server software is available for installation on your own computer or server (Windows, MacOS, Linux). The UniFi Network Server software is constantly being improved, so we recommend always using the latest version available on the Ubiquiti website in the Download section. More information about this product can also be found at Ubiquiti training.
Layer 2 Features:
Layer 3 Features:
BASIC SPECIFICATIONS

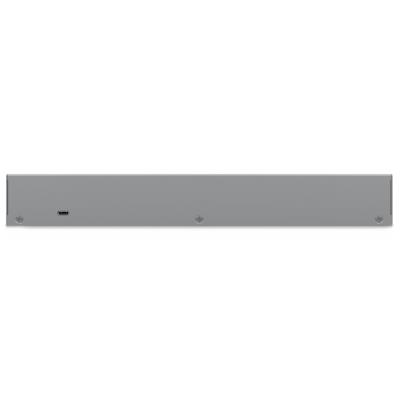

Ports: 12× 1Gbps RJ-45, 4× 2.5Gbps RJ-45, 2× 10Gbps SFP+, 1× USB-C (power)
Switch Capacity: 84 Gbps
PoE Support: No
Dimensions: 325.1 × 160 × 43.7 mm
Weight: 1.95 kg
Manual (Installation Guide):
dl.ui.com/qig/usw-pro-max-16
Brand | |
Type specification : | Switch |
Manufacturer : | UBIQUITI |
Technical specification | |
Management : | yes |
OSI layer : | L3 static (L2+) |
Fanless : | yes |
IGMP : | yes |
Switching capacity (Gbps) : | 84 |
Homologation EN50155 : | no |
Outdoor use : | no |
Max. operating temperature (°C) : | 40 |
Min. operating temperature (°C) : | -5 |
Placement : | desktop |
Placement : | wall mounting |
Switch throughput (Mpps) : | 62,496 |
Stackable : | ne |
Display | |
Display : | yes |
Network interfaces | |
Gigabit LAN : | yes |
LAN : | yes |
Port Speed : | 1 Gb/s + 2,5 Gb/s + 10 Gb/s |
Inputs and outputs | |
RJ-45 : | 16 |
RS-232 port : | no |
SFP+ : | 2 |
Card reader | |
MicroSD card support : | no |
Power supply | |
PoE support : | no |
Power type : | external adapter |
Input Voltage (V) : | 5 (DC) |
Warranty | |
Warranty period EU (months) : | 26 |
Warranty period CRN (months) : | 26 |
Physical properties | |
Color : | silver |
Weight (g) : | 1950 |
Dimensions : | 325,1 × 160 × 43,7 mm |
Additional equipment and features | |
Certification mark : | CE, FCC, IC |
