Tigo TS4-A-O Optimizer / Panels up to 700W / 16-80V / MC4

Add recension
1 320 CZK 1 091 CZK without VAT
Common price: 1 325 CZK

In stock To send

Code: OPTTIG0003 PN: 462-00252-32 Warranty: 25 year
Výrobce: TIGO
Tigo TS4-A-O Optimizer that improves the production characteristics, safety, and intelligence of both new and existing PV systems. The patented technology provides top performance with high efficiency for a quick return on... more
Count:
Add to Cart

Favorites
Compare
Print
Send to friend

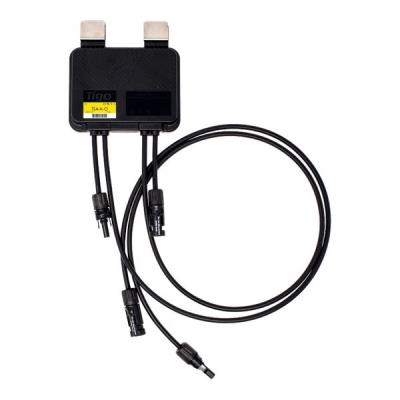

Tigo TS4-A-O

Optimizer that improves the production characteristics, safety, and intelligence of both new and existing PV systems. The patented technology provides top performance with high efficiency for a quick return on investment. In addition to optimization, TS4-A-O allows module-level monitoring and rapid shutdown in compliance with NEC 2014, 2017, 2020 standards. The Tigo Energy Intelligence platform enables quick on-site deployment and comprehensive remote monitoring.

For proper operation, it is necessary to use the optimizer together with Tigo Access Point (TAP) and Cloud Connect Advanced (CCA)

  • Suitable for up to 700W solar modules
  • Provides monitoring and safety features
  • Simple and fast installation – can be mounted to the standard PV module frame or rack
  • Intelligent optimization – optimizes only when necessary
  • Module-level monitoring – complete overview of module and system production
  • Rapid shutdown – UL/NEC certification for rapid shutdown of PV systems (PVRSS)
  • Shadow and aging resilience for maximum yield
  • Fully compatible with various inverter models from over 50 manufacturers
  • Works wirelessly with TAP and CCA devices
  • 25-year warranty

BASIC SPECIFICATIONS

Nominal DC input power: 700 W
Absolute maximum input voltage (Voc): 80 V
Input voltage range: 16–80 V
Maximum input current: 15 A
Maximum system voltage: 1000 V (IEC)
Efficiency: 99.6%
Input and output connectors: MC4
Dimensions: 139.7 × 138.4 × 22.9 mm
Weight: 520 g

Brand
Type specification :  Optimizers from 0.5kg to 1kg
Manufacturer :  TIGO
Technical specification
Ingress protection :  IP68
Power supply
Rated Voltage (V) :  16–80
Warranty
Warranty period EU (months) :  300
Warranty period CRN (months) :  300
Physical properties
Weight (kg) :  0.52
Dimensions :  139,7 × 138,4 × 22,9 mm
