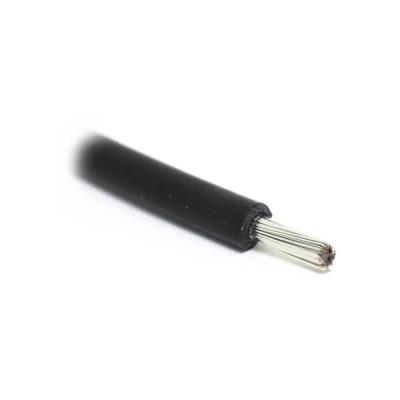

Solarmi Single core solar cable 1800V/32A, 1m, Cross-Section 1× 6mm

Akce
35 CZK 29 CZK without VAT
Common price: 44 CZK

In stock To send

Code: BATGWL0195 PN: SC6-1M-1C Warranty: 26 months
Výrobce: XTEND Solarmi
GWL SC6-1M-1C Single-core cable suitable for solar applications. Standard copper conductor of stranded type (tinned). It is resistant to UV radiation and water, ensuring reliable performance even in demanding conditions. ... more
GWL SC6-1M-1C

Single-core cable suitable for solar applications. Standard copper conductor of stranded type (tinned). It is resistant to UV radiation and water, ensuring reliable performance even in demanding conditions.

  • AWG 10
  • Flammability according to IEC 60332-1, UL 1581 VW-1
  • Cable diameter 7.15 mm
  • Insulation (sheath) - halogen-free
  • TUV approval
  • Weight: 17 kg @ 200m roll

BASIC SPECIFICATIONS

Cross-section (conductor): 6 mm2
Rated max. voltage: DC 1.8 kV | AC 0.6/1 kv
Rated current: max. 32 A
Operating temperature: -40 to +90 °C
Cable length: 1 m (by the meter)

Brand
Type specification :  Other
Manufacturer :  XTEND Solarmi
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
Physical properties
Cable length (m) :  1
