TP-Link TL-SM5110-SR SFP modul 10Gbase-SR SFP+ LC, MM, Trans. 300m

Akce
679 CZK 561 CZK without VAT

In stock To send

Code: NAPTPL1143 PN: SM5110-SR Warranty: 24 months
Výrobce: TP-LINK
TP-Link TL-SM5110-SR SFP+ module TL-SM5110-SR is designed to extend transmission distances based on 10 Gbit/s Ethernet connectivity. It is a high-performance 10G Base-SR transceiver for multi-mode optical fibers (MM) with a... more

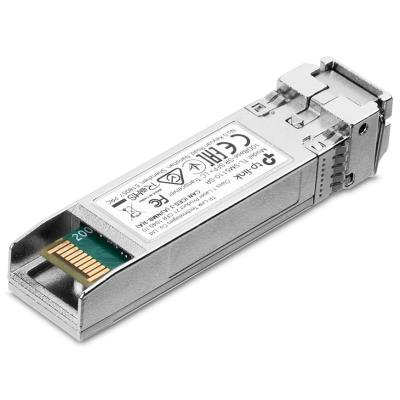

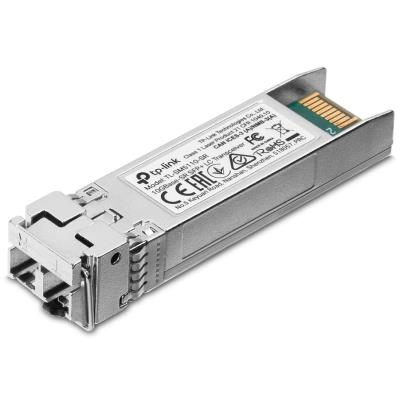

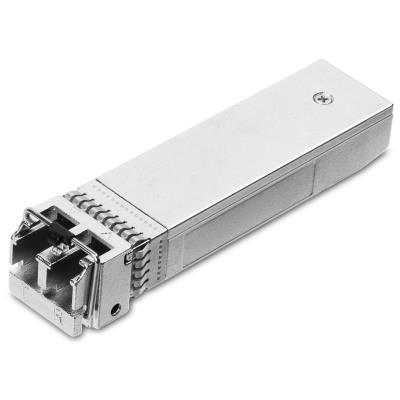

TP-Link TL-SM5110-SR

SFP+ module TL-SM5110-SR is designed to extend transmission distances based on 10 Gbit/s Ethernet connectivity. It is a high-performance 10G Base-SR transceiver for multi-mode optical fibers (MM) with a wavelength of 850 nm and LC connectors. It fully supports duplex, 10G Ethernet connections at distances of up to 300 m using optical cables with 50/125 µm OM3 fibers or up to 33m with 62.5/125 µm OM1 fibers.

  • 10G SFP+ transceiver for multi-mode fibers
  • Hot-Plug pluggable, maximum flexibility
  • Supports Digital Diagnostic Monitoring (DDM)
  • Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA) standard
  • Compatible with switches featuring 10G SFP+ ports (e.g., JetStream TL-SG3428X, TL-SG3428XMP, TL-SG3452X, TL-SG3452XP, TL-SX3206HPP, TL-SX3008F, TL-SX3016F, etc.)

It also features Digital Diagnostic Monitoring (DDM), compliant with SFF-8472 standard, and supports real-time transceiver monitoring.

BASIC SPECIFICATIONS

Format: SFP+
Speed: 10 Gbps
Type: multi-mode
Distance: max. 300 m
Tx/Rx: 850 nm
Connector: 2× LC/UPC

Brand
Type specification :  Optical module
Manufacturer :  TP-LINK
Technical specification
Max. link length (km) :  0,3
Médium :  2 vlákna
Max. operating temperature (°C) :  70
Data Rate (Mbps) :  10000
Min. operating temperature (°C) :  0
Wavelength (nm) :  850
Network interfaces
DDM diagnostics :  yes
Cable distance :  300 m
SFP module compatibility :  universal
SFP module speed :  10 Gbps
Module type :  SFP+
Connector type :  LC
Power supply
Input voltage (V) :  3,3
Warranty
Warranty period EU (months) :  24
Warranty period CRN (months) :  24
Physical properties
Type of optical fiber :  duplex
Fiber specification :  50/125um
Fiber specification :  62,5/125um
Temperature resistance :  běžná
Fiber type :  multimode
Vysílací vlnová délka :  850 nm
