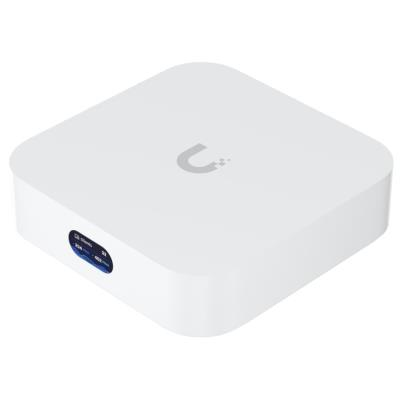

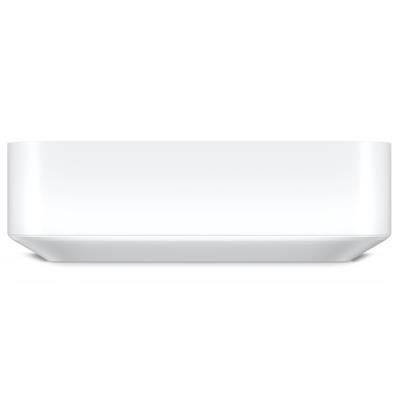

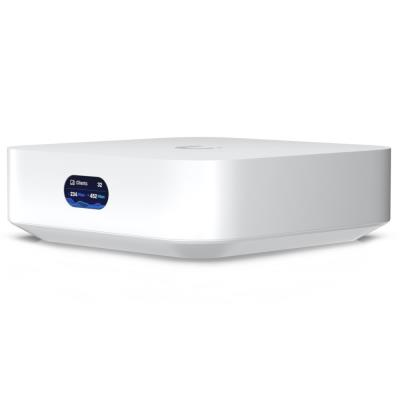

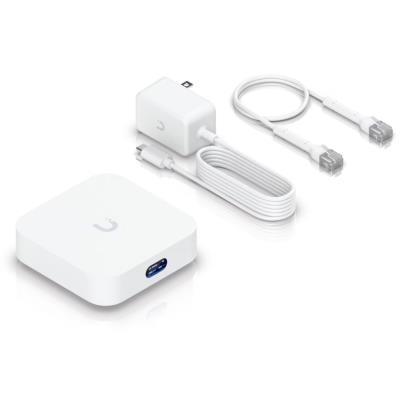

The powerful and compact UniFi Network gateway serves as an All-in-One gateway, firewall, and Wi-Fi 6 access point. The integrated access point utilizes the 802.11ax (Wi-Fi 6) standard, offering a transfer speed (aggregated throughput) of up to 2.97 Gbps and covering an area of up to 140 m2 with its signal. Need more Wi-Fi coverage? No problem, simply add additional UX units for seamless coverage expansion by creating a Mesh network. With integrated antennas boasting a gain of 5.15 dBi (5 GHz) and 4 dBi (2.4 GHz), it provides reliable bidirectional communication between the AP and over 60 clients. UniFi Express has an integrated UniFi Network app to manage up to 4 UniFi devices (APs and switches). To further expand your network with UniFi Protect and UniFi Access security or access devices, add a UniFi Cloud Key or UniFi NVR server.
The UniFi Express offers mostly the same features as other UniFi gateways, including powerful network segmentation, application firewall, VPN, or Site Magic SD-WAN functionality without a license. The only exceptions are Suspicious Activity features (also known as IDS/IPS), which are not available on UniFi Express. When operated as a gateway, UniFi Express manages up to four additional UniFi Network devices such as other UniFi Express units, switches, and Wi-Fi access points. UniFi Express can also be deployed as a Wi-Fi access point in existing UniFi Networks with a wired or wireless uplink.
Additional features and benefits:
Create a Mesh network between multiple UX units:
BASIC SPECIFICATIONS
Standard: 802.11a/b/g/n/ac/ax
Data Transfer Rate: 2.4 GHz - 573.5 Mb/s, 5 GHz - 2.4 Gb/s
Antenna: 2×2 MU-MIMO, integrated antenna 4 dBi (2.4 GHz) + 5.15 dBi (5 GHz)

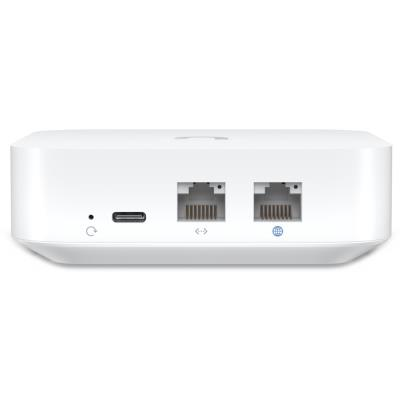

Ports: 1× GbE RJ-45 LAN, 1× GbE RJ-45 WAN, 1× USB-C (power)
Supports PoE: No
Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
Dimensions: 98 × 98 × 30 mm
Weight: 302 g
Manual (Installation Guide):
https://dl.ui.com/qig/ux
Brand | |
Type specification : | Access point |
Manufacturer : | UBIQUITI |
Technical specification | |
Fanless : | yes |
PoE-in : | ne |
PoE-out : | ne |
Outdoor use : | no |
Indoor use : | yes |
Max. operating temperature (°C) : | 45 |
Data Rate (Mbps) : | 2400 (5GHz), 573,5 (2,4GHz) |
Min. operating temperature (°C) : | -10 |
Placement : | desktop |
Gain (dBi) : | 4 (2,4GHz), 5,15 (5GHz) |
Display | |

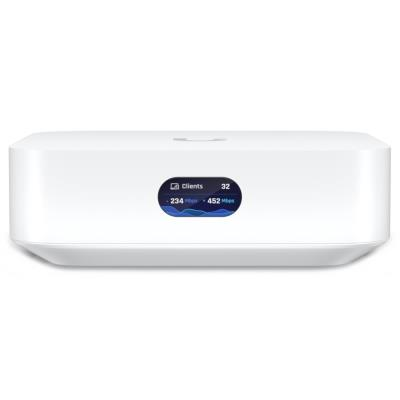

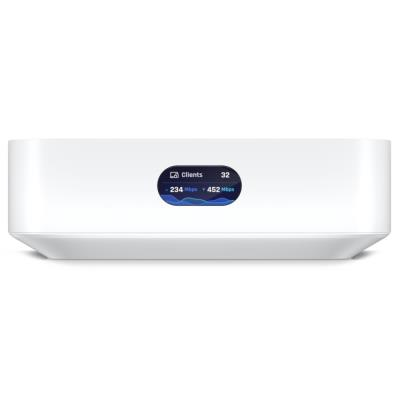

Display : | yes |
Network interfaces | |
Wi-Fi frequency : | 2400 MHz/5000 MHz |
Gigabit LAN : | yes |
LAN : | yes |
Max. output power (dBm) : | 25 |
Port Speed : | 1 Gb/s |
Standard Wi-Fi : | 802.11a/b/g/n/ac/ax |
Encryption : | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
Wi-Fi : | yes |
WEP security : | no |
WPA security : | yes |
WPA2 security : | yes |
WPA3 security : | yes |
Antenna | |
Antenna type : | internal |
Inputs and outputs | |
RJ-45 : | 2 |
RS-232 port : | no |
Card reader | |
MicroSD card support : | no |
Power supply | |
PoE support : | no |
Power consumption - typical (W) : | 10 |
Power type : | external power adapter |
Input Voltage (V) : | 5 (DC) |
Warranty | |
Warranty period EU (months) : | 26 |
Warranty period CRN (months) : | 26 |
Physical properties | |
Color : | white |
Weight (g) : | 302 |
Weight (kg) : | 0.302 |
Dimensions : | 98 × 98 × 30 mm |
Weight category : | Lightweight - up to 2 kg |
Additional equipment and features | |
Certification mark : | CE, FCC, IC |
