Ubiquiti Enterprise Access Hub

Add recension
28 378 CZK 23 453 CZK without VAT

In stock To send

Code: PRSUBT0017 PN: EAH-8 Warranty: 26 months
Výrobce: UBIQUITI
Ubiquiti UniFi Enterprise Access Hub UniFi Enterprise Access Hub is an intelligent enterprise-class controller with control over entry and exit at up to eight doors. The universal interface supports most electronic and... more
Count:
Add to Cart

Favorites
Compare
Print
Send to friend
Ubiquiti UniFi Enterprise Access Hub

UniFi Enterprise Access Hub is an intelligent enterprise-class controller with control over entry and exit at up to eight doors. The universal interface supports most electronic and magnetic locks and is compatible with 12V accessories (buttons, alarms, motion sensors, etc.).

  • Integration with UniFi Access
  • Eight RJ-45 PoE 802.3af ports for UniFi access readers
  • 8× relays for lock control (12V or Dry)
  • 4× AUX output relays for connecting external sirens and automatic door opening
  • 8+8 inputs for buttons, motion sensors, and door position sensors
  • 1× emergency input (connection to fire alarm system)
  • Remote management of UniFi Access devices through a single interface
  • Setting access policies, schedules, and permissions
  • Complete user management, role settings, NFC card assignment, statistics, logs, etc.
  • Supports backup power (PP45 input for lead-acid battery, 32–48 V DC; battery not included)

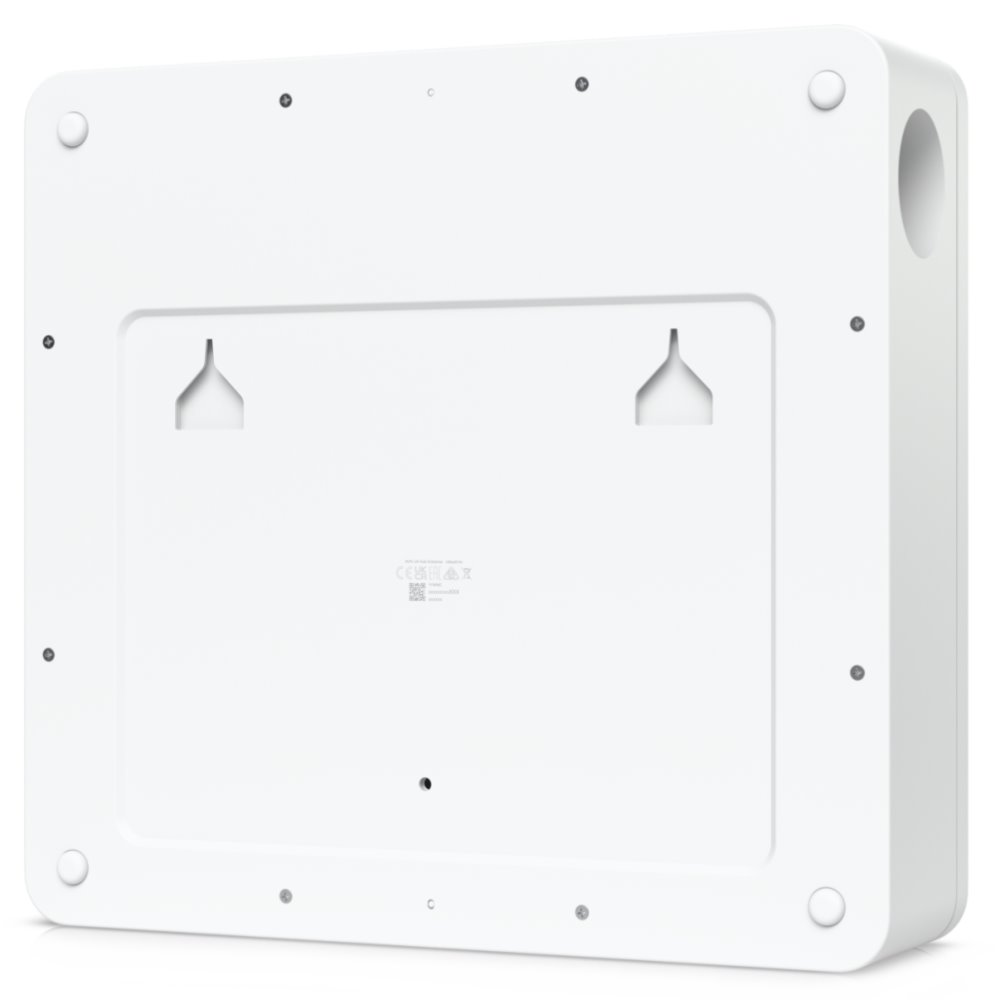

  • Steel casing with plastic cover and passage for optional lock
  • Wall mounting (bracket included)
  • Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 (Grade I)

BASE SPECIFICATIONS

Mounting: Wall-mounted
Interface: 10× GbE RJ-45 (8× PoE 802.3af), 16× digital input, 8× output relay, 4× power relay
Power: AC 100–240 V, or DC battery 32–48 V, max. power consumption 240 W
Weight: 9.1 kg
Dimensions: 379 × 355 × 105 mm

Note: To operate the UniFi Access system, a UniFi Dream Machine Pro, UniFi Dream Machine SE, UniFi Dream Router, UniFi Dream Wall, or Cloud Key Gen2 Plus device is required.

Manual (installation guide):
dl.ui.com/qig/eah-8/

PoE cabling requirements
Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2) for patch cords; 24 AWG (0.21 mm2) for horizontal or riser cable.

Recommend max. cable length 18 AWG
UACC-Cable-DoorLockRelay		 20 AWG 22 AWG 24 AWG
UA-Lock-Electric
(400mA)		 100 m
(328 ft)		 66 m
(217 ft)		 42 m
(138 ft)		 25 m
(82 ft)
UA-Lock-Magnetic-270kg
(500mA)		 46 m
(151 ft)		 30 m
(98 ft)		 20 m
(66 ft)		 12 m
(29 ft)
UA-Lock-Magnetic-540kg
(800mA)		 80 m
(262 ft)		 51 m
(167 ft)		 32 m
(105 ft)		 20 m
(66 ft)
Other locks
(1A)		 36 m
(118 ft)		 24 m
(79 ft)		 15 m
(49 ft)		 9 m
(30 ft)

Brand
Type specification :  Controller
Manufacturer :  UBIQUITI
Technical specification
Outdoor use :  no
Max. operating temperature (°C) :  40
Min. operating temperature (°C) :  0
Placement :  wall mount
Control
Communication interface :  LAN
Numeric keypad :  no
Autonomous :  no
Inputs and outputs
Interface :  LAN, relay
Power supply
Input voltage (V) :  32-48 (DC)
Input voltage (V) :  100-240 (AC)
PoE support :  yes
Power consumption - typical (W) :  240
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
Security
Smart Card Reader :  no
Fingerprint Reader :  no
Physical properties
Color :  white
Weight (g) :  9100
Dimensions :  379 × 355 × 105 mm
Additional equipment and features
Certification mark :  CE, FCC, IC
