Po objednání za 5 dnů

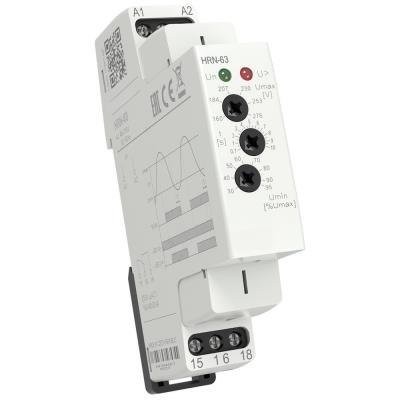

Hlídací relé HRN-63 slouží k hlídání úrovní napětí jednofázových obvodů v rozsahu AC 48–276 V. Hlídané napětí je pro přístroj zároveň i napětím napájecím. U relé je možno nastavit dvě nezávislé úrovně napětí. Při překročení Umax je aktivován výstup. Při podkročení Umin je výstup deaktivován. Tato kombinace zapojení výstupního relé je výhodná tam, kde se úplný výpadek napájecího (hlídaného) napětí považuje za chybový stav, stejně jako pokles napětí v rámci nastavené úrovně. Pro eliminaci krátkodobých špiček v síti slouží časová prodleva, kterou lze plynule nastavit v rozmezí 0–10 s. Uplatňuje se při přechodu ze stavu přepětí do stavu podpětí. Při návratu ze stavu podpětí do stavu přepětí se již prodleva neuplatňuje. Díky přepínacím výstupním kontaktům je možno dosáhnout dalších konfigurací a funkcí dle aktuálních požadavků nebo dané aplikace.
ZÁKLADNÍ SPECIFIKACE
Provedení: 1modul
Výstup: 1× přepínací kontakt, 16 A
Napájecí a hlídané napětí: AC 48–276 V
Životnost: 10 000 000 op. (mechanická), 60 000 op. (elektrická, AC1)
Stupeň krytí: IP40 (z čelního panelu), IP20 (svorky)
Upevnění: DIN lišta (EN 60715)
Standardy dle ČSN: EN 60255-1, EN 60255-26, EN 60255-27
Rozměry: 90 × 64 × 17,6 mm
Hmotnost: 62 g
Schéma zapojení:
Indikace LED:
Značka | |
Upřesnění typu : | Ostatní elektro |
Výrobce : | XTEND Solarmi |
Technické detaily | |
Provozní teplota max. (°C) : | 55 |
Provozní teplota min. (°C) : | -20 |
Vstupy a výstupy | |
Konektor : | svorkovnice |
Napájení | |
Frekvence napětí (Hz) : | 50-60 |
Vstupní napětí (V) : | 48 - 276 (AC) |
Záruka | |
Délka záruky (měsíce) : | 26 |
Délka záruky IČO (měsíce) : | 26 |
Fyzické vlastnosti | |
Hmotnost (kg) : | 0.062 |
Rozměry : | 90 × 64 × 17,6 mm |
Code: ELEGWL0201
Code: ELEGWL0201
Code: ELEGWL0013
