Unknown availability

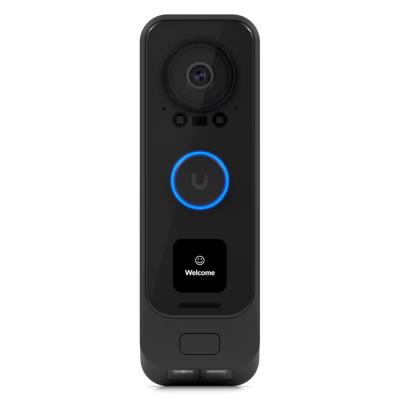

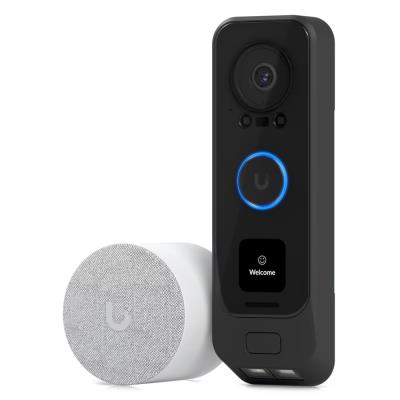

Premium Home Doorbell UniFi with integrated PoE and included PoE Chime for Plug-and-Play installation.
PoE Video Doorbell equipped with Primary 5 MP Camera and Secondary 8 MP Camera (e.g., for package viewing/detection). It also features a built-in programmable LCM display, LED light, and two-way audio communication.
The doorbell camera has a high-quality night vision sensor (approximately 6 m range) and video resolution of 1600 × 1200 (2 MP) HD at 30 fps. Additionally, the UniFi Protect G4 doorbell includes a motion detection sensor.
Managed through UniFi Protect App version 2.7.25 (web), 1.11.0 (Android/iOS), or their newer versions.
BASIC SPECIFICATIONS
UVC-G4 Doorbell Pro PoE
Display:
Image Sensor: 5.0 MP CMOS (2.0 MP video, 30 fps)
Image Sensor: 8.0 MP CMOS (2.0 MP video, 2 fps)
Maximum Video Resolution: 1600 × 1200 (4:3)
IR Illumination: yes (range of 6 m)
Field of View (Primary Camera): H: 138°, V: 114°, D: 155°
Field of View (Secondary Camera): H: 97.5°, V: 79.4°, D: 118.2°
Interfaces and Protocols:
Interface: GbE RJ-45 port
Video Compression: H.264
Memory Card Slot: none
Audio: yes, built-in microphone and speaker
Mechanical Properties and Environment:
Power: PoE (DC 37–57 V), power consumption up to 7 W
Operating Temperature: -30 to +40 °C
IP Rating: IPX4
Dimensions: 160.6 × 51.7 × 35.1 mm
Weight: 264 g (without bracket)

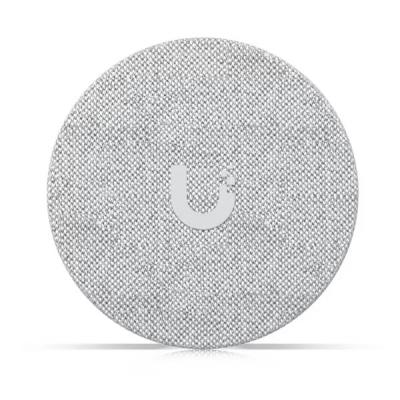

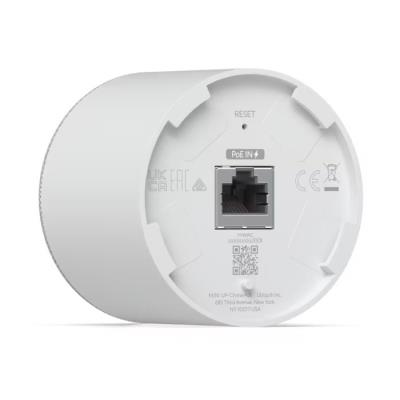

UP-Chime PoE
Functions: doorbell, speaker, buzzer
Interface: 10/100 MbE RJ-45 port
Power: PoE (DC 44–57 V), power consumption up to 3.5 W
Operating Temperature: 0 to +40 °C
Dimensions: 62 × 62 × 54 mm
Weight: 158 g
Manual (Installation Guide):
http://dl-origin.ubnt.com/qig/uvc-g4-doorbell-pro-poe-kit/#index
Brand | |
Type specification : | Camera |
Manufacturer : | UBIQUITI |
Technical specification | |
Outdoor use : | yes |
Max. operating temperature (°C) : | 40 |
Min. operating temperature (°C) : | -30 |
Placement : | wall mounting |
Memory card slot : | no |
Video codecs : | H.264 |
WDR : | no |
Videoanalytics : | AI event detections |
Processor | |
Processor : | ARM Cortex A53, Quad-Core |
Multimedia | |
Built-in microphone : | yes |
Camera | |
Motor zoom and autofocus : | no |
Lens : | fixed |
PTZ control : | no |
Camera illumination : | infra |
Output resolution (MPx) : | 2,0 |
Video resolution (px) : | 1600 × 1200 |
Communication | |
Wi-Fi : | no |
Network interfaces | |
Port Speed : | 1 Gb/s |
Inputs and outputs | |
Alarm in/out : | no |
Audio in/out : | ne |
Wireless connection : | no |
Wired connection : | yes |
RJ-45 : | 1 |
Power supply | |
PoE support : | yes |
Power consumption - typical (W) : | 7 |
Warranty | |
Warranty period EU (months) : | 26 |
Warranty period CRN (months) : | 26 |
Physical properties | |
Color : | black |
Weight (g) : | 264 |
Weight (kg) : | 0.264 |
Dimensions : | 160,6 × 51,7 × 35,1 mm |
