Ubiquiti UniFi Access G2 Starter Kit

Add recension
8 281 CZK 6 844 CZK without VAT

In stock To send

Code: PRSUBT0013 PN: UA-G2-SK Warranty: 26 months
Výrobce: UBIQUITI
Ubiquiti UniFi Access G2 Starter Kit Starter kit with everything you need for the UniFi Access G2 access control system. The set complies with CE, FCC, IC, UL 294 and CAN/ULC-60839-11-1 (Class 1) certifications. ... more
Count:
Add to Cart

Favorites
Compare
Print
Send to friend
Ubiquiti UniFi Access G2 Starter Kit

Starter kit with everything you need for the UniFi Access G2 access control system. The set complies with CE, FCC, IC, UL 294 and CAN/ULC-60839-11-1 (Class 1) certifications.

  • Integration with the UniFi Access system
  • Remote management of Access devices through a single intuitive interface
  • Configuring access policies, schedules, permissions, etc.
  • Complete user management, role settings, assignment of NFC cards and identification chips, statistics, audit logs, etc.

Contents of the starter kit:
1× UniFi Access Hub Door (splitter/controller)
1× Ubiquiti UniFi Access Reader G2 (access reader)
10× Ubiquiti UniFi Access Card (identification/access card)

Optional accessories:
Pocket Keyfob (UA-Pocket) - identification chip & keychain
Access Lock Magnetic (UA-Lock-Magnetic-270kg) - magnetic lock
Access Rescue KeySwitch (UA-Rescue) - emergency/rescue switch

BASIC SPECIFICATIONS

UniFi Access Hub Door
Mounting: DIN
Network Interface: 5× GbE RJ-45
Power: PoE++ 802.3bt, max. power consumption 50 W (30 W without PoE)
Weight: 363 g
Dimensions: 174.9 × 126 × 32.9 mm

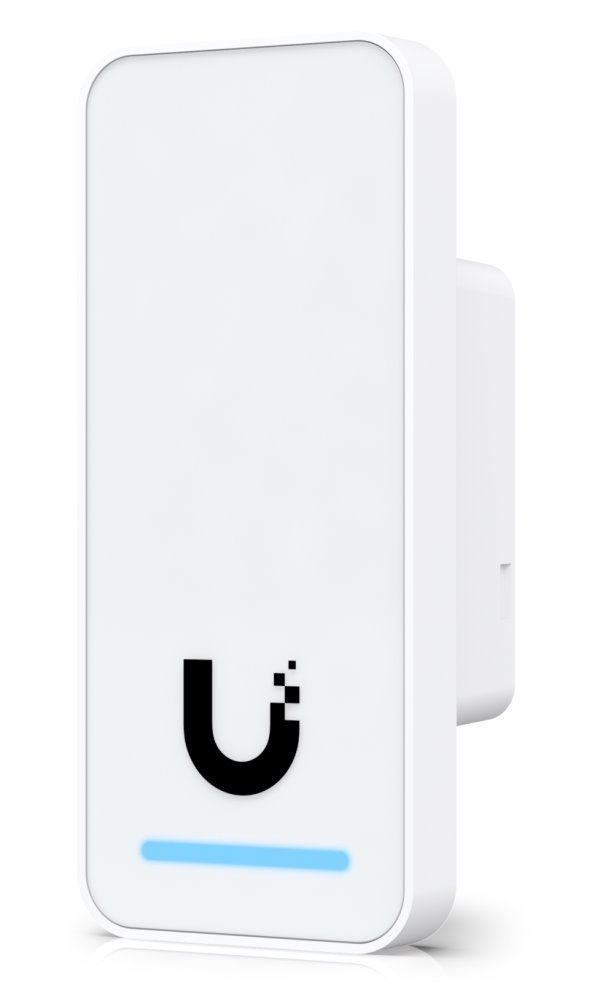

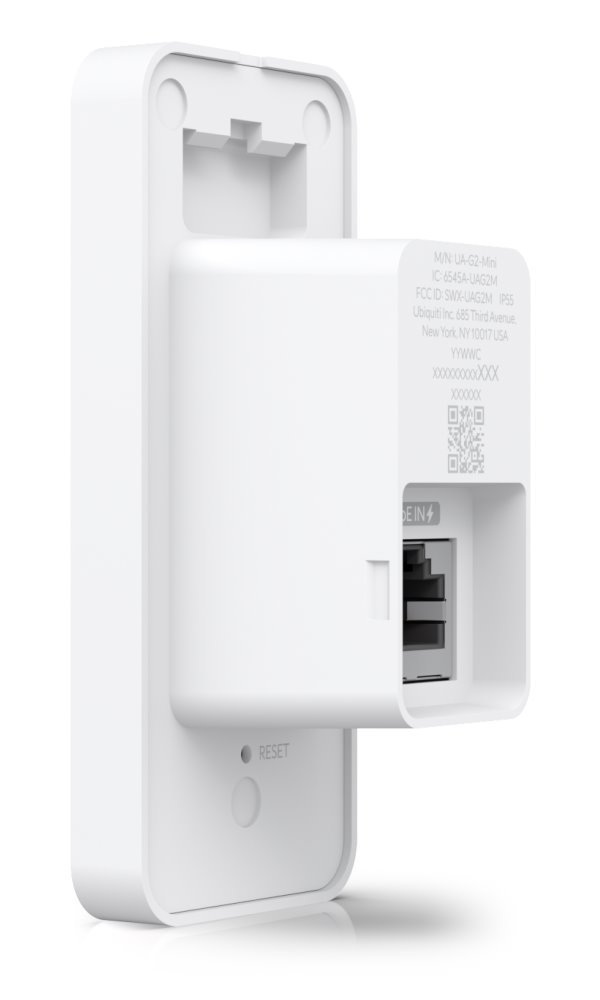

Ubiquiti UniFi Access Reader G2
Mounting: directly on the wall
Interfaces: 1× 10/100 Mbps RJ-45, Bluetooth 4.1, NFC (13.56 MHz, Mifare)
Standards: ISO 14443A, 14443B, 15693
Technologies:
  • NFC Tag 1, 2, 3, 4, 5
  • MIFARE Classic
  • MIFARE Plus
  • MIFARE Ultralight
  • MIFARE DESFire
    • Power: PoE 802.3af, max. power consumption 5 W
    Protection: IP55
    Weight: 82 g
    Dimensions: 93 × 40 × 36.5 mm

    Ubiquiti UniFi Access Card
    Card Type: NFC (13.56 MHz, Mifare)
    Format: ISO 7810 ID-1
    Technologies:
  • ISO/IEC 14443 Type A
  • MIFARE DESFire EV2
  • UniFi Access Proprietary Security Protocol
    • Weight: 5 g
    Dimensions: 85.6 × 53.98 × 0.84 mm

    Manual [EN]
    https://dl.ui.com/qig/ua-g2-sk

    Wiring Information
    Wiring gauge requirements (AWG) Output load current at 12V DC
    Total length to device 100mA 250mA 500mA 1A
    6.1 m (20 ft)22222218
    15.2 m (50 ft)22222218
    30.5 m (100 ft)22221818
    UACC-Cable-DoorLockRelay (18 AWG) is recommended.



    PoE cabling requirements
    The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 24 AWG (0.21 mm2) for horizontal or riser cable.

    Brand
    Type specification :  Access system
    Manufacturer :  UBIQUITI
    Technical specification
    Outdoor use :  yes
    Placement :  na zeď
    Control
    Communication interface :  LAN
    Numeric keypad :  no
    Autonomous :  no
    Inputs and outputs
    Interface :  LAN, Bluetooth, NFC, relay
    Power supply
    Input voltage (V) :  50 (PoE)
    Input voltage (V) :  48 (PoE)
    PoE support :  yes
    Warranty
    Warranty period EU (months) :  26
    Warranty period CRN (months) :  26
    Security
    Smart Card Reader :  yes
    RFID standard :  13,56 MHz
    Fingerprint Reader :  no
    Physical properties
    Color :  white - black
    Additional equipment and features
    Certification mark :  CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
