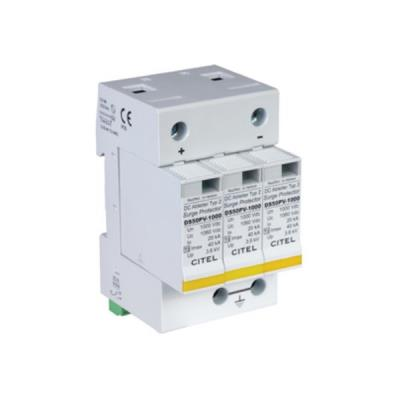

Surge protector DS50PVS-1000DE, 1000Vdc, CE

1 962 CZK 1 621 CZK without VAT
Common price: 1 970 CZK

After order for 5 days

Code: ELEGWL0200 PN: DS50PVS-1000DE Warranty: 26 months
Výrobce: XTEND Solarmi
Xtend Solarmi DS50PVS-1000DE Surge arrester/protector specially designed for the protection of photovoltaic equipment against overvoltage. The DS 50PVS surge arresters are two-part type 2 arresters (with modular structure)... more
Xtend Solarmi DS50PVS-1000DE

Surge arrester/protector specially designed for the protection of photovoltaic equipment against overvoltage. The DS 50PVS surge arresters are two-part type 2 arresters (with modular structure) and are DIN rail mounted. The replaceable module allows easy replacement of the damaged part without the need to dismantle the connected conductors. These arresters contain a high-performance varistor with thermal fuse and in the event of a fault, the thermal disconnection device disconnects the arrester current circuit, which is indicated by an optical indication of the arrester status.

  • Type 2 surge protector for PV
  • In : 15kA / Imax : 40kA
  • Pluggable
  • Remote signaling
  • UL1149 ed.5 certified
  • EN 61643-31, NF EN 50539-11 compliant

SPECIFICATIONS

Rated voltage (Un): 1000 V
Max. permissible operating voltage (Uc): 1300 V
Leakage current limit Imax (8/20 µs): 40 kA
Rated leakage current ln (8/20 µs): 20 kA
Protection class: IP20
Operating temperature: -40 to +85 °C

Brand
Type specification :  Other
Manufacturer :  XTEND Solarmi
Technical specification
Max. operating temperature (°C) :  85
Min. operating temperature (°C) :  -40
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
Physical properties
Weight (kg) :  0.272
Dimensions :  99 × 67 × 54 mm
