Po objednání za 5 dnů

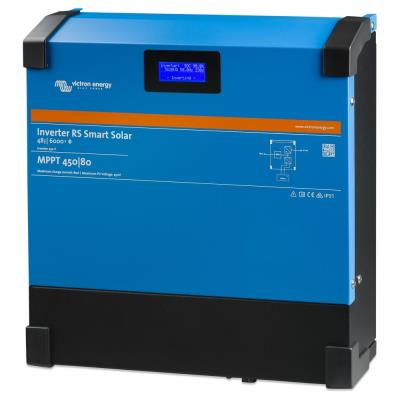

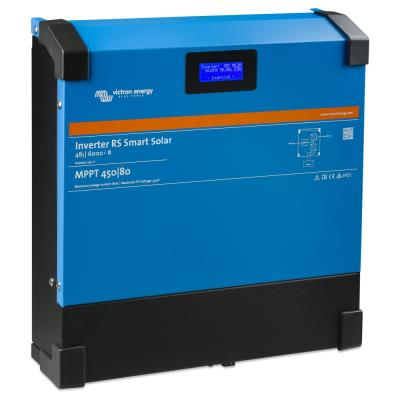

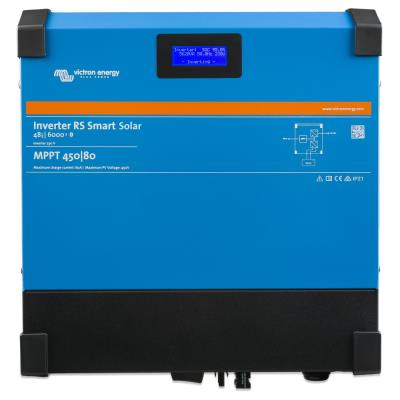

RS Smart Solar je kombinací výkonného měniče napětí (48 VDC, 6 kVA, 230 VAC) a vysokonapěťového solárního regulátoru MPPT 450 V (80 A) vhodný pro ostrovní systémy (bez AC vstupu pro distribuční síť nebo generátor).
Široký rozsah napětí MPPT
DC 80 až 450 V - Spouštěcí napětí fotovoltaiky je DC 120 V.
Nízká hmotnost, efektivní a tichý
Díky svému modernímu designu a vysokofrekvenční technologii střídač váží pouze 11 kg a má vynikající účinnost, nízkou vlastní spotřebu a velmi tichý provoz.
Displej a Bluetooth Smart
Střídač je vybaven displejem pro vizualizaci údajů o baterii, měniči a solárním regulátoru. Tyto parametry lze také načíst přes Bluetooth pomocí aplikace Victron Connect. Kromě toho lze měnič pomocí VE.Direct a VE.Can portu připojit k zařízení GX pro monitorování systému.
Vestavěný FV izolátor

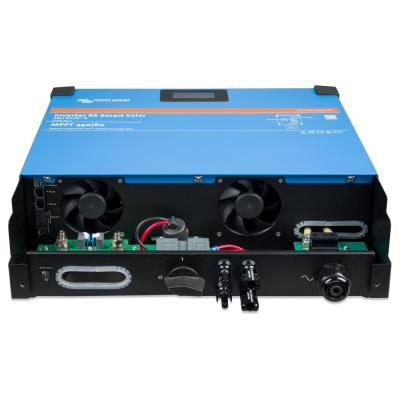

Oba paralelní FV řetězce připojené ke konektorům MC4 lze bezpečně izolovat velkým vestavěným spínačem na spodní straně jednotky.
ZÁKLADNÍ SPECIFIKACE
Rozsah vstupního DC napětí: 38-64 V
Výstupní napětí měniče: 230 V (50 Hz, lze nastavit na 60 Hz)
Výkon (při 25 °C): lineárně se zvyšuje od 4800 W při 46 VDC na 5300 W při 52 VDC
Výkon (při 40 °C): 4500 W
Výkon (při 65 °C): 3000 W
Maximální příkon fotovoltaiky: 4000 W
Rozsah provozního napětí MPPT: 80-450 V
Nabíjecí napětí (absorpční): 57,6 V
Nabíjecí napětí (udržovací): 55,2 V
Účinnost (max.): 96,5 %
Krytí: IP21
Hmotnost: 11 kg
Rozměry: 440 x 425 x 125 mm
Aplikace VictronConnect:
Aplikace VictronConnect pro mobilní zařízení s Androidem
Aplikace VictronConnect pro mobilní zařízení s iOS
Aplikace VictronConnect pro Mac zařízení
Aplikace je také ke stažení na stránce výrobce Victron Energy (Mac/Windows/Linux/iOS/Android):
https://www.victronenergy.com/support-and-downloads/software#victronconnect-app
Značka | |
Upřesnění typu : | Měnič napětí C |
Výrobce : | VICTRON |
Napájení | |
Frekvence napětí (Hz) : | 50/60 |
Počet fází : | jednofázový |
Vstupní napětí (V) : | 38 - 64 (DC) |
Vstupní napětí (V) : | 80 - 450 (DC) |
Výstupní napětí (V) : | 230 (AC) |
Výstupní napětí (V) : | 55,2 / 57,6 (DC) |
Výstupní výkon (W) : | 5300 |
Záruka | |
Délka záruky (měsíce) : | 60 |
Délka záruky IČO (měsíce) : | 60 |
Fyzické vlastnosti | |
Rozměry : | 440 × 425 × 125 mm |
Code: SOPGWL0508
