TP-Link TL-FC311B-20

Gigabit WDM Media Converter

Gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

TL-FC311B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311B-20 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311B-20 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC311A-20 is one of the products that can cooperate with TL-FC311B-20.

Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

  • 1x 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 20 km

Wave Length:
TL-FC311A-20: 1550 nm TX, 1310 nm RX
TL-FC311B-20: 1310 nm TX, 1550 nm RX

Scenario 1: Connect Devices without Optical Interfaces:

Scenario 2: Connect Devices with and without Optical Interfaces:

SPECIFICATIONS

Ports: 1x 10/100/1000 Mbps RJ-45, 1x 1000 Mbps SC (fiber optic)

Fiber: 9/125 µm single-mode (≤ 20 km)

Twisted-Pair: UTP/STP Cat5 or above (≤ 100 m)

Transmission distance: ≤ 20 km

Standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z

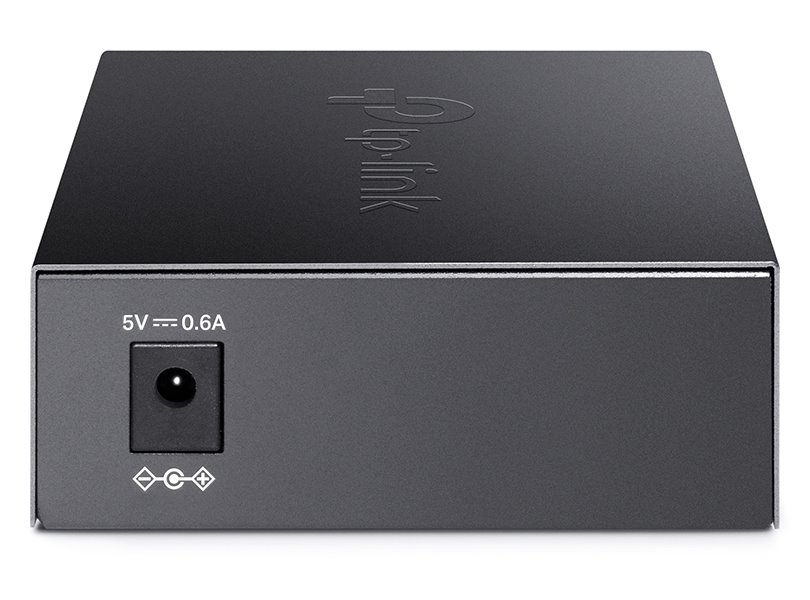

Power: External Power Adapter: 5 V / 0.6 A

Dimensions: 94,5 x 73 x 27 mm

Brand
Type specification :  Converter
Manufacturer :  TP-LINK
Technical specification
Max. link length (km) :  20
Transmitted signals :  TxD and RxD
Max. operating temperature (°C) :  50
Data Rate (Mbps) :  10/100/1000
Min. operating temperature (°C) :  0
Wavelength (nm) :  1310,1550
Network interfaces
Standards :  IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
Inputs and outputs
Connector :  SC, RJ45
RJ-45 :  1
Power supply
Input voltage (V) :  5
Warranty
Warranty period EU (months) :  60
Warranty period CRN (months) :  60
Physical properties
Color :  grey
Dimensions :  94,5 × 73 × 27 mm
Fiber specification :  9/125um
Additional equipment and features
LED indication :  yes
