Connect cable 1m SMA male - SMA male

173 CZK 143 CZK without VAT

In stock To send

Code: KABWAC0019 PN: 08-SM-SM-01 Warranty: 26 months
Výrobce: WAVERF
WaveRF connecting cable SMA-SMA 1 m Professional high-frequency pigtail designed for the frequency range 0 to 6 GHz . This is a 1.0 m long RF240 cable. The termination of the crimped connectors are SMA male - SMA male. ... more

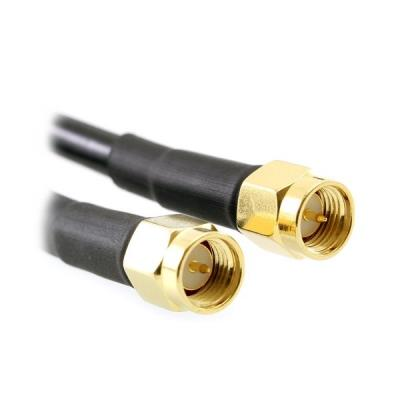

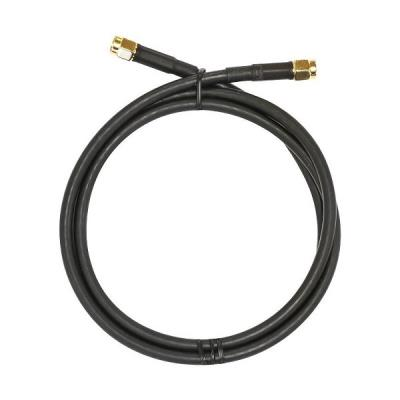

WaveRF connecting cable SMA-SMA 1 m

Professional high-frequency pigtail designed for the frequency range 0 to 6 GHz . This is a 1.0 m long RF240 cable. The termination of the crimped connectors are SMA male - SMA male.

  • Maximum attenuation for 2.4 GHz: 1,1 dB
  • Maximum attenuation for 5 GHz: 1,7 dB

SPECIFICATIONS

Connectors: SMA (M) - SMA (M)
Cable Type: RF240
Frequency range: 0-6 GHz
Length: 1 m

Brand
Type specification :  Coaxial cable
Manufacturer :  WAVERF
Inputs and outputs
Connector 1 :  SMA
Connector 2 :  SMA
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
Physical properties
Color :  black
Cable length (m) :  1
