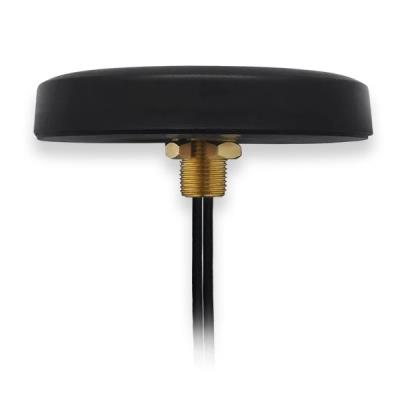

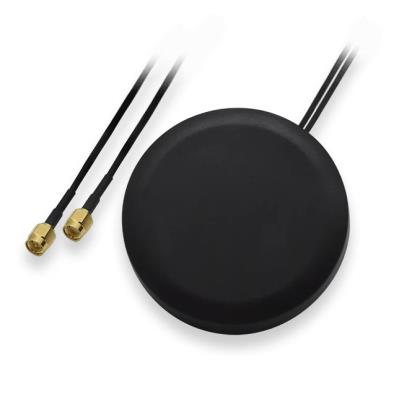

Combo LTE Mobile Roof SMA Antenna 2.5dBi

403 CZK 333 CZK without VAT
Common price: 409 CZK

Unknown availability

Code: NETTEL001 PN: PR1KCL25 Warranty: 26 months
Výrobce: TELTONIKA
Specification: Frequency Range:: 698-960/1710-2690 MHz Polarization Linear Main antenna gain 2.5 dBi Aux antenna gain 2.0 dBi V.S.W.R
Specification:
  • Frequency Range:: 698-960/1710-2690 MHz
  • Polarization Linear
  • Main antenna gain 2.5 dBi
  • Aux antenna gain 2.0 dBi
  • V.S.W.R <3.0
  • Impedance 50 Ohm
  • Connector SMA Male

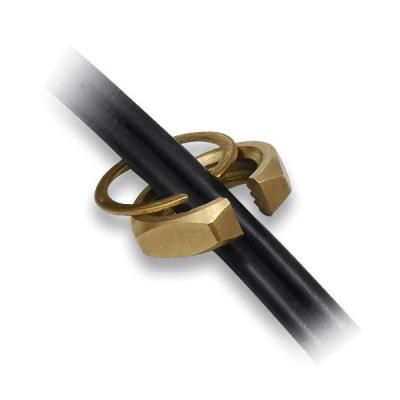

  • Mounting Method: Screw
  • Radome Ingress Protection rating: IP67
  • Radome Material: ABS
  • Weight: <250g
  • Housing Dimensions: O 80x15 mm
  • Cable: 3x RG174, 3000 mm
  • RoHS Compliant Yes
Brand
Type specification :  Wi-Fi antenna
Manufacturer :  TELTONIKA
Technical specification
IPv6 support :  no
Ingress protection :  IP67
Gain (dBi) :  2,5
Inputs and outputs
Output to Ext. antenna :  no
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
Physical properties
Depth (mm) :  15
Weight (kg) :  0.25
Width (mm) :  80
Height (mm) :  80
