Relay board for LAN Controller - 4 relays 10A for LK3 and LK4

612 CZK 506 CZK without VAT

In stock To send

Code: NJSGWL0021 PN: LANKON-094 Warranty: 26 months
Výrobce: TINYCONTROL
 (TINYCONTROL MARCIN NOSEK)
ul.Mazowieckiego 7G, RADOM 26-600, Polsko
sklep@tinycontrol.pl
www.sklep.tinycontrol.pl
Tinycontrol LANKON-094 (4-channel relay module) Universal relay module for remote control of up to four electrical devices via LAN controllers. This... more

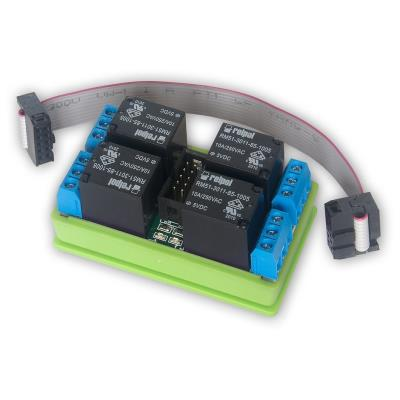

Tinycontrol LANKON-094 (4-channel relay module)

Universal relay module for remote control of up to four electrical devices via LAN controllers.

This professional relay module contains 4 independent relays with changeover contacts that allow turning on, turning off, and resetting connected devices. The module is designed for compatibility with LAN controllers of the LK4, LK3.5+ (including LK3.9), LK3.0, and LK2.5 series via a standard IDC10 connector.

The device uses high-quality relays from the Polish company Relpol, which are characterized by increased resistance to surges. The special design of the contacts with automatic removal of metal oxides during each switching ensures long-term trouble-free operation even in demanding applications.

  • Contains 4 independent relays with changeover contacts (SPDT)
  • Compatible with LK4, LK3.5+, LK3.0, and LK2.5 series LAN controllers
  • Contacts made of AgSnO2 alloy for reliable switching
  • Low contact resistance less than 100 mΩ
  • LED indication of individual relay status

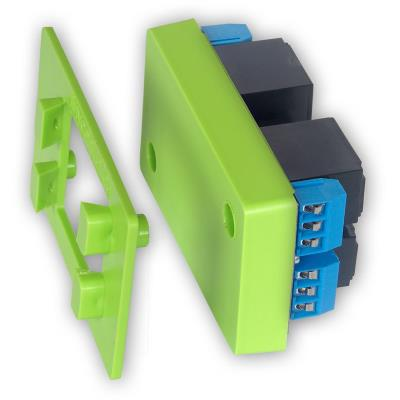

  • DIN rail mounting option using the included holder
  • Connection wire cross-section 1.5 mm2

High reliability and durability
The module uses quality relays with contacts made of AgSnO2 alloy, which is ideal for switching loads of various types. The special contact design ensures a self-cleaning effect with each switching, significantly extending the lifetime of the entire device.

Wide application possibilities
The relay module is suitable for controlling various types of electrical devices such as lighting, heating systems, fans, pumps, or motor drives. Thanks to the changeover contacts (C, NO, NC), it offers flexibility in implementing various switching scenarios.

Complete package

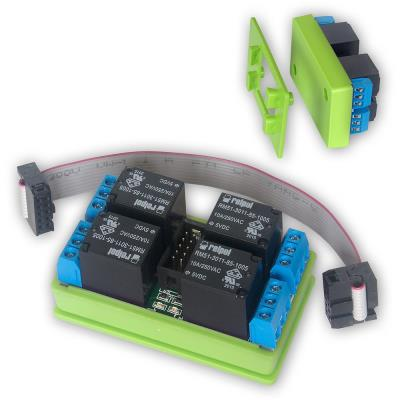

The delivery includes a 30 cm connection cable with 2× IDC10 connectors and a case with a holder for mounting on a standard DIN rail, which facilitates installation in switchboards and technical rooms.

BASIC SPECIFICATIONS

Number of relays: 4
Compatibility: LK4, LK3.5+ (including LK3.9), LK3.0, LK2.5
Input: IDC10 connector (tape) for connecting LK4
Relay outputs: C, NO and NC
Contact configuration: SPDT (changeover)
Contact material: AgSnO2
Rated load current: 10A/250V (AC-1), 20A/125V (AC-1), 10A/30V (DC-1)
Load types: AC-1/DC-1: non-inductive or low inductive loads, resistance furnaces
Contact resistance: < 100 mΩ
Connector wire cross-section: 1.5 mm2
DIN rail mounting: yes

Brand
Type specification :  Network specialties
Manufacturer :  TINYCONTROL
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
Usage and purpose
Type of accessories :  expansion module
Physical properties
Color :  green - black
Weight (g) :  66
Dimensions :  71 × 41,5 × 32 mm
