Ubiquiti FiberPoE Gen2 - Optical Data Transport for Outdoor PoE Devices

804 CZK 664 CZK without VAT
Common price: 823 CZK

In stock To send

Code: NACUBT0002 PN: F-POE-G2 Warranty: 26 months
Výrobce: UBIQUITI

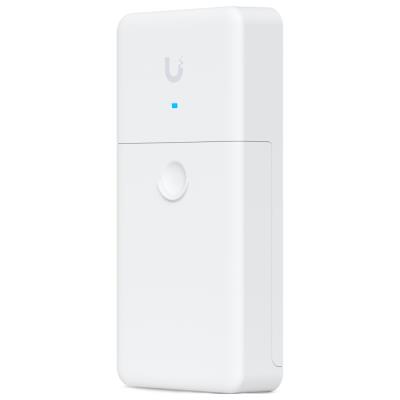

Ubiquiti FiberPoE Gen2 A Gigabit optical-metallic converter that supports not only data conversion from optical fiber to metallic cable but also PoE power. It features two RJ-45 ports, one SFP slot, and a DC terminal block.... more
Ubiquiti FiberPoE Gen2

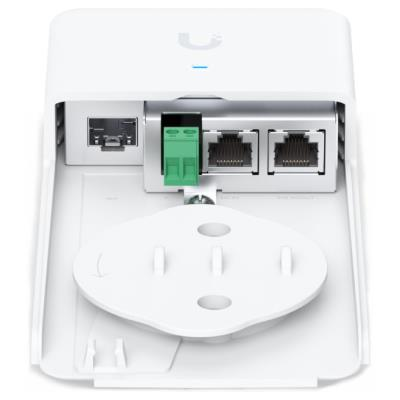

A Gigabit optical-metallic converter that supports not only data conversion from optical fiber to metallic cable but also PoE power. It features two RJ-45 ports, one SFP slot, and a DC terminal block. The converter offers 3 power options: through the DC terminal block or via the RJ-45 ports. It can be powered from both Ethernet ports; however, data is transmitted only through the port labeled as PoE. All power options operate within a range of 16 to 57 V DC. The device includes LED indicators and is resistant to extreme temperatures (-40 to +60 °C).

BASIC SPECIFICATIONS

Interface: 1× GbE SFP, 1× GbE RJ-45, 1× RJ-45 port (power only)
PoE Support: Yes
Power Supply:
Terminal Block: 2-wire, DC 24/50 V
DC RJ-45: 2 pairs (4, 5+; 7, 8-), DC 24 V or 4 pairs, DC 24/50 V
PoE RJ-45: 2 pairs (4, 5+; 7, 8-), DC 24 V or 4 pairs, DC 24/50 V
PoE Output: Yes, RJ-45, 2 pairs (4, 5+; 7, 8-), DC 24 V or 4 pairs, DC 24/50 V
DC Output: Yes, 2-pin terminal block, DC 24/50 V
Dimensions: 196.4 × 93.5 × 32.4 mm
Weight: 288 g

Brand
Type specification :  Converter
Manufacturer :  UBIQUITI
Technical specification
Management :  no
Konverze :  lan/optical
PoE-out :  pasivní
Max. operating temperature (°C) :  60
Min. operating temperature (°C) :  -40

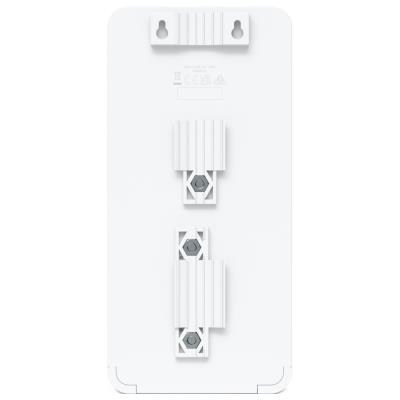

Placement :  pole mounting
Placement :  wall mounting
Rychlost portů – metalická :  1 Gb/s
Rychlost portů – optická :  1 Gb/s
Network interfaces
Port Speed :  1 Gb/s
Inputs and outputs
RJ-45 :  2
Power supply
Max. Voltage (jack) (V) :  57 (connectors)
Max. Voltage (PoE) (V) :  50
Min. Voltage (jack) (V) :  16 (connectors)
Min. Voltage (PoE) (V) :  24
Power consumption - typical (W) :  1.5
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
Physical properties
Color :  bílá
Weight (g) :  288
Weight (kg) :  0.288
Dimensions :  196,4 × 93,5 × 32,4 mm
Additional equipment and features
Certification mark :  CE, FCC, IC
