MikroTik Cloud Router Switch CRS305, 4x SFP+, 1x GbE, Dual PSU, Dual boot, L5

3 579 CZK 2 958 CZK without VAT

In stock To send

Code: NAPMKR1016 PN: CRS305-1G-4S+IN Warranty: 26 months
Výrobce: MIKROTIK
MikroTik CRS305-1G-4S+IN The CRS305 is a compact yet very powerful switch, featuring four SFP+ ports, for up to 10 Gbit per port. The device has a 1 Gbit copper ethernet port for management access and two DC jacks for power... more
MikroTik CRS305-1G-4S+IN

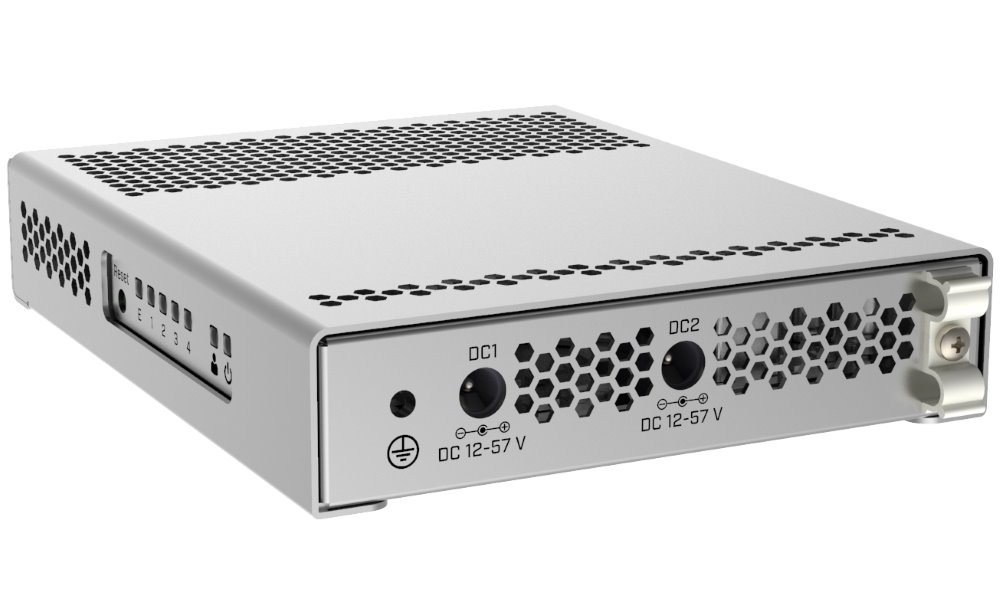

The CRS305 is a compact yet very powerful switch, featuring four SFP+ ports, for up to 10 Gbit per port. The device has a 1 Gbit copper ethernet port for management access and two DC jacks for power redundancy. The device is a very sleek and compact metallic case without any fans, for silent operation.

The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.

SPECIFICATIONS

Ports: 4 x SFP+, 1 x RJ-45 10/100/1000

Switching capacity: 82 Gbps

Forwarding rate: 61 Mpps

PoE Support: ano, 802.3af/at (max. 12 W)

Dimensions: 141 x 115 x 28 mm

Weight: 0,8 kg


Useful links and videos:

Declaration of Conformity + User Manual

Device Setup via Quick Set Guide

Mobile App for Device Control

Resetting Device, Reset Button Functions

RouterOS Recovery using Netinstall Utility

NAT Configuration

Load Balancing Configuration (Traffic Splitting Between Multiple Internet Connections)

Failover Setup (Switching to Backup Link in Case of Failure)


Multiple uplinks using PCC & Load balancing

Static NAT & RouterOS

MikroTips: Netinstall

Brand
Type specification :  Switch
Manufacturer :  MIKROTIK
Technical specification
Management :  yes
OSI layer :  L3 dynamic
Fanless :  yes
DHCP :  yes
IGMP :  no
Switching capacity (Gbps) :  82
IPv6 support :  yes, full
Homologation EN50155 :  no
PoE-in :  802.3af/at
PoE-out :  ne
Outdoor use :  no
Max. operating temperature (°C) :  70
Min. operating temperature (°C) :  -40
Placement :  desktop
Switch throughput (Mpps) :  61
NAND (MB) :  16
Stackable :  no
Processor
Number of Cores :  1
Processor :  Marvell 98DX3236A1, 800 MHz
Memory
Memory size (MB) :  512
Display
Display :  no
Network interfaces
Gigabit LAN :  yes
Standards :  IEEE802.3af/at
Port Speed :  1 Gb/s
Inputs and outputs
RJ-45 :  1
RS-232 port :  no
SFP+ :  4
Card reader
MicroSD card support :  no
Power supply
Input voltage (V) :  12 - 57
Max. Voltage (jack) (V) :  57
Min. Voltage (jack) (V) :  12
PoE support :  yes
Power consumption - typical (W) :  12
Power type :  external power supply
Power type :  PoE passive
Input Voltage (V) :  12 - 57 (DC)
Operating system
License :  L5
Operating system :  MikroTik RouterOS/SwOS
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
Security
Default IP :  192.168.88.1
Default username :  admin
Physical properties
Color :  silver
Weight (kg) :  0.8
Dimensions :  141 × 115 × 28 mm
Additional equipment and features
LED indication :  yes
Certification mark :  CE
