In stock To send
Spolehlivá přepěťová ochrana pro venkovní Ethernet instalace s podporou PoE.

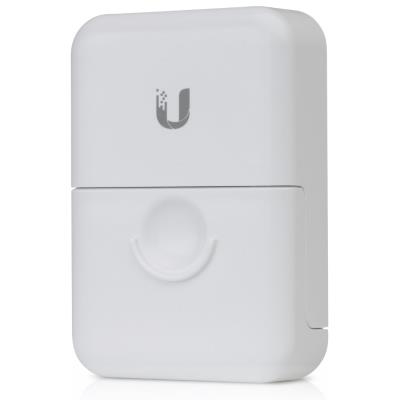

Přepěťová ochrana ETH-SP-G2 je navržena speciálně pro ochranu venkovních zařízení Ubiquiti před poškozením způsobeným elektrostatickými výboji nebo přepětím. Díky odolné konstrukci s krytím IPX5 a schopnosti absorbovat přechodové proudy při přepětí od 100 V/s do 1 kV/µs efektivně chrání vaše síťové vybavení před nepříznivými atmosférickými jevy.
Zařízení podporuje jak pasivní PoE 24/48 V, tak aktivní PoE napájení (802.3af) a přenos dat až 2,5 Gbps. Při správné instalaci a uzemnění dokáže ochránit připojená zařízení i při přepětí 100 V po dobu 1 sekundy nebo při výboji 1 kV/µs.
Ochrana investic
Instalace ETH-SP-G2 do vaší sítě výrazně snižuje riziko poškození drahých síťových zařízení způsobených přepětím nebo elektrostatickými výboji. Tato prevence šetří náklady na pořízení nových zařízení i čas potřebný pro jejich instalaci.
Snadná instalace

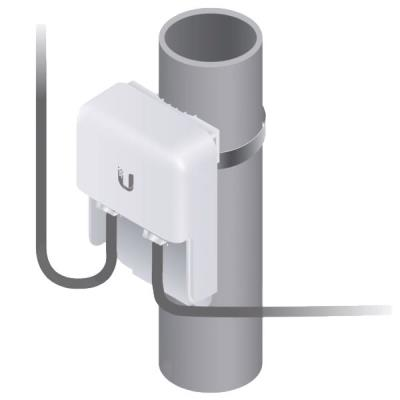

Zařízení je vybaveno dvěma standardními porty RJ-45, které umožňují jednoduché zapojení do existující sítě. Pro maximální účinnost ochrany je nutné zajistit správné uzemnění pomocí uzemňovacího bodu na zařízení.
Odolná konstrukce
Kryt z polykarbonátu s odolností IPX5 zajišťuje spolehlivou ochranu vnitřních komponent před povětrnostními vlivy. Zařízení je certifikováno podle standardu ETSI300-019-1.4 pro odolnost proti otřesům a vibracím.
ZÁKLADNÍ SPECIFIKACE
Konektory: 2× RJ-45 (female)
ESD/EMP ochrana: od 100 V/s do 1 kV/µs
DC přetížení: 90 V při 100 V/s
Maximální impulsní přetížení: 700 V při 1 kV/µs
Vybíjecí proud: 10 kA+
Izolační odpor: max. 1 GΩ při 50 V
Maximální kapacitance: 1,0 pF při 1 MHz
Podpora PoE: ano (pasivní 24/48 V i aktivní 802.3af)
Přenosová rychlost: až 2,5 Gbps
Stupeň krytí: IPX5
Provozní teplota: -30 až +65 °C
Provozní vlhkost: 10 až 90 % nekondenzující
Materiál krytu: polykarbonát
Rozměry: 91 × 61 × 32,5 mm
Hmotnost: 80 g
Barva: bílá
Značka | |
Upřesnění typu : | Přepěťová ochrana |
Výrobce : | UBIQUITI |
Technické detaily | |
Použití v exteriéru : | ano |
Provozní teplota max. (°C) : | 65 |
Provozní teplota min. (°C) : | -30 |
Provedení : | na sloup |
Provedení : | na zeď |
Síťová rozhraní | |
Gigabit LAN : | ano |
LAN : | ano |
Rychlost portů : | 2,5 Gb/s |
Vstupy a výstupy | |
RJ-45 (počet) : | 2 |
Napájení | |
Napájení max. (PoE) (V) : | 50 |
Záruka | |
Délka záruky (měsíce) : | 26 |
Délka záruky IČO (měsíce) : | 26 |
Fyzické vlastnosti | |
Barva : | bílá |
Hmotnost (g) : | 80 |
Rozměry : | 91 × 61 × 32,5 mm |
Výška (mm) : | 91 |
Šířka (mm) : | 61 |
Hloubka (mm) : | 32.5 |
