High-Gain, Directional, 2x2 MIMO Antenna

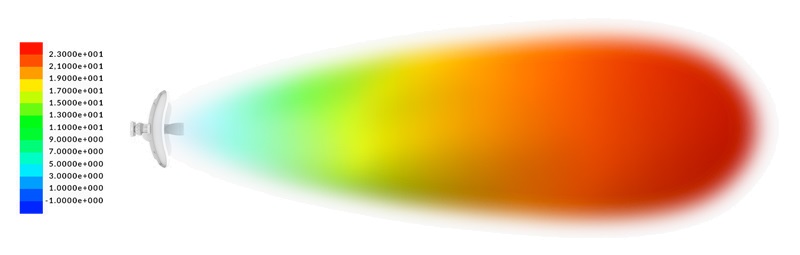

The LiteBeam AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.Management Wi-Fi Radio
The LiteBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device Android, iOS.Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.Improved Surge Protection
The LiteBeam AC features enhanced protection against ESD events.Now with airOS8 and airView

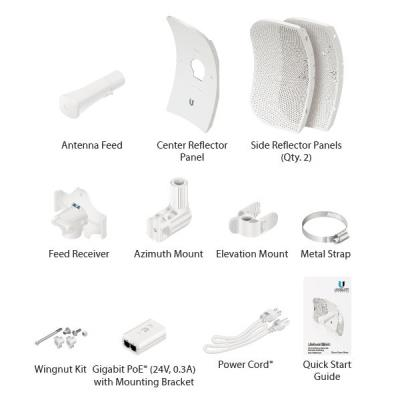

airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.Package includes 24V PoE injector.
Note:
AirOS system is constantly being improved. Therefore is highly recommended to use the current version of firmware which is available at Ubiquiti Downloads.
Brand | |
Type specification : | Access point |
Manufacturer : | UBIQUITI |
Technical specification | |
Sensitivity (dBm) : | -96 |
Modulation : | OFDM, QAM |
IPv6 support : | yes, transparent (Bridge Mode) |

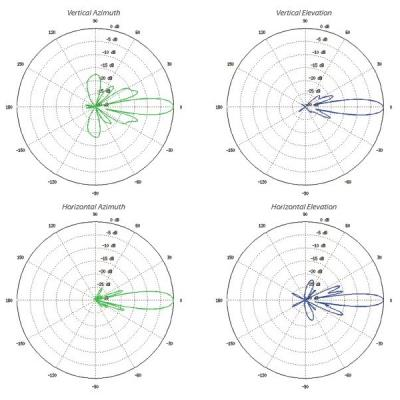

Polarization : | horizontal and vertical |
Outdoor use : | yes |
Indoor use : | no |
Max. operating temperature (°C) : | 70 |
Data Rate (Mbps) : | 450 |
Min. operating temperature (°C) : | -40 |
Placement : | Pole |
Gain (dBi) : | 23 |
Processor | |
Processor : | Atheros MIPS 74Kc |
Memory | |
Memory size (MB) : | 64 |
Chipset | |
Chipset : | Atheros |
Network interfaces | |
Wi-Fi frequency : | 5150 - 5875 MHz |
Gigabit LAN : | yes |
LAN : | yes |
Max. output power (dBm) : | 25 |
Operation mode : | AP, Client |
AP mode : | yes |
Bridge mode : | yes |
Client mode : | yes |
Repeater mode : | no |
Router mode : | yes |
Port Speed : | 1 Gb/s |
Standard Wi-Fi : | airMAX AC |
Encryption : | WPA-AES, WPA2-AES |
Wi-Fi : | yes |
WEP security : | no |
WPA security : | no |
WPA2 security : | yes |
Inputs and outputs | |
RJ-45 : | 1 |
Interface : | LAN, Wi-Fi |
Power supply | |
Input voltage (V) : | 24 |
Max. Voltage (PoE) (V) : | 24 |
PoE support : | yes |
Power consumption - typical (W) : | 7 |
Operating system | |
Operating system : | AirOS VIII |
Warranty | |
Warranty period EU (months) : | 26 |
Warranty period CRN (months) : | 26 |
Security | |
Default password : | ubnt |
Default IP : | 192.168.1.20 |
Default username : | ubnt |
Physical properties | |
Color : | white |
Depth (mm) : | 272 |
Weight (g) : | 980 |
Weight (kg) : | 0.98 |
Dimensions : | 358 × 271,95 × 272,5 mm |
Width (mm) : | 358 |
Weight category : | Lightweight - up to 2 kg |
Height (mm) : | 272 |
Additional equipment and features | |
Certification mark : | CE, FCC, IC |
