CAT5E UTP PE outdoor - 1pc = 1m (SXKD-5E-UTP-PE)

13 CZK 11 CZK without VAT

In stock To send

Code: NPCSOL0008 PN: SXKD-5E-UTP-PE Warranty: 26 months
Výrobce: SOLARIX

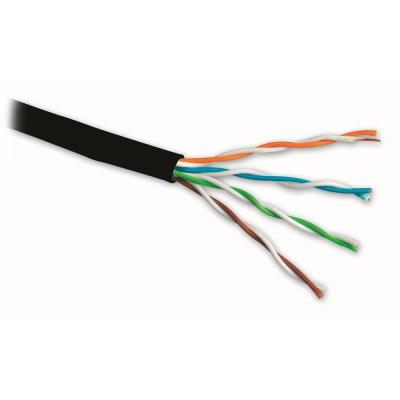

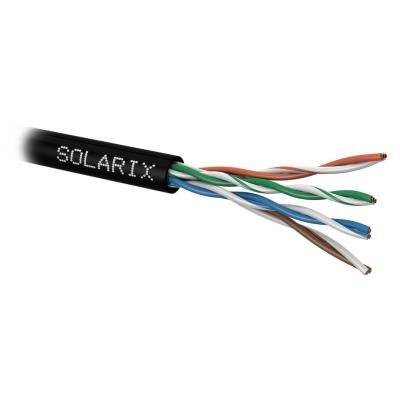

Solarix SXKD-5E-UTP-PE (1m) Cable (type "wire") SXKD-5E-UTP-PE is outdoor non shielding cable CAT5E with PE casing, for use in more demanding installations. Ideal for high speed protocols including Gigabit Ethernet. ... more
Solarix SXKD-5E-UTP-PE (1m)

Cable (type "wire") SXKD-5E-UTP-PE is outdoor non shielding cable CAT5E with PE casing, for use in more demanding installations. Ideal for high speed protocols including Gigabit Ethernet.

Cables complies standard EN 50575:2014, TIA/EIA 568, EN 50173 and ISO 11801 for Cat5e.

SPECIFICATIONS

Category: Cat5E
Supported Protocols: 1000Base-T and lower
Shielding: no
Bandwidth: 100 MHz
Wire type and size: Copper wire 0.50 mm ± 0.005 mm (AWG24)
Insulation: polyethylene (HDPE) 0,88 mm
Reaction to fire: Fca
Color: black (RAL 9005)
Cable diameter: 5,0 mm
Weight: 31 kg/km
NVP: 68 %
Propagation delay: 535 ns/100m
Delay skew: ≤45 ns/100m
Storage temperature: -20 °C to +70 °C
Operation temperature: -20 °C to +70 °C
Installation temperature: 0°C to 50 °C

Brand
Type specification :  Cable
Manufacturer :  SOLARIX
Technical specification
Category :  Cat5e
Conductor construction :  wire
Outdoor use :  yes
Shielded :  no
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
Physical properties
Cable length (m) :  1
Sheath material :  PE
