The UniFi AC Mesh AP have 2x2MIMO in 2,4GHz and 5GHz band to achive a maximal data thoughput up to 1167 Mbps. The UniFi AC Mesh AP is designed to discreetly integrate into any environment.
The UniFi AC Mesh AP includes adjustable dual-band omni antennas 2.4GHz (3dBi) and 5GHz (4dBi), and you have the option to use any 5 GHz omni antenna for spot-beam coverage in high-density locations with numerous APs and clients, like a conference hall.

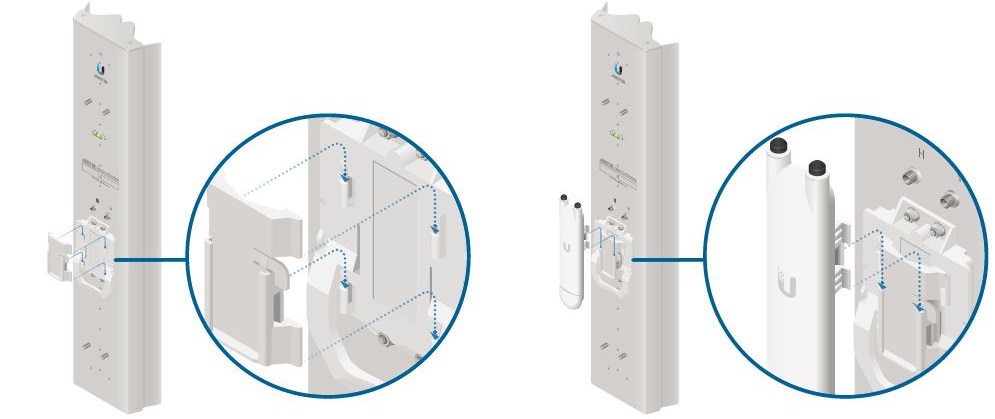

Use the included omni antennas, or use the included fast-mount adapter to install the AP on an optional connectorized antenna for expanded range coverage and customized pattern shaping.

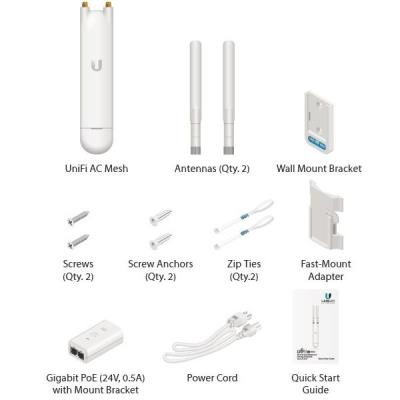

The UniFi AC Mesh AP can be mounted on a wall, pole, or fast-mount of a Ubiquiti high-gain antenna. (All accessories are included.)
The UniFi AC Mesh AP supports passive PoE 24V and active PoE 802.3af.
The package includes 24V GBit PoE injector.
SPECIFICATIONS

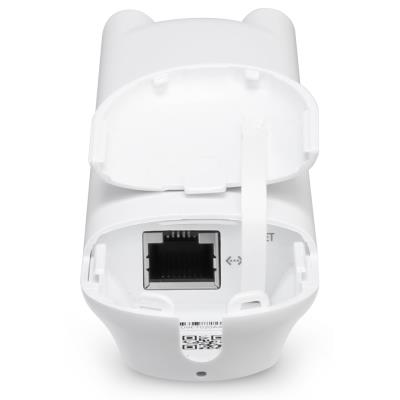

Interface: 1 x GbE RJ-45
Power Supply: 24 V, 0,5 A Gigabit PoE Adapter
Antenna Type: 2,4 GHz: 3 dBi, 5 GHz: 4 dBi
Wireless Standards: 802.11a/b/g/n/ac
Frequency: 2,4 GHz, 5 GHz
Tested ambient temperature: -30 °C to 70 °C
Dimensions: 353 x 46 x 34,4 mm
The configuration and management of UniFi devices is enabled by the UniFi Network application, which is pre-installed on UniFi OS consoles (UniFi Dream Machine, Dream Router, Dream Wall, Express, Cloud Gateway Ultra, etc.). An alternative is the freely available UniFi Network Server software, designed for installation on your own computer or server (Windows, MacOS, Linux). The UniFi Network Server software is continuously improved, and therefore we always recommend using the latest version, which can be downloaded from the Ubiquiti website in the Download section. More information about this product can also be found at Ubiquiti training.
Brand | |
Type specification : | Access point |
Manufacturer : | UBIQUITI |
Technical specification | |
Outdoor use : | yes |
Indoor use : | yes |
Max. operating temperature (°C) : | 70 |
Data Rate (Mbps) : | 1167 |
Min. operating temperature (°C) : | -30 |
Placement : | Pole |
Placement : | Wall |
Gain (dBi) : | 3 (2,4GHz), 4 (5GHz) |
Network interfaces | |
Wi-Fi frequency : | 2400 MHz/5000 MHz |
Gigabit LAN : | yes |
LAN : | yes |
Max. output power (dBm) : | 20 |
AP mode : | yes |
Bridge mode : | yes |
Client mode : | no |
Repeater mode : | no |
Router mode : | no |
Port Speed : | 1 Gb/s |
Standard Wi-Fi : | 802.11a/b/g/n/ac |
Encryption : | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
Wi-Fi : | yes |
WEP security : | yes |
WPA security : | yes |
WPA2 security : | yes |
Antenna | |
Antenna type : | internal |
Inputs and outputs | |
RJ-45 : | 1 |
Power supply | |
Input voltage (V) : | PoE 24V and PoE 802.3af |
Max. Voltage (PoE) (V) : | 57 |
Min. Voltage (PoE) (V) : | 44 |
PoE support : | yes |
Power consumption - typical (W) : | 8.5 |
Warranty | |
Warranty period EU (months) : | 26 |
Warranty period CRN (months) : | 26 |
Physical properties | |
Color : | white |
Depth (mm) : | 34.4 |
Weight (g) : | 152 |
Weight (kg) : | 0.152 |
Dimensions : | 353 × 46 × 34,4 mm |
Width (mm) : | 46 |
Weight category : | Lightweight - up to 2 kg |
Height (mm) : | 353 |
Additional equipment and features | |
Certification mark : | CE, FCC, IC |
