Mikrotik RB750r2 hEX lite 64 MB RAM, 850 MHz, 5x LAN, licence L4

Add recension
1 045 CZK 864 CZK without VAT

In stock To send

Code: NABMKR1064 PN: RB750r2 Warranty: 26 months
Výrobce: MIKROTIK
MikroTik hEX lite The MikroTik RB750r2, part of the hEX lite series, is a successor to the popular RouterBoard RB750. Compared to the previous model, it features a faster processor, an updated BIOS version, and comes with a... more
Count:
Add to Cart

Favorites
Compare
Print
Send to friend

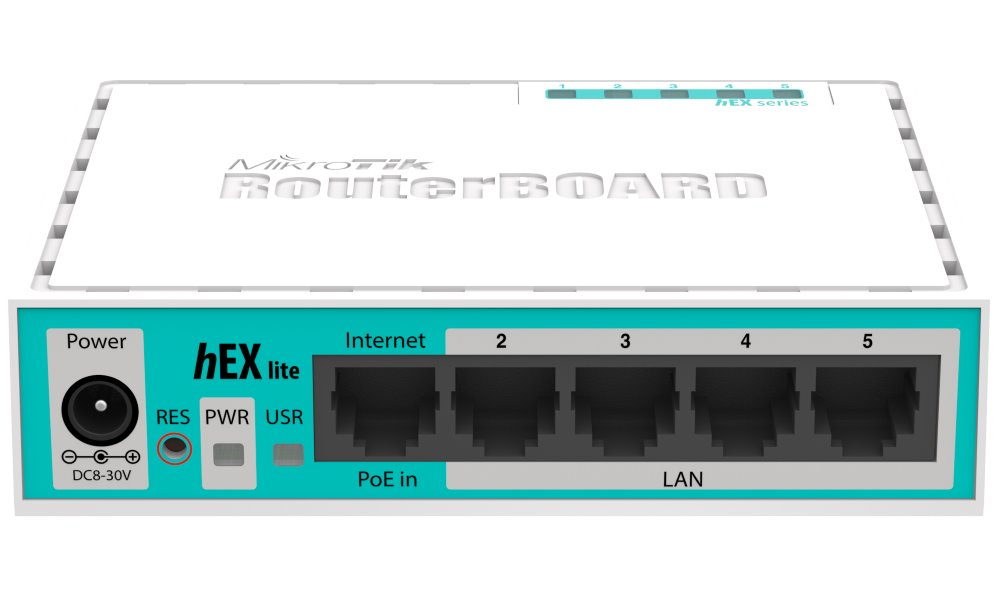

MikroTik hEX lite

The MikroTik RB750r2, part of the hEX lite series, is a successor to the popular RouterBoard RB750. Compared to the previous model, it features a faster processor, an updated BIOS version, and comes with a plastic case and power supply. A key advantage of this router is its low power consumption of just 2 W. It runs on the RouterOS L4 operating system, which includes all features, firewall, user access management, and more. The RouterBoard can be powered through a standard jack connector or via PoE. A high-quality power adapter is included in the package.

RouterOS MikroTik System Information

  • New to MikroTik RouterOS or need help with complex settings? You can use our support.
  • Learn how to set up and manage the RouterBoard at our training sessions.
  • Not sure which model to choose? Check out this comparison table for more info.
  • All RouterBoards use the same MikroTik RouterOS system.
  • All MikroTik RouterOS devices fully support IPv6, with firewall, Queues, NAT, and the CAPsMAN server with an L4 license.
  • MikroTik can be configured via a web interface, mobile app, or Winbox, available for download at mikrotik.com.
  • MikroTik offers Quick Set, a fast setup feature with multiple pre-configured profiles to choose from.

BASIC SPECIFICATIONS

Ports: 5× RJ-45 10/100 Ethernet
CPU Frequency: 850 MHz
RAM: 64 MB
Architecture: MIPS-BE
Chipset: QCA9533
Operating System: RouterOS L4
PoE Support: Yes, passive
Power Input: DC 6–30 V
Max Power Consumption: 2 W
Dimensions: 113 × 89 × 28 mm
Weight: 129 g
Color: White

Useful links and videos:

Declaration of Conformity + User Manual

Device Setup via Quick Set Guide

Mobile App for Device Control

Resetting Device, Reset Button Functions

RouterOS Recovery using Netinstall Utility

NAT Configuration

Load Balancing Configuration (Traffic Splitting Between Multiple Internet Connections)

Failover Setup (Switching to Backup Link in Case of Failure)

Multiple uplinks using PCC & Load balancing

Static NAT & RouterOS

MikroTips: Netinstall

Brand
Type specification :  Routerboard
Manufacturer :  MIKROTIK
Technical specification
DHCP :  yes
Firewall :  yes
IPSec :  yes
IPv6 support :  yes, full
PoE-in :  passive
PoE-out :  ne
Outdoor use :  no
Indoor use :  yes
Max. operating temperature (°C) :  70
Min. operating temperature (°C) :  -40
NAND (MB) :  64
Processor
Number of Cores :  1
Processor :  Atheros QCA9533, 850 MHz
Memory
Memory size (MB) :  64
Display
Display :  no
Communication
3G support :  no
4G/LTE support :  no
5G support :  no
Network interfaces
Gigabit LAN :  no
LAN :  yes
Port Speed :  100 Mb/s
Wi-Fi :  no
Inputs and outputs
RJ-45 :  5
Interface :  LAN
RS-232 port :  no
Power supply
Max. Voltage (jack) (V) :  30
Max. Voltage (PoE) (V) :  30
Min. Voltage (jack) (V) :  6
Min. Voltage (PoE) (V) :  6
PoE support :  yes
Power consumption - typical (W) :  2
Operating system
License :  L4
Operating system :  MikroTik RouterOS
Warranty
Warranty period EU (months) :  24
Warranty period CRN (months) :  24
Support
SIM slot :  no
Security
Default IP :  192.168.88.1
Default username :  admin
Physical properties
Color :  white
Depth (mm) :  89
Weight (g) :  129
Dimensions :  113 × 89 × 28 mm
Width (mm) :  113
Weight category :  Lightweight - up to 2 kg
Height (mm) :  28
Additional equipment and features
LED indication :  yes
Certification mark :  CE, EAC, ROHS
